La Croisée 3920.000 Brown Sliding Door Carriage per piece

La Croisée 3920.000 Brown Sliding...

Estimated delivery date :  Tuesday 7 April
€39.06 HT
In stock

Ref : FGT-165802

Variantes

Croisée DS 3924 Sliding Door Carriage / pc Croisée DS 3924 Sliding Door Carriage / pc Deceuninck Sliding Patio Door Bogie Carriers / pc Deceuninck Sliding Patio Door Bogie Carriers / pc La Croisée DS 4044 Sliding Door Trolley / piece La Croisée DS 4044 Sliding Door Trolley / piece
Quantity

Add to your shopping List

You must be logged


Description

Product

The Chariots la croisée 3920.000 brown is a high-performance hardware component designed for precise and adjustable support in sliding frame systems, suitable for residential or commercial installations.

Specifications

  • Adjustable bogie carriage allows up to 5 mm adaptation for optimal alignment
  • Body is constructed from lightweight aluminium; cage, axles, and screws are stainless steel for enhanced resistance to corrosion
  • Features a clip and adjustable mounting bracket in durable polyacetal
  • PTCA roller, available in 30 mm or 35 mm diameter, with needle bearings for smooth movement
  • Engineered for robust, long-term operation in demanding environments

Usage

Install the carriage by fixing it to the sliding frame using the adjustable bracket. Fine-tune the carriage position for smooth frame movement. Select the appropriate roller diameter as required by your installation. Maintenance involves regular inspection and minimal adjustment as needed.

FAQ

  1. What sliding frame types is this carriage compatible with?
    The carriage is designed for use with a variety of sliding frame systems in both residential and commercial settings.

  2. How much adjustment does the bogie carriage provide?
    It allows up to 5 mm of adjustment for precise alignment within the frame assembly.

  3. What materials are used in the construction?
    It features an aluminium body, stainless steel for the cage, axles, and screws, polyacetal clips and brackets, and a PTCA roller.

  4. Can I choose the roller size?
    Yes, you can select between a 30 mm or 35 mm PTCA roller, depending on your application needs.

  5. Is this carriage resistant to corrosion or wear?
    Yes, the use of aluminium and stainless steel components ensures high resistance to corrosion and wear, making it suitable for long-term use.

mvm-dt-2025-07-07

See more

Product Details

Brand Crois

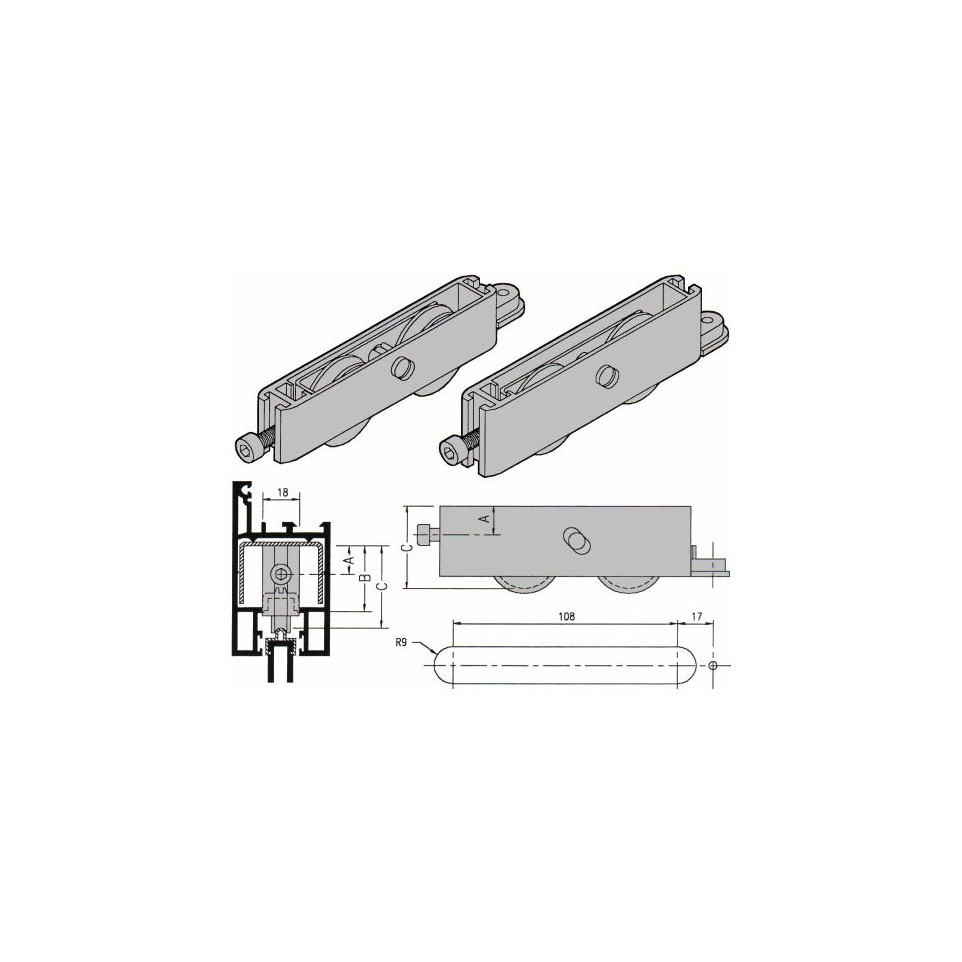

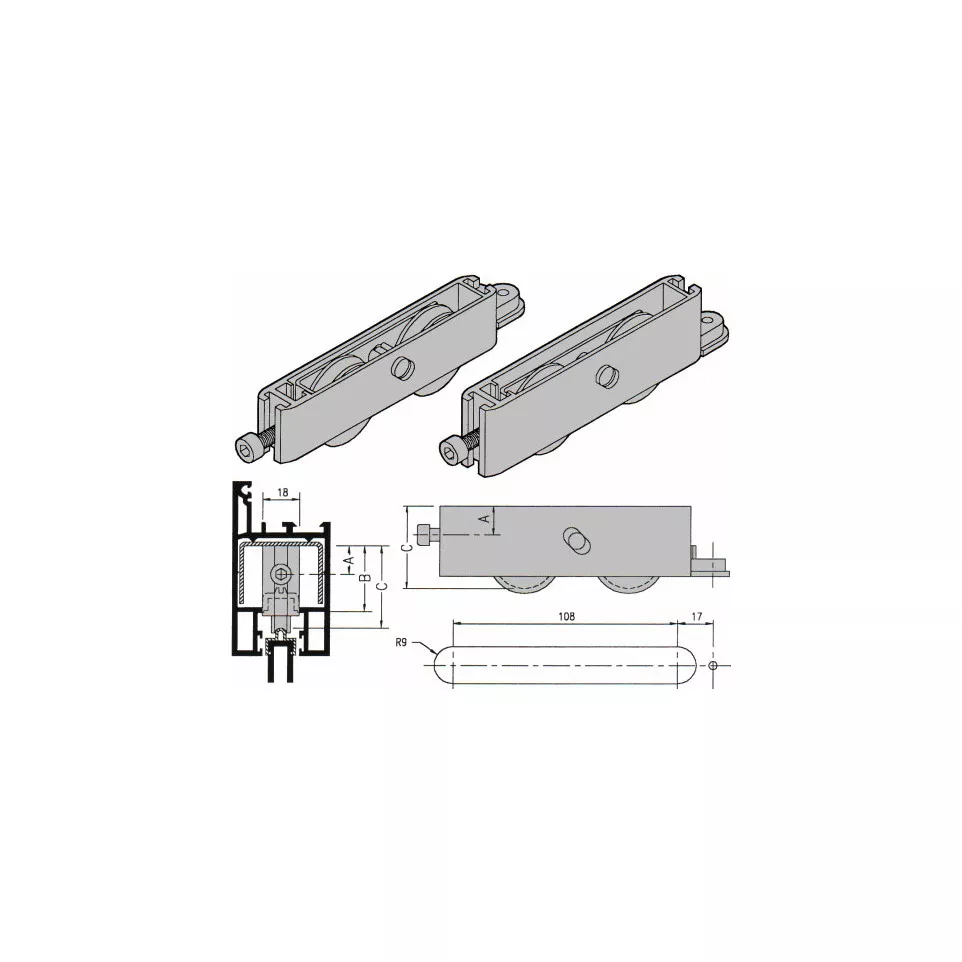

A x B x C (mm) 30 x 34 x 40
FGT-165802
New
