Monin Zinc-Plated Steel Butt Hinge 140x80 mm Ø15.5 Right / pc
€6.00
In stock
Usage

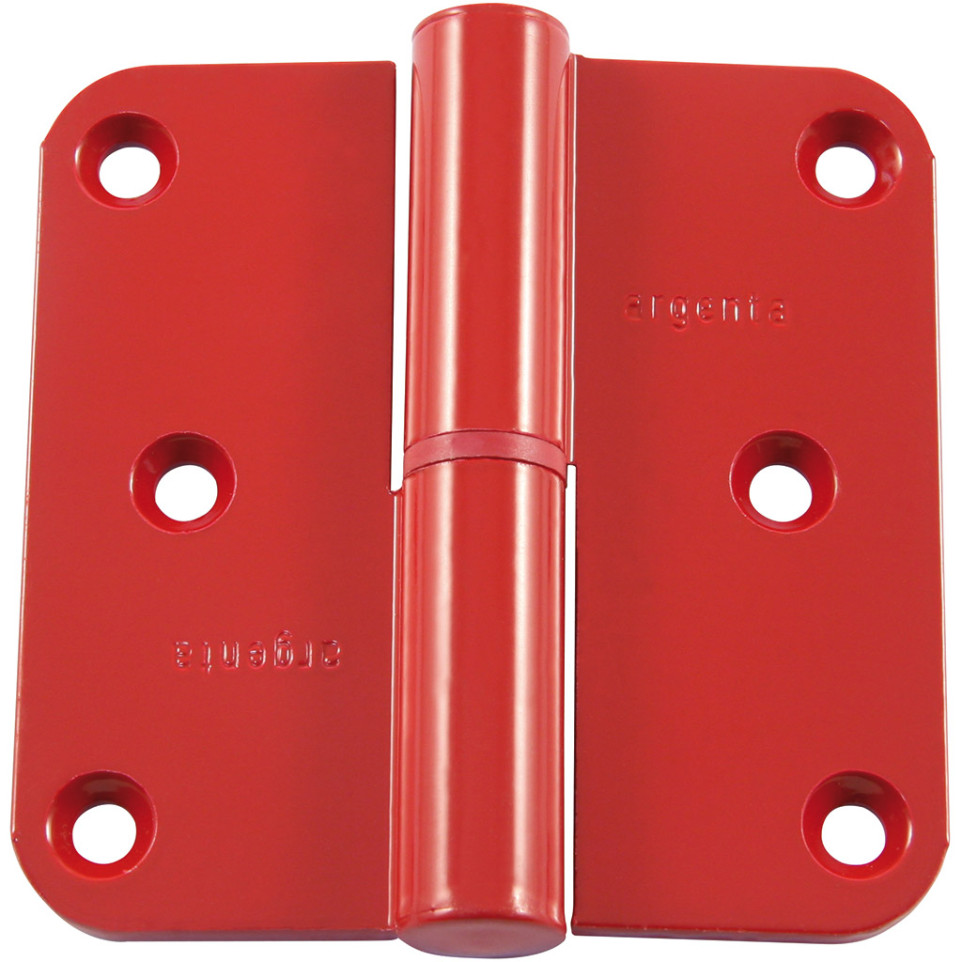

The Paumelle alu Argenta 80x80 A droite in red RAL 3003 is designed for securely mounting right-sided doors in residential or commercial environments, providing reliable pivot action for consistent daily use.
Advantages
- Robust aluminum construction ensures durability and corrosion resistance.
- Fire resistance certified to RF30 (NBN 713.020:1968, EN 1634-1:2000) for added safety.
- Sleek finish in RAL 3003 red offers a distinctive aesthetic match for modern interiors.
- Nylon-coated steel pin provides smooth, silent operation and minimizes wear.
- Available as a right-handed model to suit specific installation needs; note that left/right conventions may vary by region[9][5].
Specifications
- Material: Aluminum hinge with galvanized steel pin and nylon sleeve of matching color[9].
- Finish: Powder-coated in RAL 3003 red; other colors available on request[9].

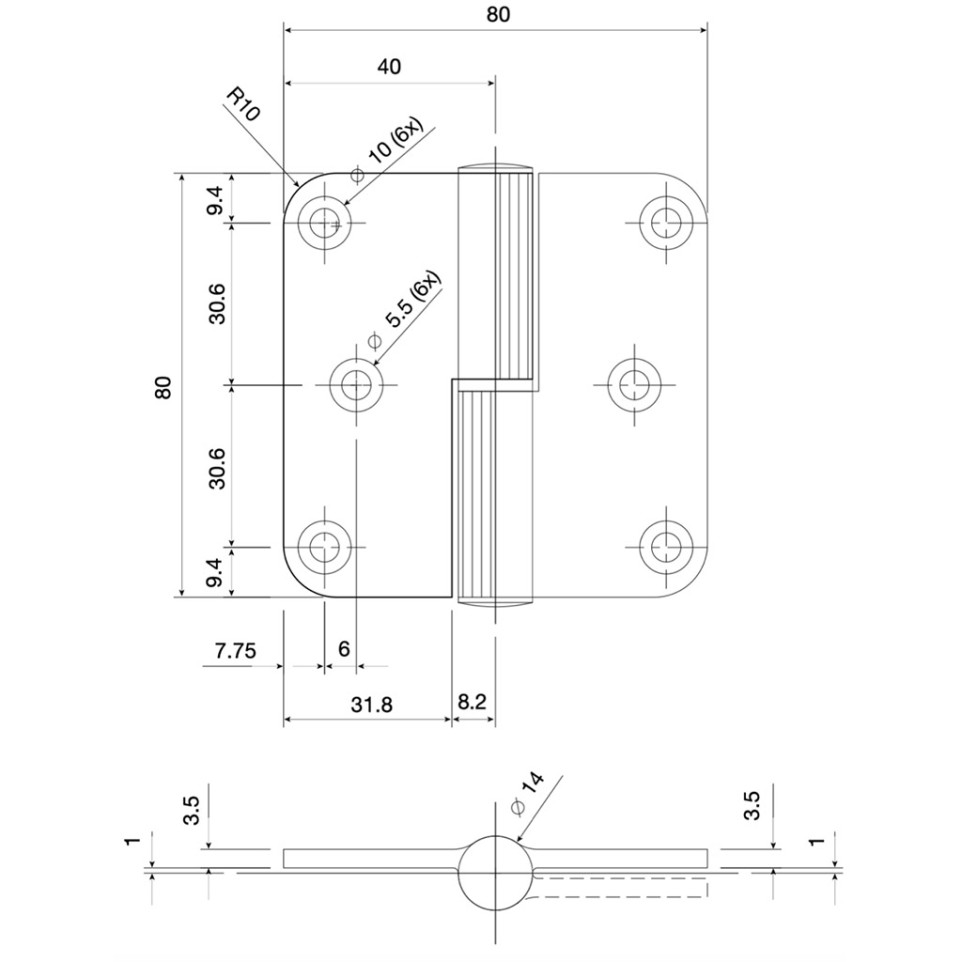

- Total dimensions: width 80 mm × height 80 mm × thickness 3.5 mm (closed version)[9].
- Knot diameter: Ø14 mm; closed leaf width: approx. 31.8 mm[9].
- Fire door suitability with RF30 certification per European standards NBN 713.020/EN 1634-1[9][5].
How it works
This hinge mounts onto the frame and door using compatible screws, allowing the door to pivot smoothly on the built-in steel pin encased in a nylon bushing. Its robust design supports stable alignment and long-lasting performance even with frequent opening and closing cycles[9][5].
