Black Plastic-Coated Hinges Monin 110x80 Ø15.5 Right / pc
€6.38
In stock
Usage

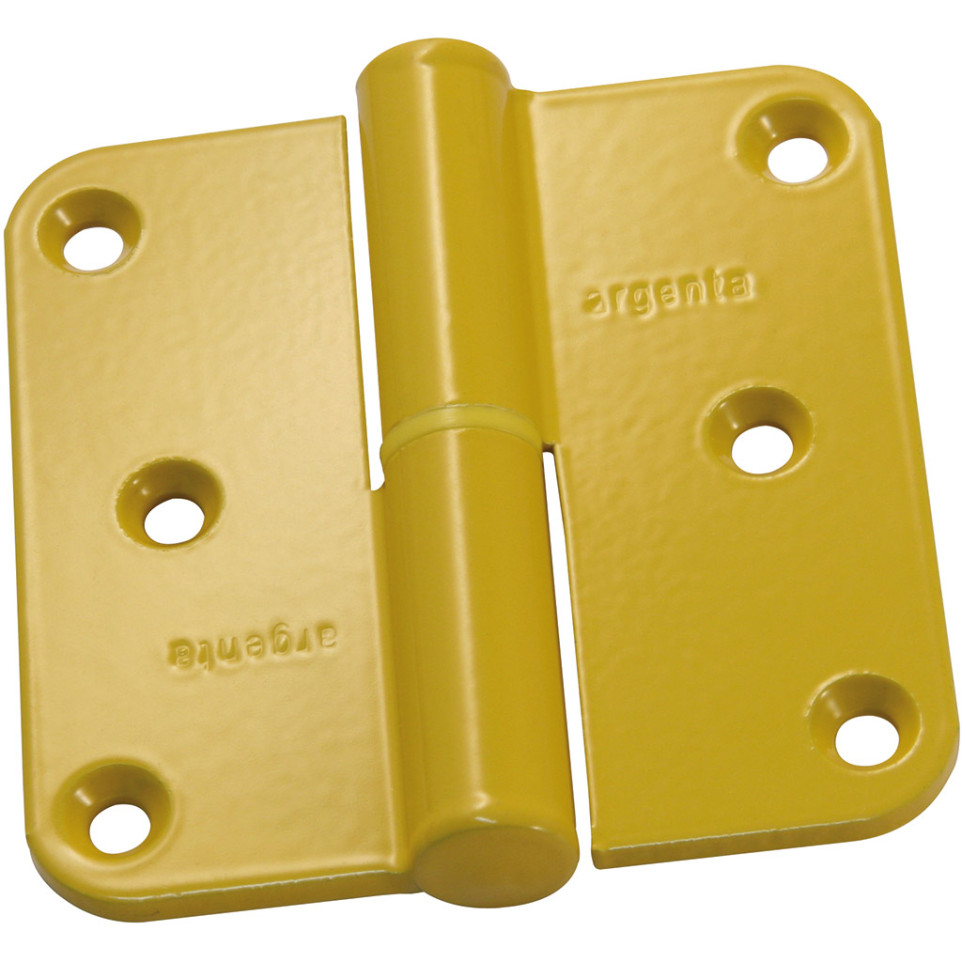

The Paumelle alu Argenta 80x80 A jaune RAL 1004 gauche is an aluminum hinge designed for left-side door applications in residential, commercial, or public buildings where reliable and durable pivoting hardware is required.
Advantages
- Constructed from lightweight yet robust aluminum for easy handling and long-lasting support.
- Finished in yellow (RAL 1004) to match specific architectural or decorative requirements.
- Certified fire resistance up to RF30 according to standard NBN 713.020:1968 and EN 1634-1:2000, enhancing safety in compliance-driven installations.
- Equipped with a galvanized steel pin and nylon sleeve for smooth movement and increased wear resistance.
- Available as a handed model (left), reducing installation errors but requiring attention during specification.
Specifications
- Material: High-quality aluminum body; steel pin with color-matching nylon sleeve for reduced friction and noise.
- Sustainable design: Complies with fire-resistance certification RF30 per NBN 713.020:1968 / EN1634-1:2000 standards for use on fire-rated doors.

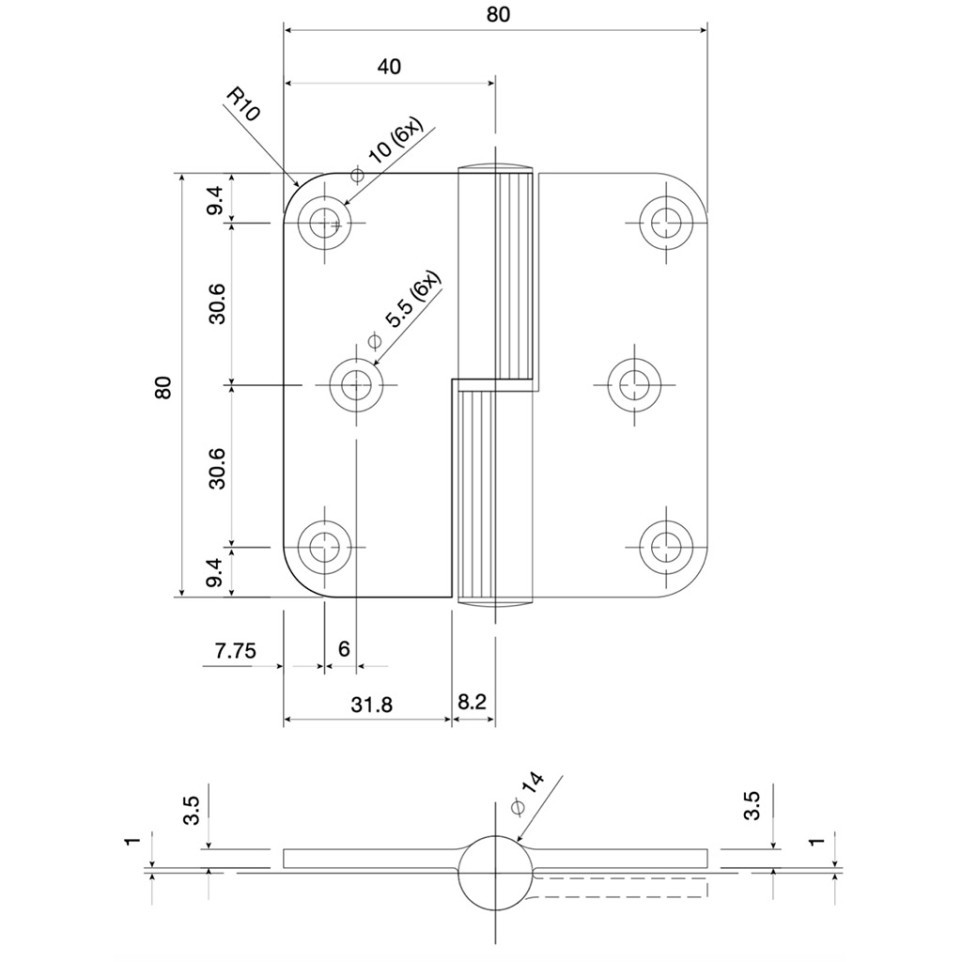

- Main dimensions: Height – 80 mm; width – 80 mm; closed barrel diameter – Ø14 mm; blade thickness – 3.5 mm; maximum closed width –31.8 mm.
- Differentiating feature: Finished in yellow RAL 1004, available as a left-hand model for precise architectural integration.
How it works
The hinge is mounted between the door leaf and frame using suitable screws, allowing the door to pivot smoothly on its vertical axis thanks to its precision-machined pin enclosed by a wear-resistant nylon sleeve. Proper selection of the left-hand version ensures correct operation based on opening direction.
