Usage

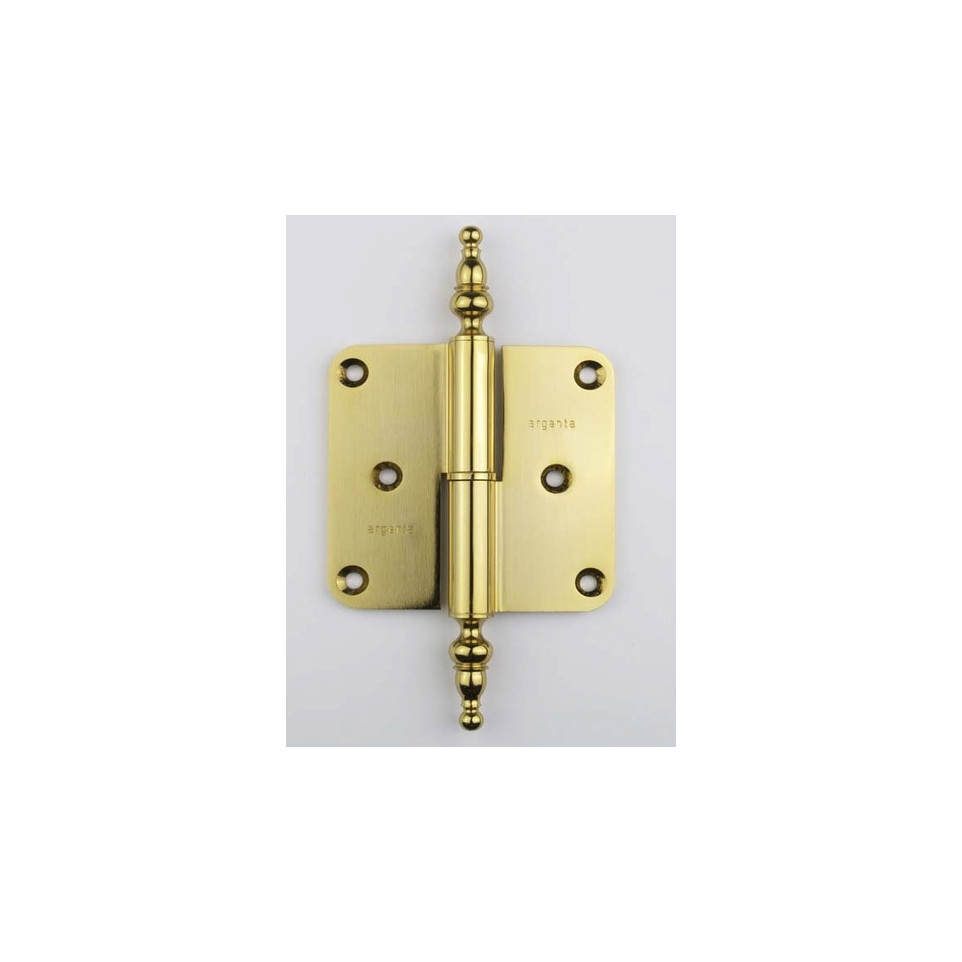

The Paumelle alu Argenta 80x80 A laitonné poli gauche is designed for left-hand door installations in residential, commercial, or public buildings. It serves as a robust and visually polished hinge to securely mount medium-weight interior or fire doors.
Advantages
- Made from durable aluminum for reliable corrosion resistance and a lightweight structure.
- Laitonné poli (polished brass) finish provides an elegant look suitable for contemporary or classic interiors.
- Features closed blades with rounded corners, ensuring discreet integration into the door frame and enhanced safety.
- Equipped with a hardened steel pin and nylon sleeve to minimize friction and reduce wear over time.
- Bears an RF30 fire-resistance certification according to NBN 713.020:1968 / EN 1634-1:2000 standards, suitable for use on certified fire doors[5][9].
Specifications
- Design: Closed-blade hinge (modele fermé), with rounded corners; left-hand model; standard mortise template fits most door frames[5][9].
- Materials: Hinge body in aluminum; pin in galvanized steel (with optional stainless steel); nylon anti-friction sleeve matched to hinge color[5][9].
- Lifespan & Certifications: Fire-resistance RF30 as per BENOR certificate (NBN 713.020:1968, EN 1634-1:2000). Designed for high-frequency opening cycles without performance loss[5][9].

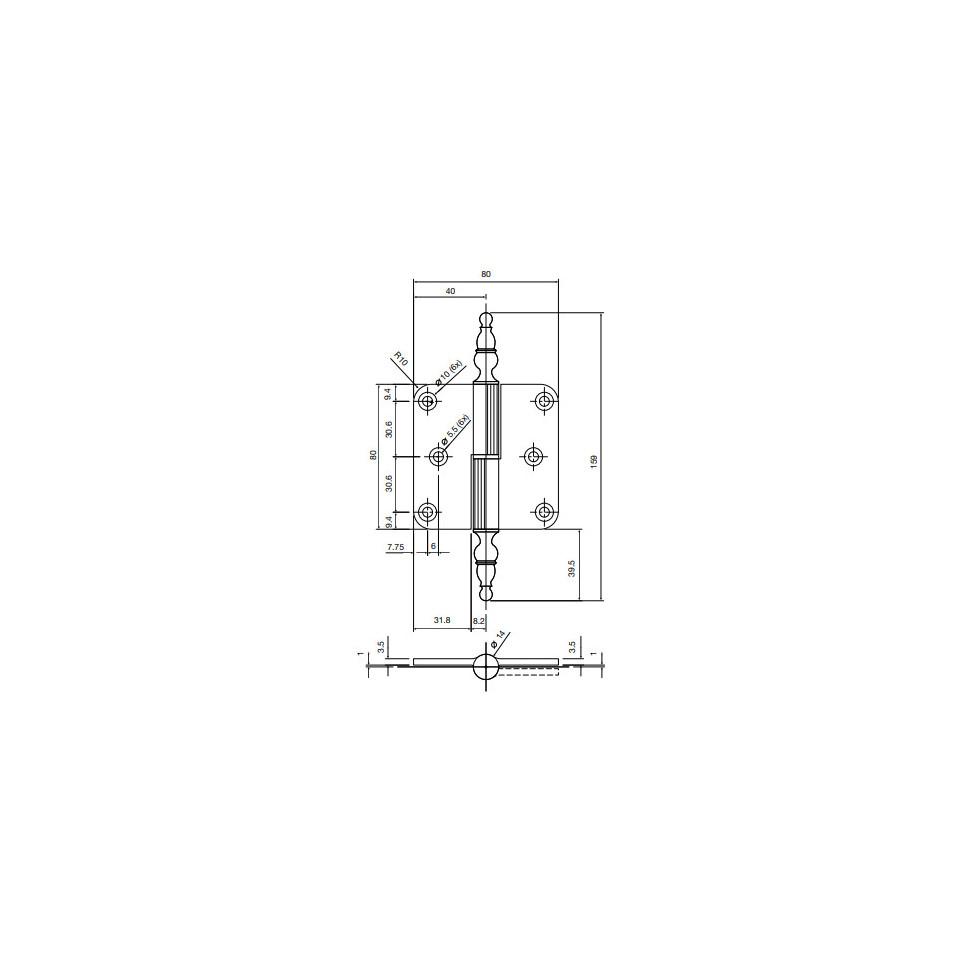

- Main Dimensions: Height: 80 mm; Width: 80 mm; Pin diameter: approx. Ø14 mm; Blade thickness: approx. 3.5 mm when closed[5]. Maximum recommended load is approximately 10 kg per piece when correctly installed on standard wood or metal doors[9].
How it works
The hinge is mortised into both the door leaf and frame using standardized templates. The robust aluminum body pivots around the sealed steel pin within a nylon sleeve, ensuring smooth opening and closing even after frequent use while maintaining the necessary load capacity and fire safety compliance.
