Black Plastic-Coated Hinges Monin 110x80 Ø15.5 Right / pc
€6.38
In stock
Usage

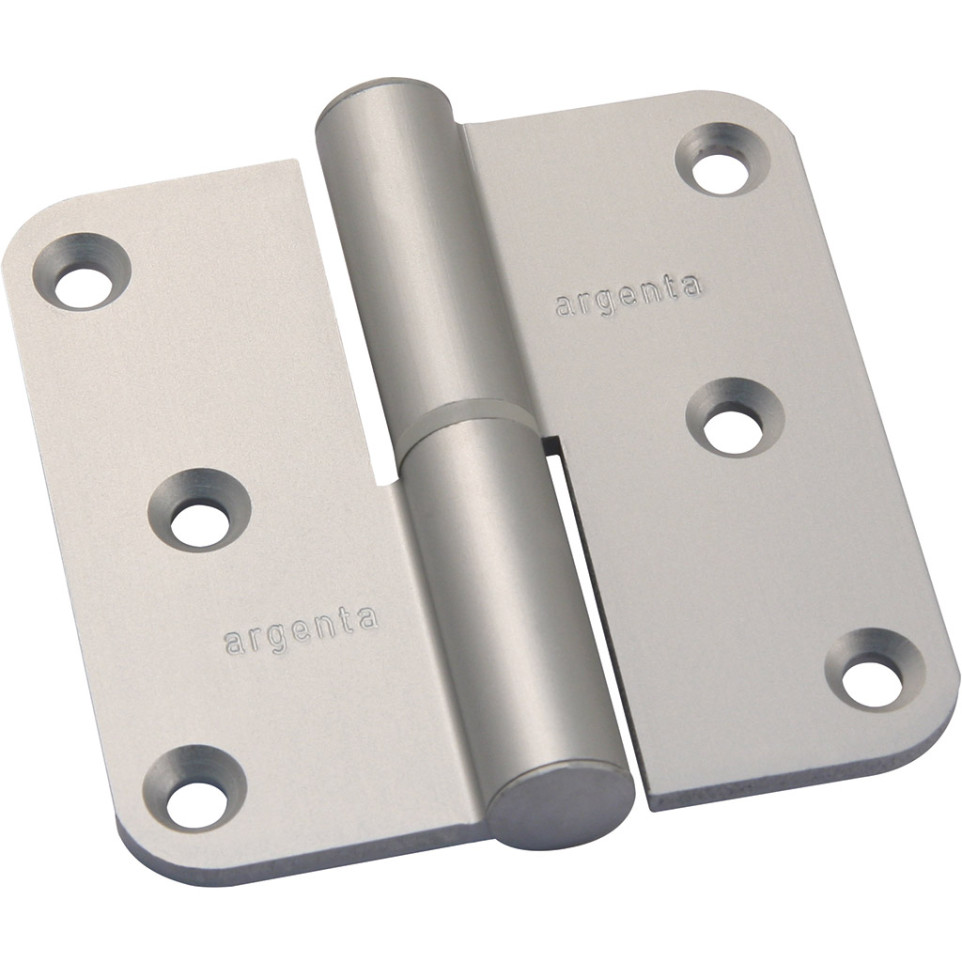

The Paumelle alu ARLU 80x80 A argent gauche is designed for mounting left-opening wooden doors in residential, commercial, or public buildings. It ensures secure and stable attachment of door leaves to frames.
Advantages
- Lightweight yet strong aluminum construction minimizes overall door weight without sacrificing durability.
- Fire resistance certified to RF 30 BENOR standards enhances safety for compliant installations.
- Smooth operation with a steel pin and nylon anti-grip sleeve reduces wear and noise during opening and closing.
- Corners are rounded on the hinge plates, reducing the risk of snagging during installation or use.
- Supports up to 10 kg per hinge, suitable for most interior doors; heavier or exterior applications may require additional hinges.[1][2][5]
Specifications
- Design: Closed-leaf hinge made from anodized aluminum with coordinated silver finish; features a knuckle diameter of 14 mm and plate corners rounded for aesthetics and safety.[1][4]
- Materials & Technology: Aluminum plates with bichromated drawn steel pin; equipped with an anti-friction nylon sleeve matching the color of the hinge.[1][5]

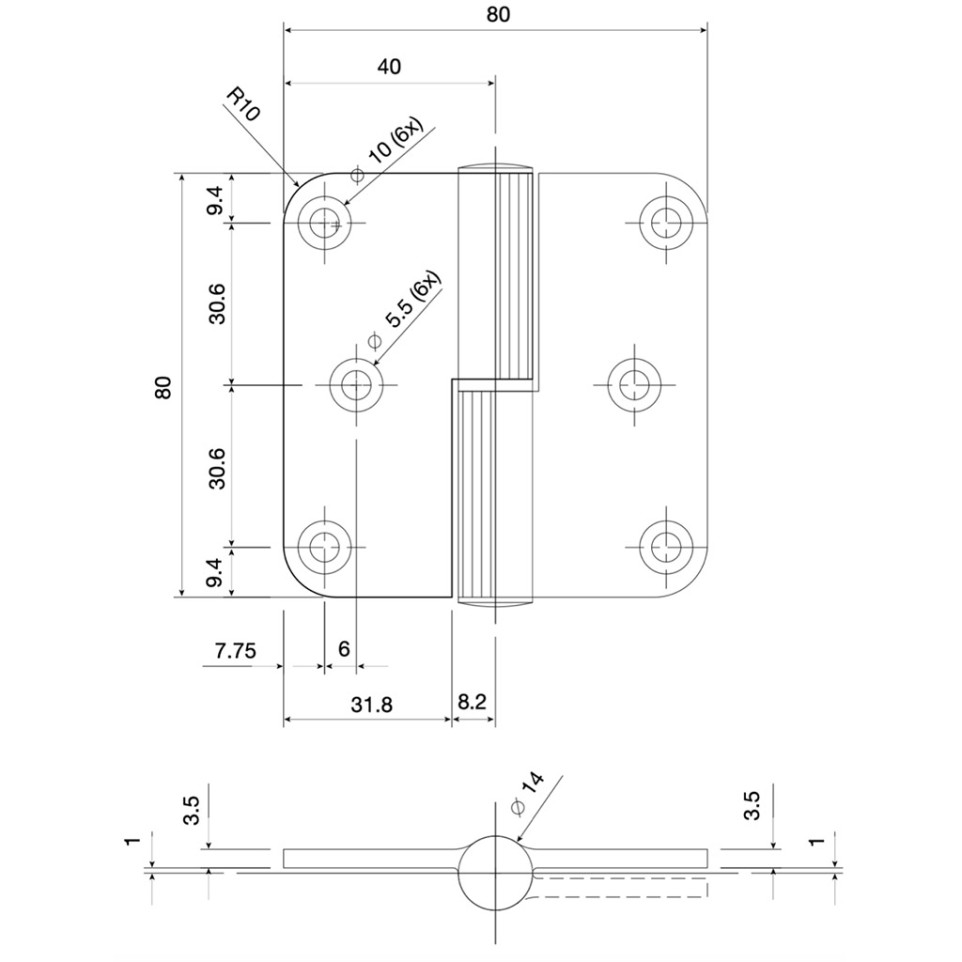

- Sizing & Performance: Dimensions: width: 80 mm x height: 80 mm x thickness: approx. 3.5 mm; supports up to 10 kg per piece; compatible screw diameter: 4.5 mm.[1][4][5]
- Awards & Certificates: Fire resistance RF 30 (BENOR) certification according to NBN 713.020/1968, EN 1634-1.[1][5]
How it works
This butt-style paumelle hinge is mortised into both door leaf and frame on left-opening (DIN R) doors. The integrated steel pin allows smooth pivoting while a nylon sleeve reduces friction, ensuring reliable daily use in compliance with fire safety regulations.[1][3]
