About this article
Usefulness
The Plaque de montage K800 STAFFA pour ATOMIKA K8000 / 2pce is designed for concealed door hinges, providing a flush-to-the-wall door application. It is suitable for doors with a minimum thickness of 38mm and can support a maximum load capacity of 60kg with two hinges.
Advantages
- Resistant steel construction for durability.
- Three independent adjustments for precise fitting.
- Wear-resistant bushings requiring no lubrication or maintenance.
- Suitable for wood, aluminum, and steel frames.
- Fire-resistant with an EI30 rating (30 minutes) and UL rating (20 minutes).
- Tested with 200,000 cycles and 240 hours of spray salt resistance.
- Optional kit cover with screws.
Specificities
- Hinge material: Steel.
- Hinge casing width on door side: 31mm.
- K distance: Maximum 7mm.
- Hinge centered on the door leaf: Maximum 45mm.
- Opening angle: 180°.
- Number of rotation axes: 7.
Operation

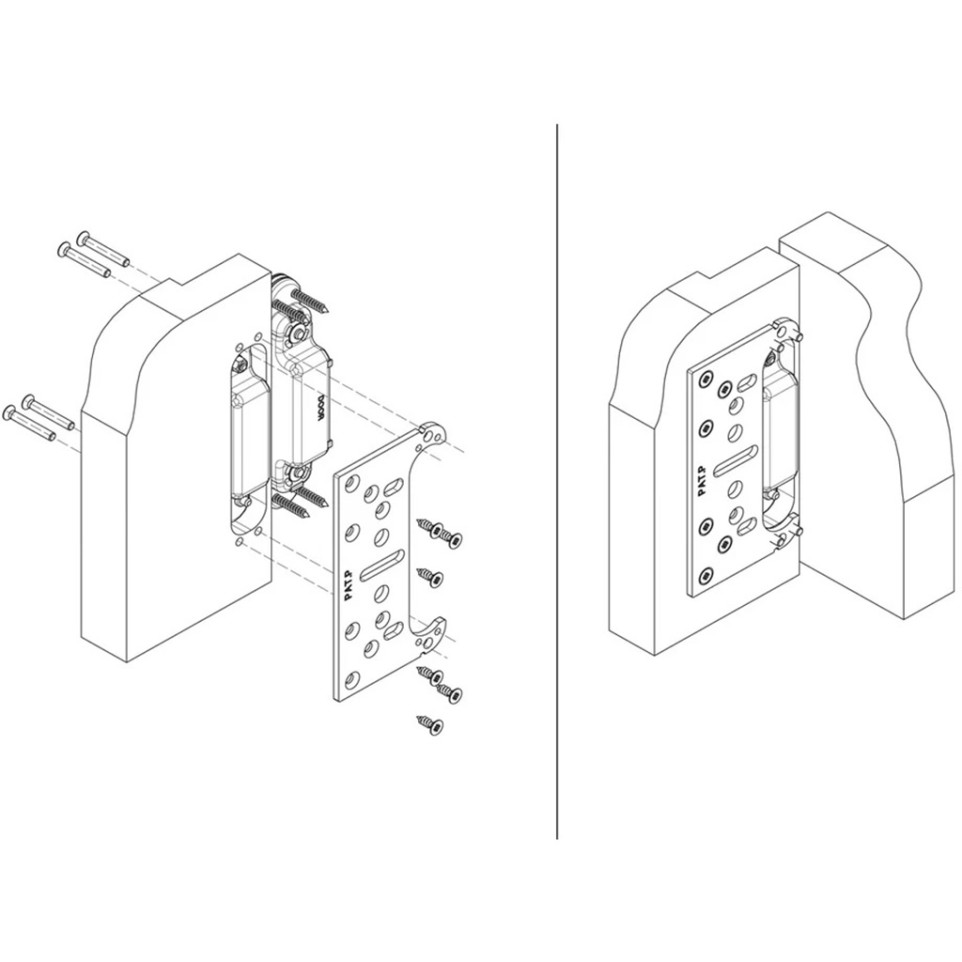

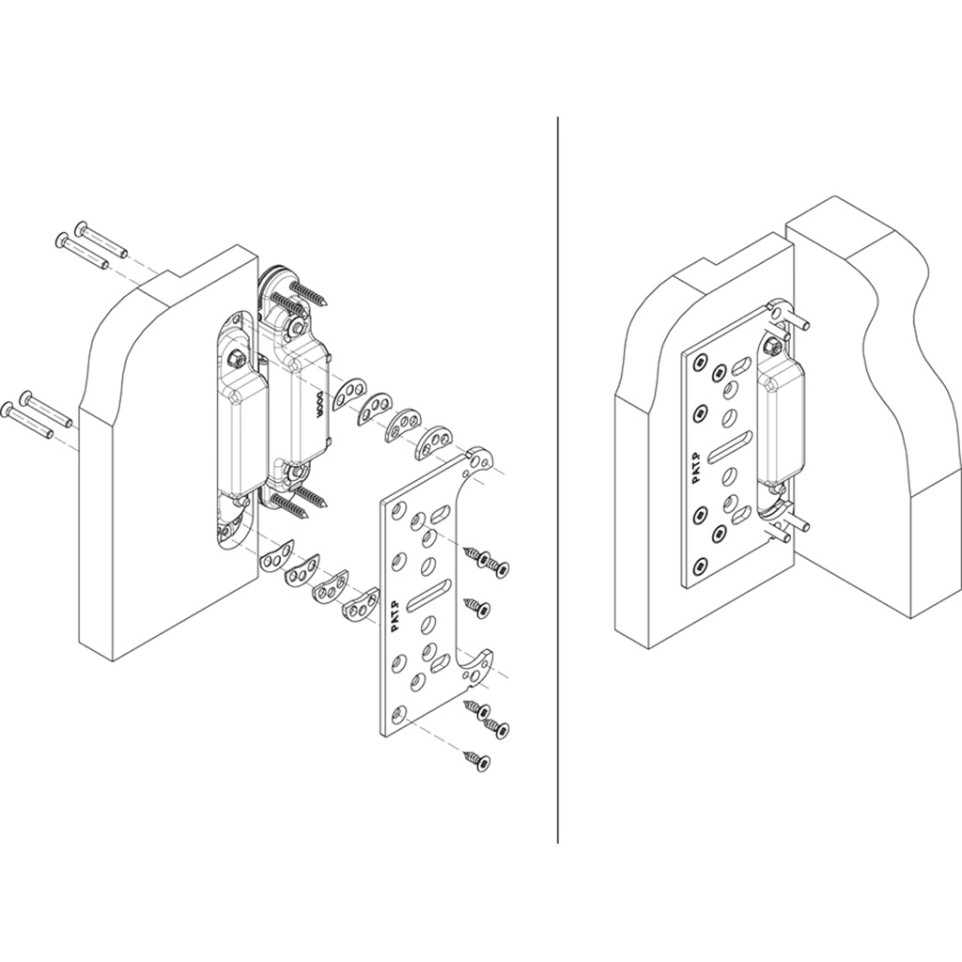

The Plaque de montage K800 STAFFA pour ATOMIKA K8000 / 2pce is easy to install. Simply attach the hinges to the door and frame, adjust the three independent settings for a flush fit, and secure with the provided screws. This ensures a sturdy and durable door installation.
