Male Lifting Ring M12 / PCE
€13.58
In stock
Product

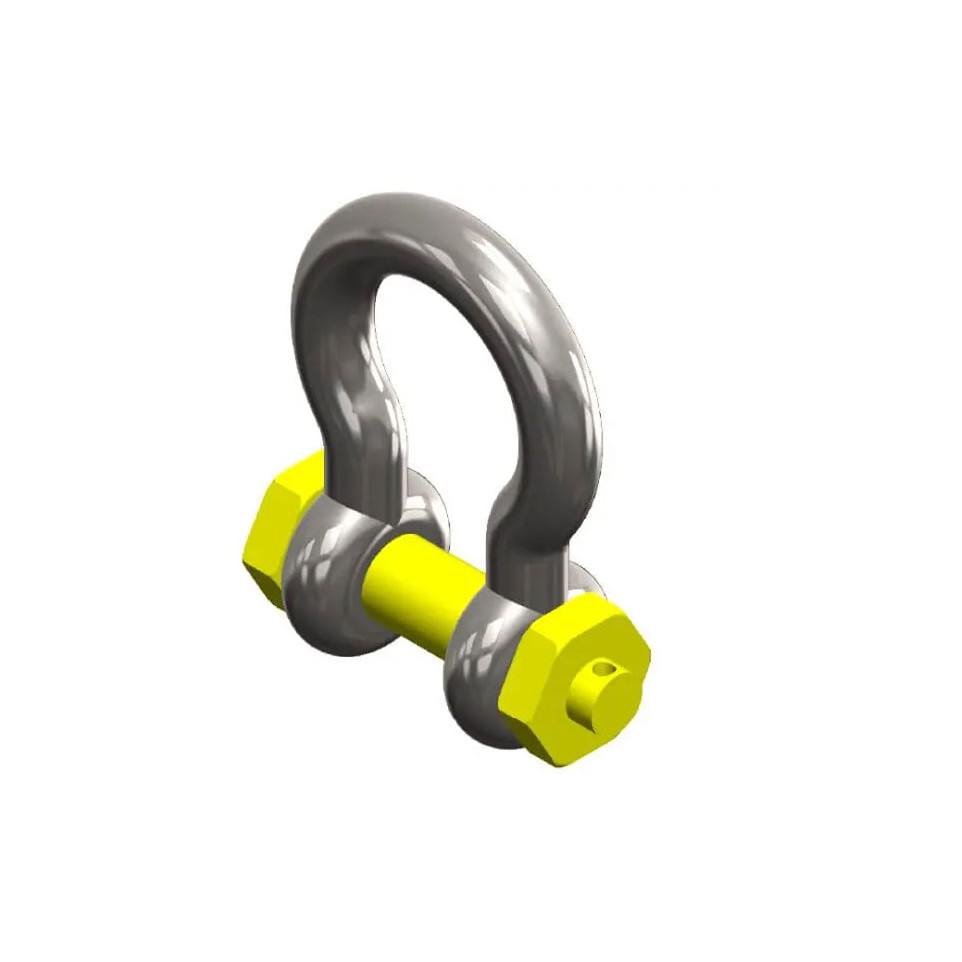

The Manille de levage lyre HR boulonnée et goupillée is a high-strength bow shackle designed for lifting and rigging operations, supporting loads up to 4750 kg. Ideal for industrial, construction, and transport tasks requiring secure, reliable connections.
Specifications
- Manufactured from Grade 80 high-resistance alloy steel, with a hot-dip galvanized finish for enhanced corrosion protection.
- Features a bolt and cotter pin (boulonnée et goupillée) locking system for maximum locking security during lifting.
- Complies with CE European standards and US FED SPEC RR-C-271, with a safety factor of 6.
- Available in multiple dimensions to match various lifting needs.
- Certified and marked with all mandatory specifications for traceability.
Usage
Attach the bow shackle to slings, chains, or ropes to create a secure connection point for lifting heavy equipment or materials. The bolt and cotter pin system ensures the shackle remains locked during use, making it suitable for vertical and horizontal lifting, towing, or load securing.
FAQ
-
What is the maximum load capacity of this shackle?
The maximum working load limit is 4750 kg per piece. -
What material is the shackle made from?
It is made from Grade 80 high-resistance alloy steel with a galvanized finish. -
What type of locking mechanism does it feature?
It uses a bolt with a nut and cotter pin to secure the closure, providing high safety during lifting operations. -
Can the shackle be used outdoors?
Yes, its galvanized finish provides resistance to corrosion, making it suitable for outdoor and industrial environments. -
What standards does the shackle meet?
It complies with European CE standards and US FED SPEC RR-C-271 for lifting accessories.
