SoftClose Damper for Hawa Junior 80 Sliding Doors per piece

SoftClose Damper for Hawa Junior 80 Sliding Doors per piece
SoftClose Damper for Hawa Junior 80 Sliding Doors per piece
SoftClose Damper for Hawa Junior 80...
SoftClose Damper for Hawa Junior 80...

Estimated delivery date :  Monday 29 June
€112.82 HT

Ref : FGT-173400

Variantes

Bottom Guide Rail for Hawa Junior 80 and 120 Sliding Doors 1.3 m per piece Bottom Guide Rail for Hawa Junior 80 and 120 Sliding Doors 1.3 m per piece Hawa Junior 80 Top Running Track for Sliding Doors 2m per piece Hawa Junior 80 Top Running Track for Sliding Doors 2m per piece Hawa Junior 80 Top Running Track for Sliding Doors 6m per piece Hawa Junior 80 Top Running Track for Sliding Doors 6m per piece Hawa Junior 80 Z Sliding Door Fitting Set with Stop and Guide, up to 80 kg per piece Hawa Junior 80 Z Sliding Door Fitting Set with Stop and Guide, up to 80 kg per piece Self-Clamping T Floor Guide for Hawa Junior 80 and 120 Sliding Doors per piece Self-Clamping T Floor Guide for Hawa Junior 80 and 120 Sliding Doors per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

The Amortisseur SoftMove 80 is designed to gently decelerate and close sliding doors in internal spaces. It is suitable for both wooden and glass doors using the Hawa JUNIOR 80 sliding system.

Advantages

  • Ensures smooth, controlled closing of sliding doors with no spring-back effect.
  • Completely concealed within the upper running track for an unobtrusive appearance.
  • Compatible with single- or double-leaf configurations, supporting door weights up to 80 kg.
  • Long-lasting operation due to its robust hydraulic metal damper (Ø14 mm).
  • A minimum door width of only 690 mm is required for installation on one side, providing flexible application options.

Specifications

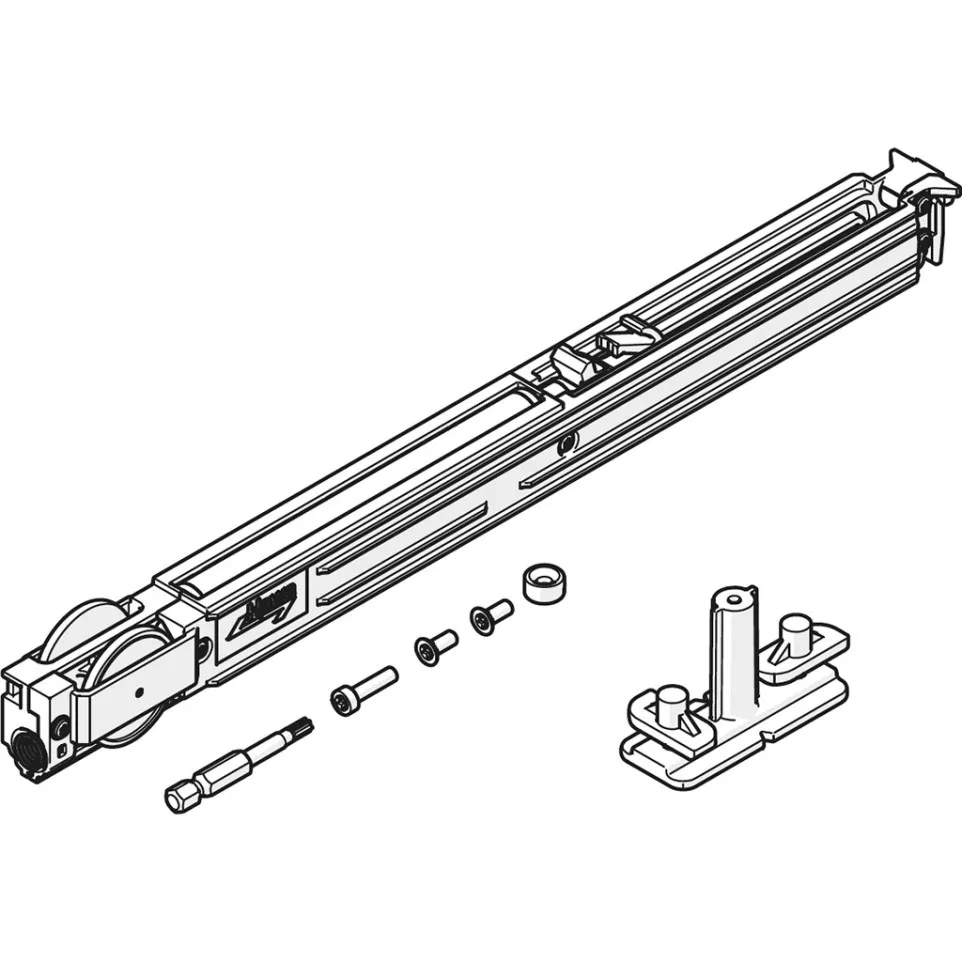

  • The mechanism features a high-quality hydraulic metal damper, housed in white plastic, integrated into the top track of Hawa JUNIOR 80 systems.
  • The system employs maintenance-free materials and meets durability expectations through continuous gentle operation over an extended lifecycle.[9][7]

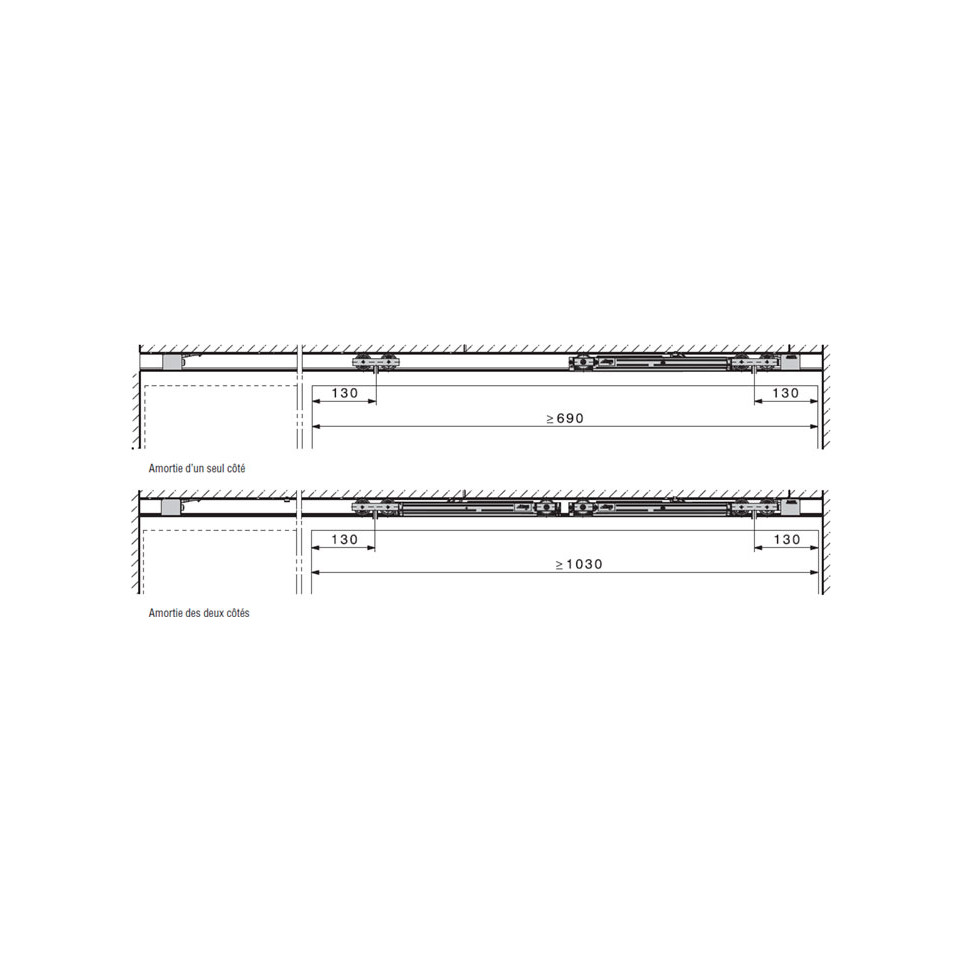

  • Supports doors weighing up to ≤80 kg (176 lbs) and with thicknesses ≥26 mm; minimum door widths: one-sided damping—690 mm, two-sided damping—1030 mm.[1][4][10]
  • Differentiates by being entirely invisible after installation and by its precise closing action without requiring additional maintenance.[5][7]

How it works

The SoftMove 80 mechanism mounts inside the upper track of a Hawa JUNIOR 80 sliding door. When a door approaches the end position, the integrated hydraulic damper cushions its movement and gently pulls it closed for safe, silent operation.[1][4]

See more

Product Details

Brand Hawa
Description A. amortisseur SoftMove 80
FGT-173400
