Slim LED Driver Power Supply 24V DC 150W IP67 / pc

Product

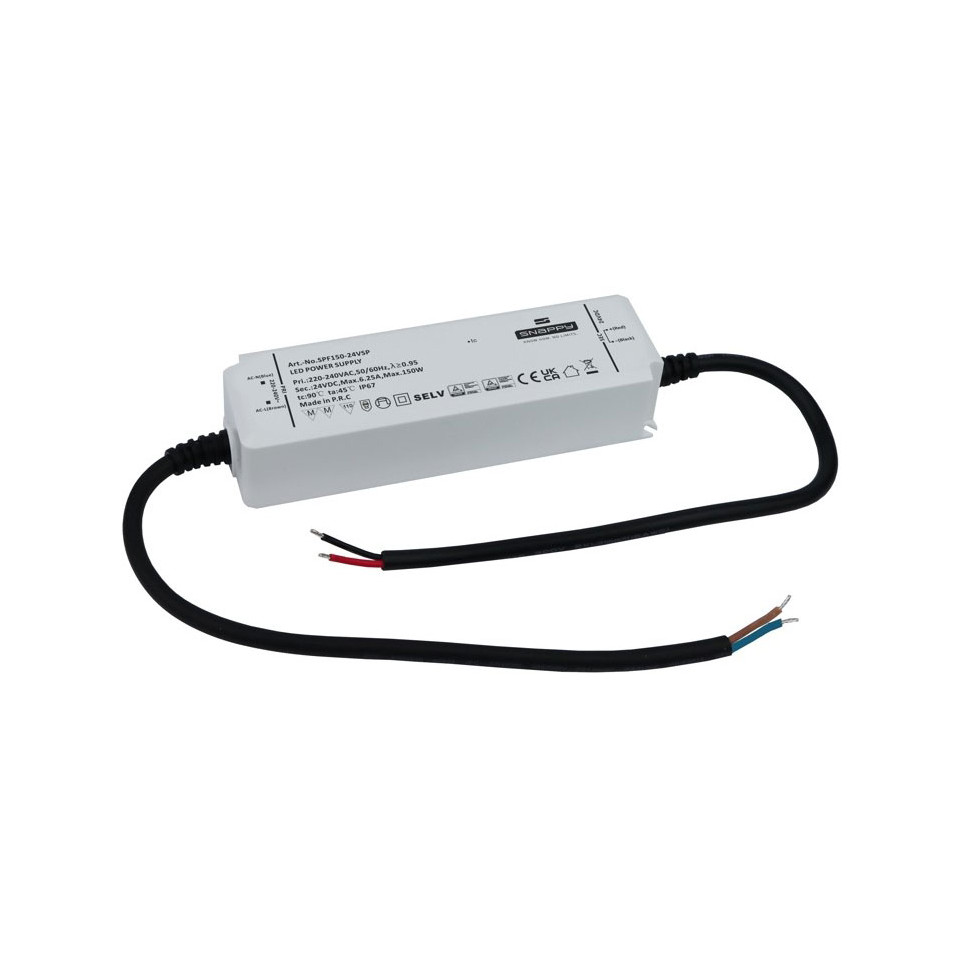

A slim, IP67-rated LED driver power supply delivering 24V DC at 150W, designed for powering LED lighting systems in both indoor and outdoor environments.

Specifications

• Compact white PVC housing measuring 158 x 33 x 48 mm
• Input voltage: 220–230V AC at 50 Hz; output voltage: 24V DC with a maximum power of 150W
• Pre-wired with 20 cm insulated input and output cables for straightforward installation
• Maximum operating temperature: 85°C
• IP67 waterproof rating, suitable for wet or outdoor environments
• TÜV certified, ensuring compliance with recognized safety and quality standards

Usage

Connect the pre-wired input cables to a 220–230V AC mains supply and the output cables to a compatible 24V DC LED strip or lighting system. The driver converts AC mains power to stable 24V DC output, supporting up to 150W of connected LED load.

FAQ

1. What is the output voltage and maximum power of this LED driver? — The driver outputs 24V DC with a maximum power capacity of 150W.
2. Is this LED driver suitable for outdoor use? — Yes, its IP67 rating means it is fully protected against dust and temporary water immersion, making it suitable for outdoor installations.
3. What input voltage does this driver require? — It requires a standard 220–230V AC mains supply at 50 Hz.
4. Does the driver come with cables pre-attached? — Yes, it includes 20 cm pre-wired insulated cables on both the input and output sides.
5. What certifications does this LED driver hold? — It carries TÜV certification, confirming it meets established electrical safety and performance standards.
