Product

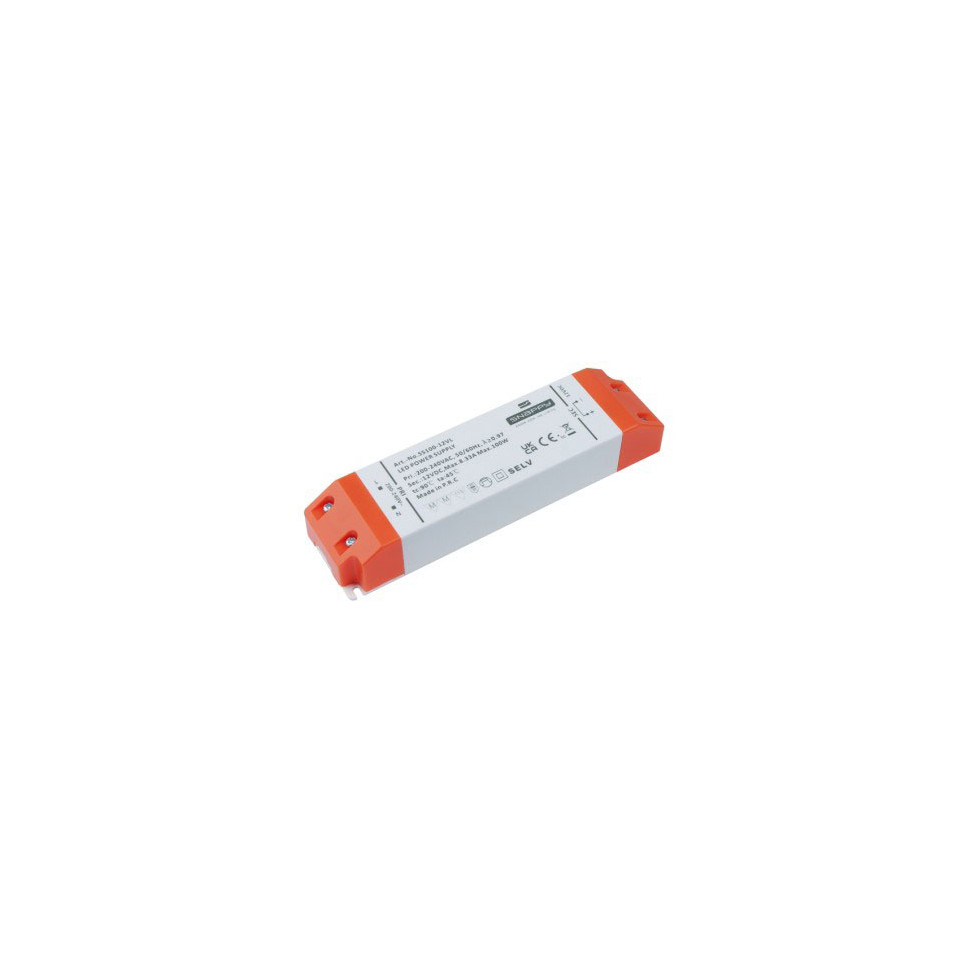

A slim, dimmable LED driver delivering 12V DC output at 100W, designed to power LED lighting systems with reliable, TÜV-certified performance in a compact PVC housing.
Specifications
- Dimensions: 201 x 63 x 31 mm — slim profile for discreet installation
- Input voltage: 220–230V AC ~ 50Hz | Output voltage: 12V DC
- Output power: 100W
- Material: PVC | Color: White
- Maximum operating temperature: 80°C
- Dimmable: Compatible with dimming systems for adjustable light output
- Certification: TÜV certified for electrical safety and reliability
- Connection: Input and output terminal blocks included — supplied without cabling
Usage
Connect the driver to a 220–230V AC mains supply via the input terminals, then wire LED strips or fixtures to the 12V DC output terminals. The dimmable function allows integration with compatible dimmer controls to adjust brightness levels as needed.
FAQ
-
Is this driver compatible with LED strips? Yes, it is designed to power 12V DC LED strips and fixtures up to a total load of 100W.
-
Does the driver come with cables? No, the unit is supplied without cabling. It features input and output terminal blocks for direct wiring on-site.
-
Can this driver be used with a dimmer switch? Yes, this driver is dimmable and can be paired with a compatible dimming system to adjust LED brightness.
-
What is the maximum operating temperature? The driver operates safely up to a maximum temperature of 80°C, making it suitable for enclosed or semi-enclosed installations.
-
What certifications does this driver hold? This LED driver is TÜV certified, confirming it meets recognized European safety and quality standards for electrical components.
