Usage
The Carton de base pour Primat-FL190 Blanc is designed for the installation of lift-open and lift-open-drop window fittings in timber, PVC, or aluminium frames. It supports secure and smooth opening or closing of fanlight windows in residential, commercial, or industrial buildings.
Advantages
- Accommodates glass weights up to 70 kg/m² with a maximum sash weight of 80 kg, ensuring reliable operation even for large windows.
- Features a three-point internal locking system that enhances airtightness and contact pressure according to heat insulation standards.
- Smooth lever operation is achieved via ergonomic grips and anti-dirt profiling in the stays for long-lasting performance.
- Covers only require minimal installation space (23 mm), with universal sash brackets compatible with different window materials and rebates from 0–25 mm.
- A minor drawback: Additional accessories may be needed for non-standard installations or specific security requirements.
Specifications

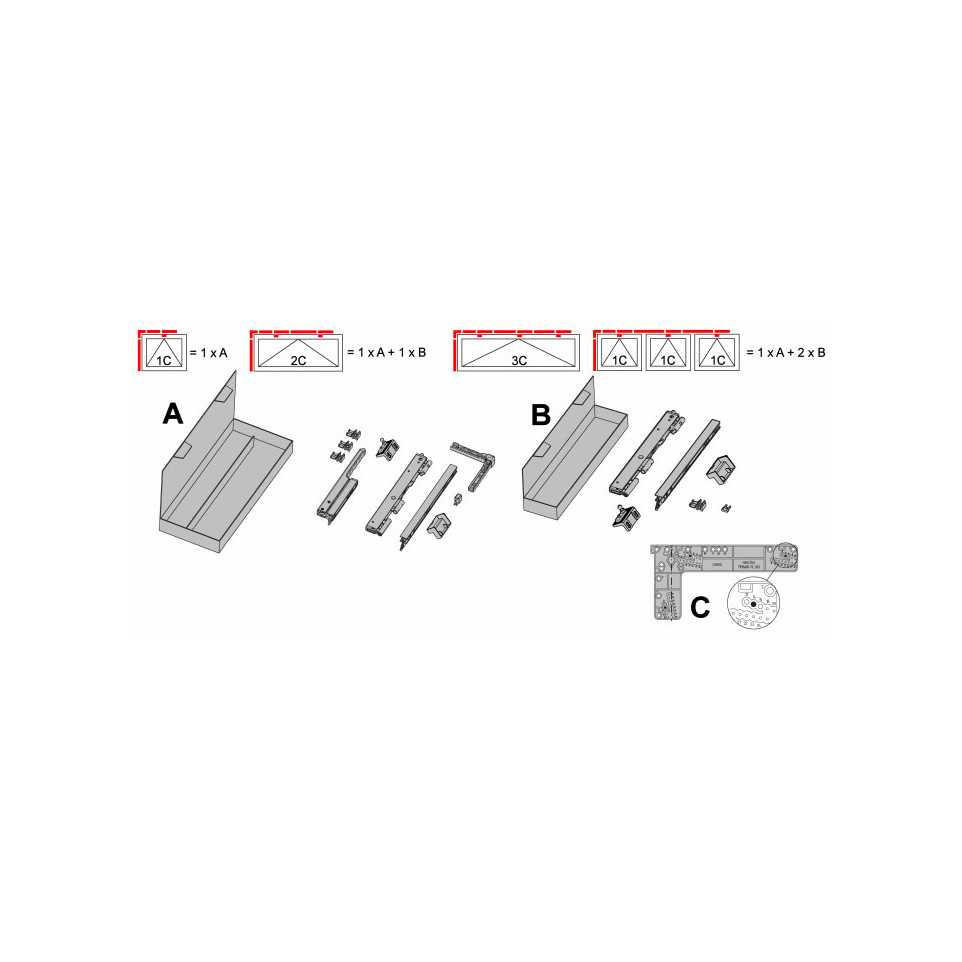

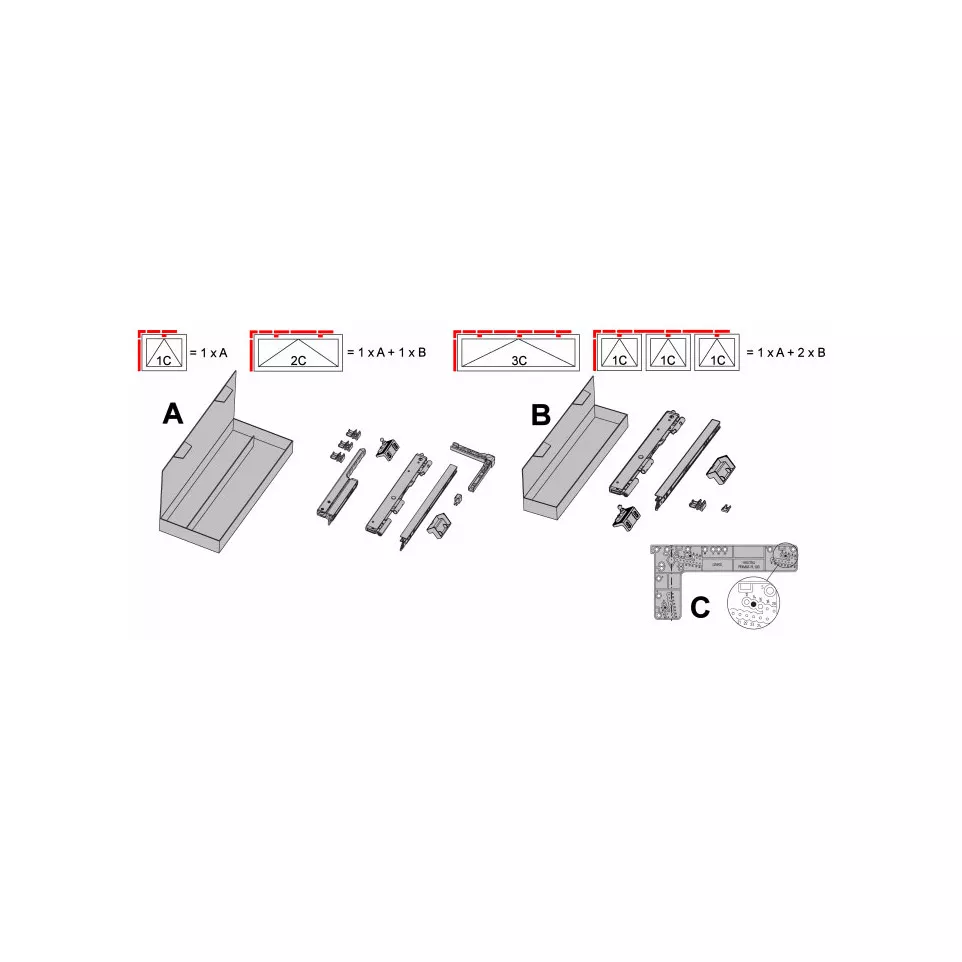

- The set includes visible parts made from aluminium; functional components are made of steel finished with HAUTAU-Splus (chromed silver) for superior corrosion resistance.
Universal sash bracket covers all common window materials. All parts are designed for straightforward assembly without clamping screws—rods simply hang into place.
- The product meets CE marking requirements.
Designed according to demanding European standards and suitable for various building types.[1][6]
- Supports glass weights up to 70 kg/m²; suitable sash width ranges from at least 440 mm up to a maximum of 3600 mm depending on configuration (1–3 stays).
Sash height: minimum of either ≥200 mm (opening width approx.110 mm) or ≥300 mm (approx.190 mm); rod length max.3750 mm.[1][6]
- Differentiating features include anti-dirt profiles inside the stays, storm-proof hold-open function when open, adjustable compression via the support bracket, quick front mounting process, and compatibility with additional security options if required.[1][8]
How it works
This base fitting package allows easy installation onto bottom-hung fanlights by attaching its brackets directly to the frame. Its lever transmits precise movement through rods connected by simple hanging actions—ensuring controlled opening/closing while maintaining strong locking at three points for energy efficiency and storm protection.[1][6][8]
