Usage
The Carton de base for Primat-FL190 Noir is designed as a fundamental component for lift-open and lift-open-drop fittings, enabling secure and efficient operation of bottom-hung or fanlight windows made from timber, metal, or PVC in commercial or residential buildings.
Advantages
- Supports window glass weights up to 70 kg/m² for robust applications
- Smooth operation with large opening widths up to approximately 190 mm
- Enhanced contact pressure and sealing through additional third locking inside the stay
- Highly durable construction with anti-corrosion protection on all functional steel parts
- Quick installation using universal sash brackets suitable for multiple window materials; requires only minimal installation space (23 mm)
Specifications
- The product combines visible aluminium components with highly corrosion-resistant HAUTAU-Splus finished steel mechanisms; ergonomic lever includes recessed grips and a black finish.
- Built for longevity: anti-dirt profiling ensures smooth running over time and consistent performance; CE marked according to European standards.
- Carries sash weights up to a maximum of 80 kg; supports sash widths from at least 440 mm up to a maximum of three stays configuring windows as wide as 3600 mm.
- Differentiated by its smooth lever travel (38–58 mm), opening width (up to approx. 190 mm), integrated multiple locking points, storm-proof hold-open position, flexible rod connection system without clamping screws, and compatibility with timber, aluminium, or PVC sashes.
How it works

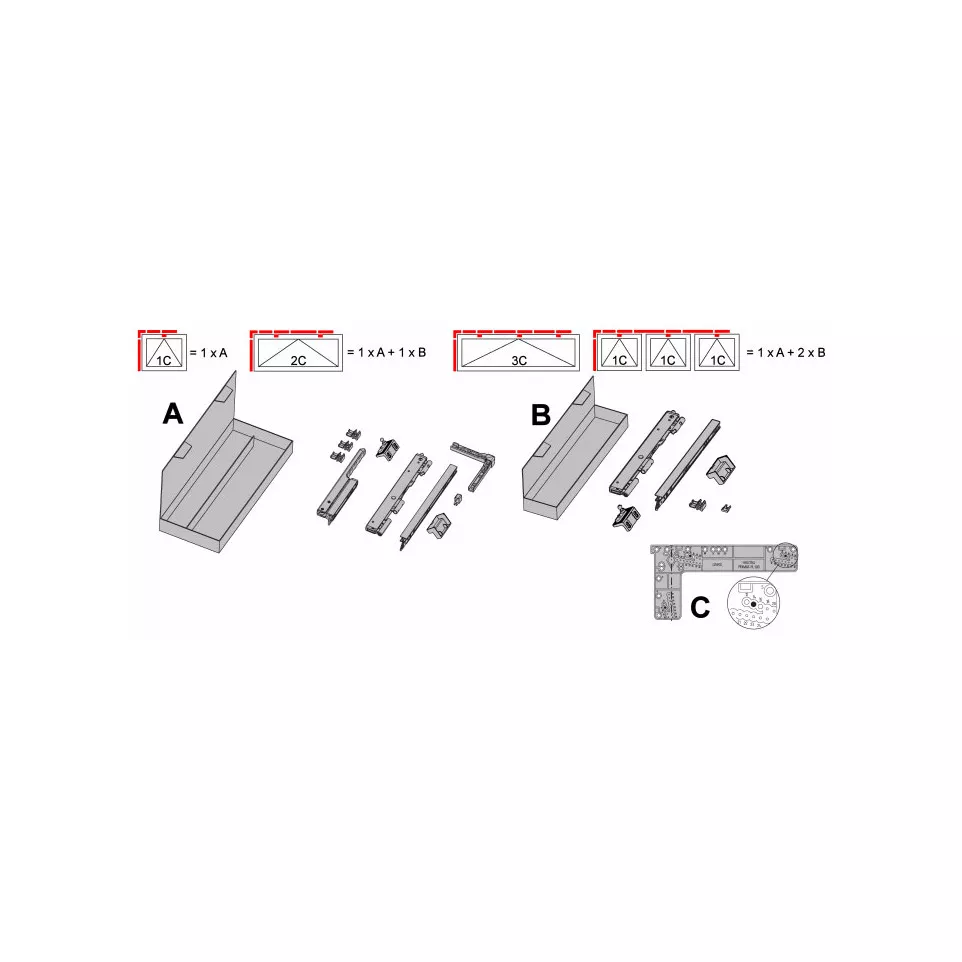

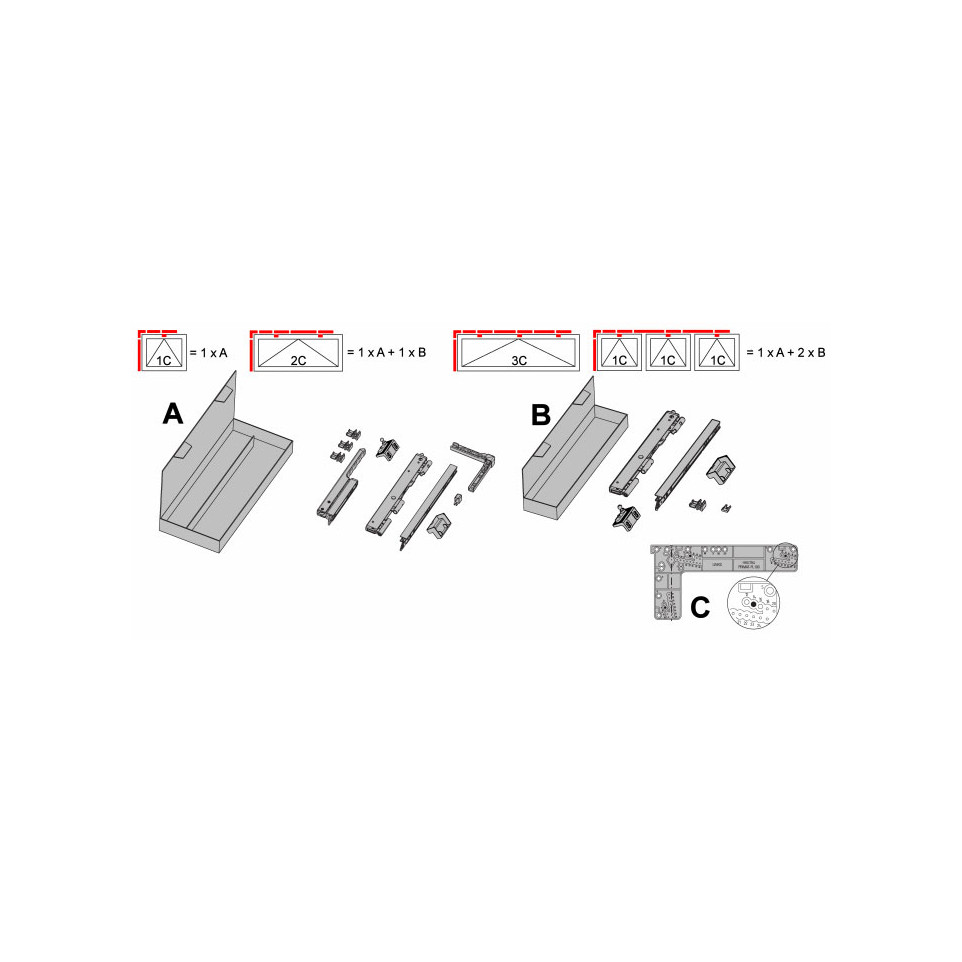

This base carton provides the core hardware needed for installing Primat-FL190 fittings. The system enables manual control via lever action: the window opens upward smoothly by transmitting force through rods and bracket assemblies while maintaining security via multi-point locks integrated in the stay mechanism. Suitable accessories can extend use across various window designs.
