Rod Support for Primat FL190 / pc
€8.92
In stock
Usage
This accessory set is designed for the Primat-FL190 system, enabling secure and efficient operation of lift-open and lift-open-drop windows in timber, PVC, or aluminum frames. Ideal for tilt sashes requiring precise locking and smooth movement.
Advantages
- Enables glass weights up to 70 kg/m² with sash widths from 440 mm to 2400 mm
- Smooth operation with ergonomic lever grips and a large opening width up to approximately 190 mm
- Advanced security through additional third locking inside the stay and adjustable closing pressure
- High corrosion resistance thanks to HAUTAU-Splus finish on steel parts; visible elements made of aluminum
- Universal sash bracket suitable for all window materials with minimal installation space (only 23 mm required)
Specifications

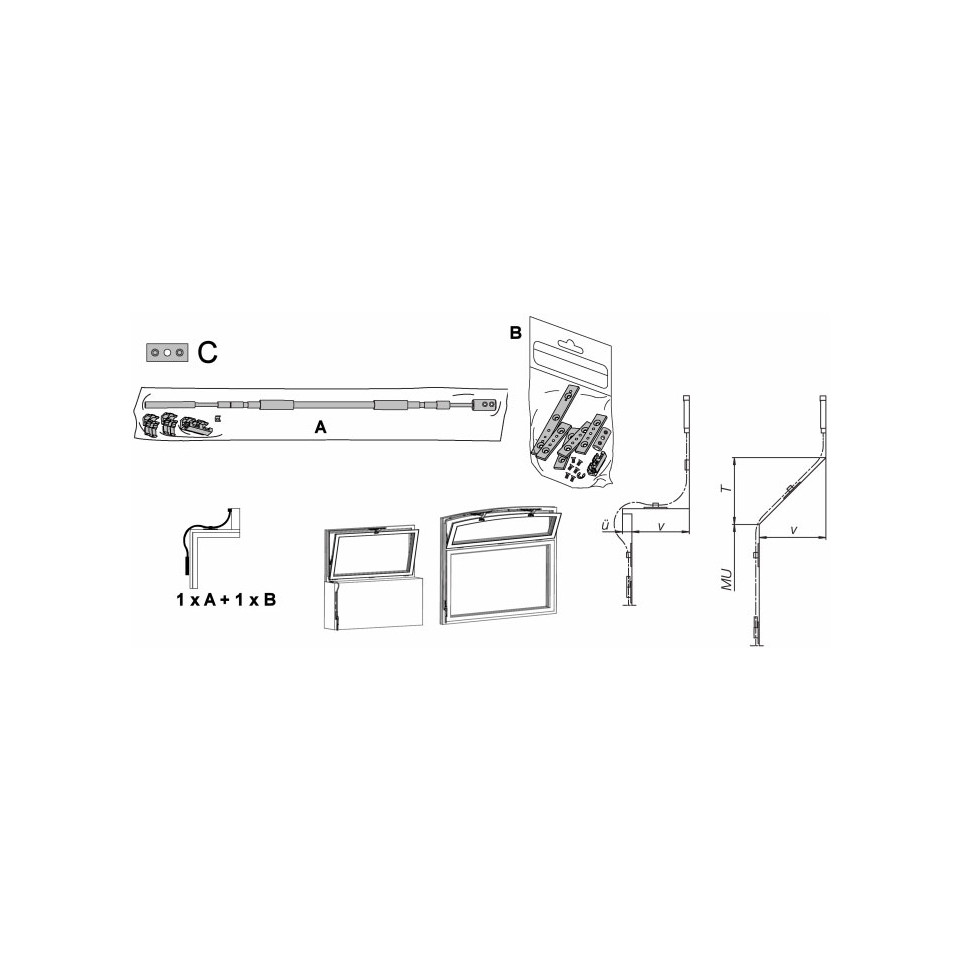

- The set includes steel rods (Ø8 mm), linkages, corner drives, universal brackets, cover profiles (aluminum), and high-quality PVC guides for reduced wear.
- Chemically polished galvanized surfaces meet strict anti-corrosion standards; CE-marked design ensures compliance with European regulations.
- Sash weights up to a maximum of approximately 80 kg per window; opening width variable from about 110 mm (minimum) up to ~190 mm (maximum).
- Differentiating features include anti-dirt profiling inside stays for extended lifespan, lockable levers with recessed grips, stormproof open position hold, concealed fixing screws, quick interlocking rod connections without clamping screws, and flexible installation—from the front—for both left- or right-handed use.
How it works
The accessory set integrates seamlessly into the Primat-FL190 mechanism: rods connect easily by hanging-in at corners without additional screws. The lever actuates sashes via smooth-running guides and linkages—enabling reliable opening or closing while maintaining secure locking at multiple points. Installers benefit from intuitive assembly jigs that minimize setup time.
