Product
Flat cam lock designed for installation on aluminum, PVC, or metal flat profiles without grooves. The Fapim Titan 450x24mm offers a slim 10 mm profile, making it suitable for tight spaces where aesthetics and minimal protrusion are required.
Specifications
- Made of anodized or lacquered aluminum for the main body.
- Features a stainless steel latch with an oval section for reliable strength and corrosion resistance.
- Delivered with five mounting screws.
- No strike plate included.

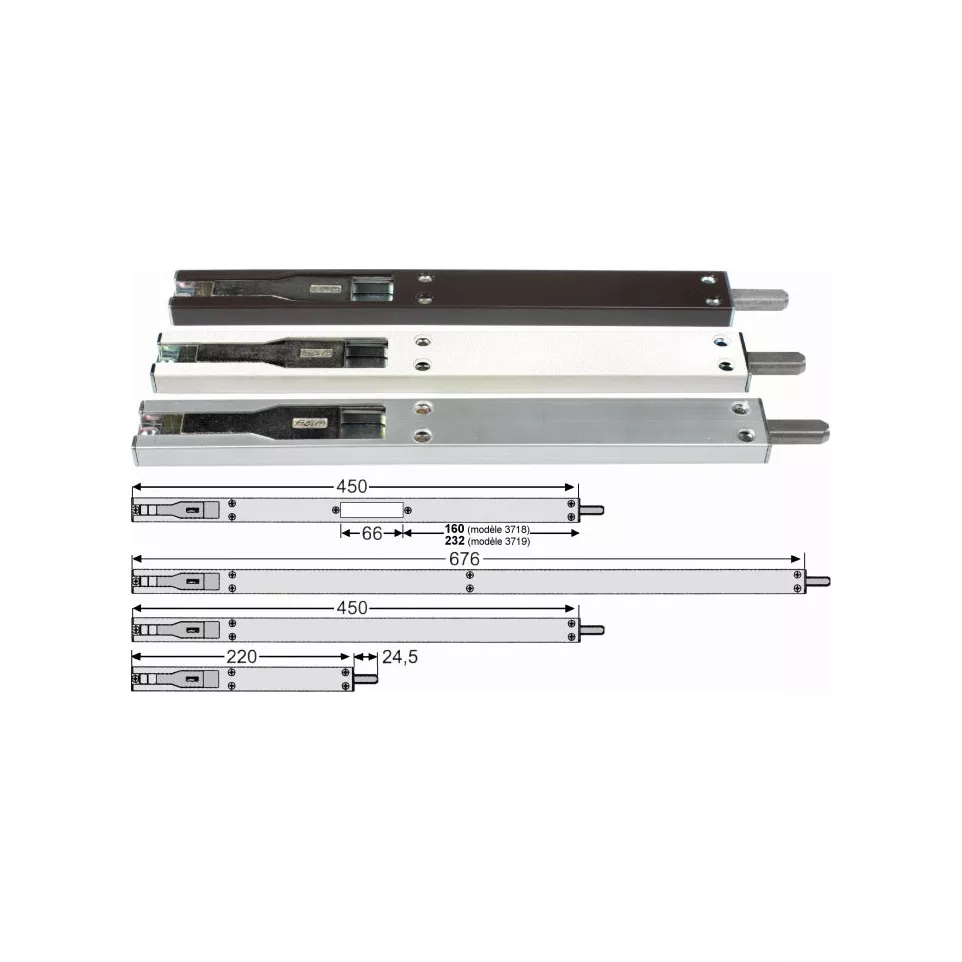

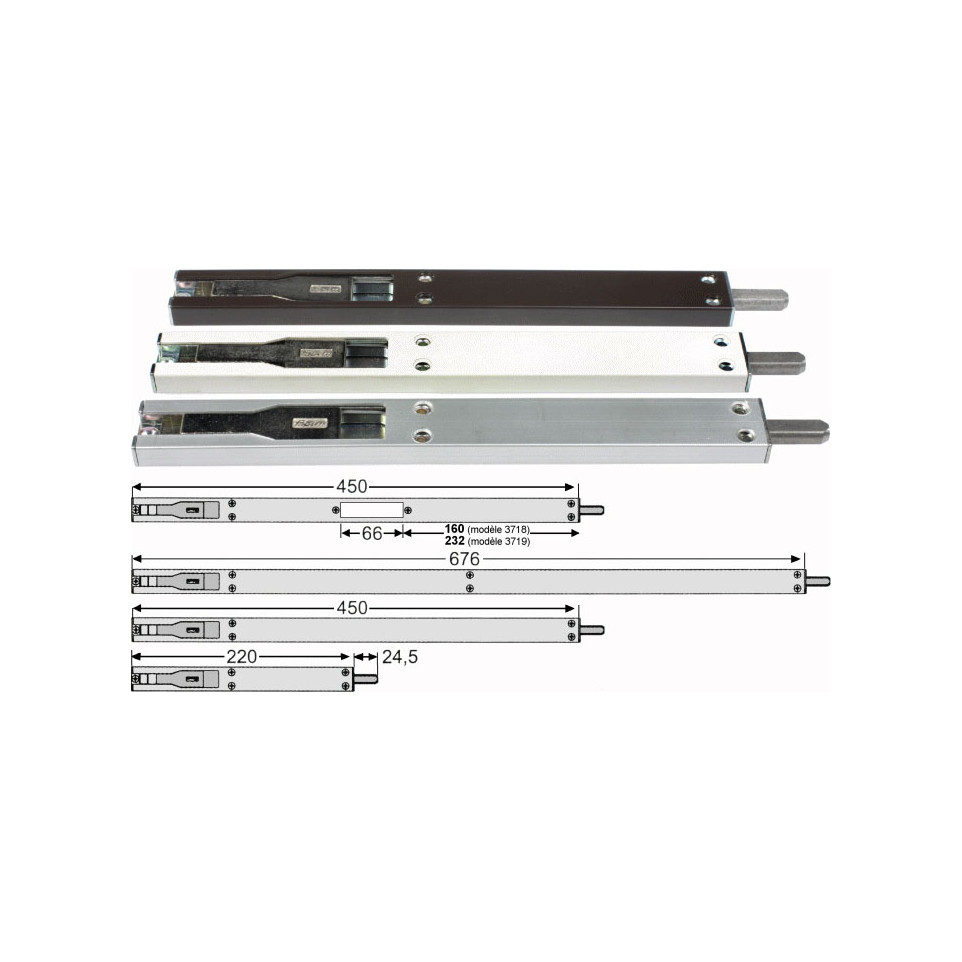

- Dimensions: 450 mm length, 24 mm width, 10 mm thickness.
Usage
Mount the Fapim Titan lock onto a flat aluminum or other compatible profile using the included screws. Its low thickness allows direct placement on flat surfaces without grooves. The stainless steel bolt slides into position to secure doors or panels, providing a discreet yet effective locking solution.
FAQ
-
What types of profiles is this lock compatible with?
This lock is compatible with flat aluminum, PVC, and metal profiles that do not have a groove.
-
Is a strike plate included in the package?
No, the lock is delivered without a strike plate but includes five screws for installation.
-
Can this lock be used outdoors?
Yes, the anodized or lacquered aluminum and stainless steel components provide resistance suitable for exterior use.
-
How thick is the lock?
The lock has a slim thickness of 10 mm, ideal for flush installation on flat profiles.
-
Is special maintenance required?
Routine cleaning and periodic inspection are sufficient; no special maintenance is necessary due to its corrosion-resistant materials.
