Product

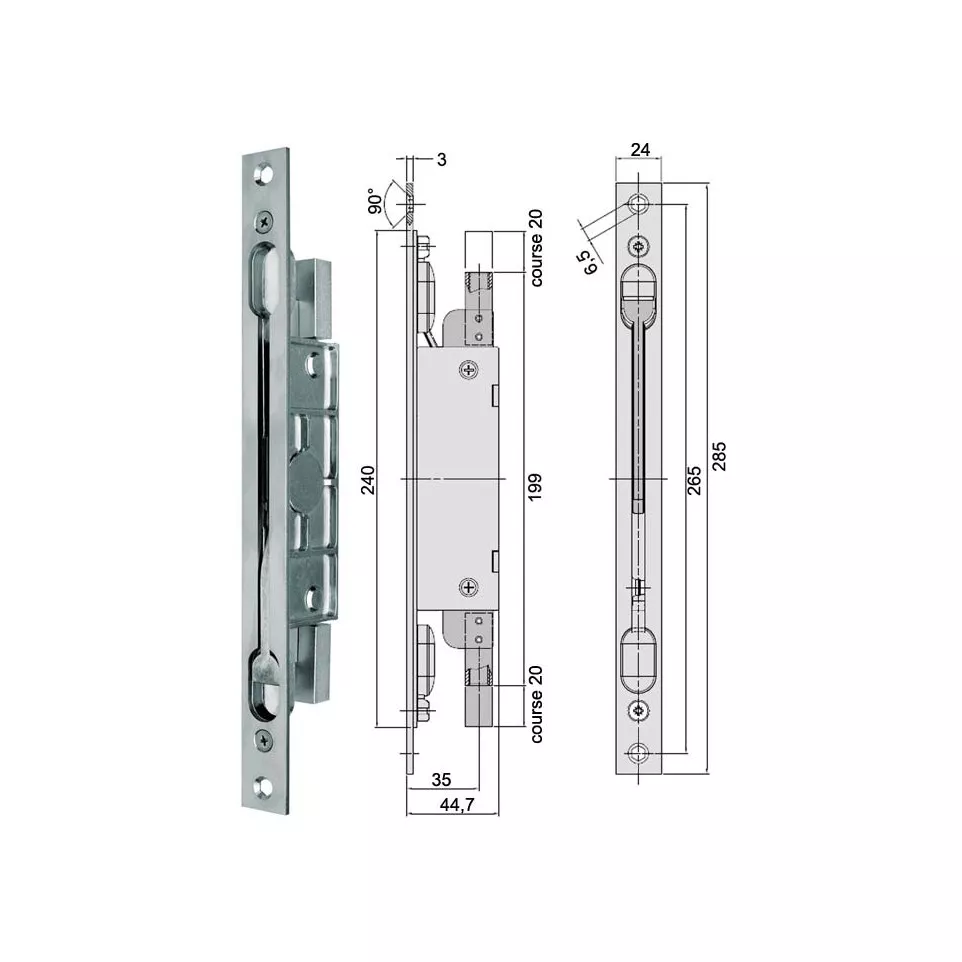

Robust toggle lock designed for use with aluminum, PVC, and metal profiles, ideal for doors requiring secure and stable closure. Features a modular system for adaptable installation on various types of architectural frames.
Specifications
- Made with a die-cast aluminum/zinc alloy body for durability and corrosion resistance
- Includes an interchangeable strike plate (choose between zinc-plated or stainless steel finish)
- Compatible with M10 threaded rods (to be ordered separately, reference FG 131061)
- Travel distance: 20 mm
- Designed specifically for locking bars and profiles, suitable for varied project requirements
Usage
Attach the toggle lock to the desired frame using an M10 threaded rod and a compatible strike plate. Select a strike plate finish—zinc or stainless steel—based on installation environment. Once mounted, the locking mechanism provides reliable, repeatable engagement for doors or panels, improving both stability and security.
FAQ
-
What materials is the toggle lock made from?
The lock features a body in aluminum/zinc alloy and allows the choice of a zinc-plated or stainless steel strike plate.
-
Which accessories are needed for installation?
An M10 threaded rod (FG 131061) and a strike plate (available separately) are required for proper installation.
-
Is this lock suitable for outdoor use?
Yes, especially with the stainless steel strike plate option, which offers greater corrosion resistance.
-
What is the travel distance of the locking bolt?
The toggle lock provides a travel distance of 20 mm.
-
Can this lock be used on materials other than aluminum or PVC?
Yes, it is also compatible with metal profiles commonly used in architectural and industrial applications.
