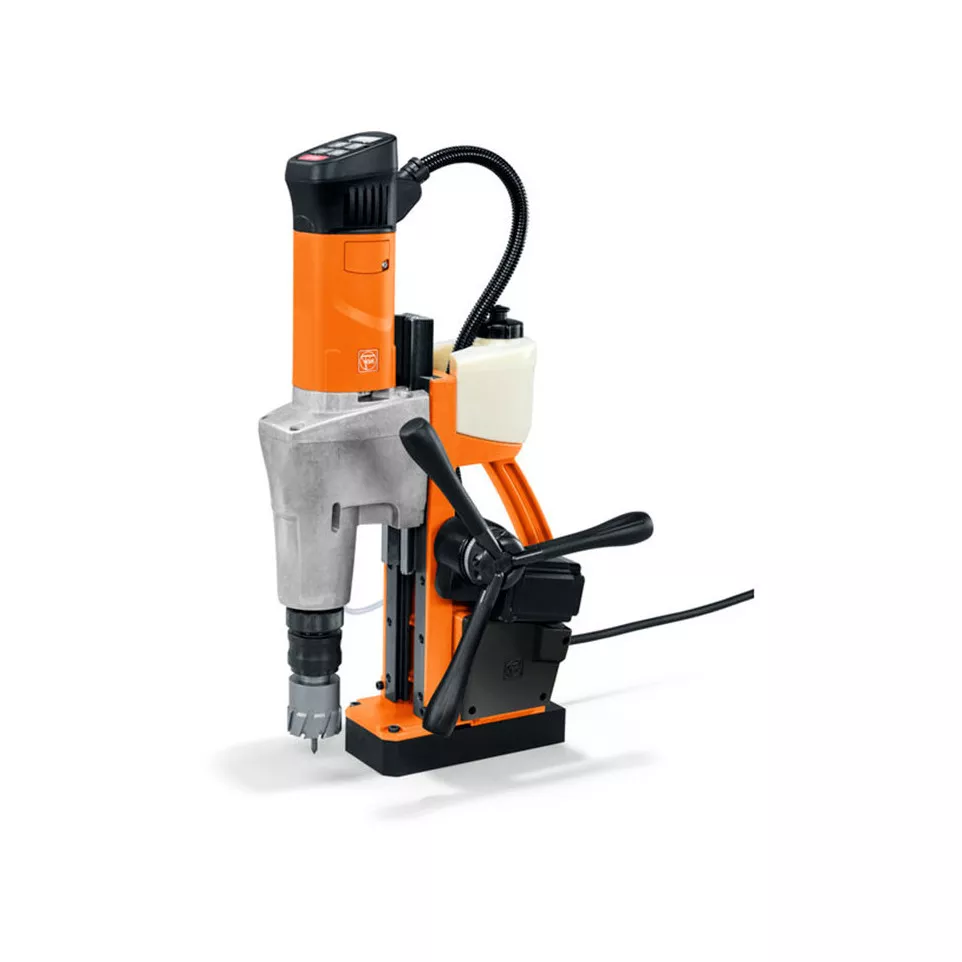

FEIN KBM 50 auto magnetic core drill with QuickIN / pc

Product

The Fein KBM 50 auto QuickIN is a fully automatic, two-speed magnetic drill designed for efficient core drilling, tapping, and countersinking tasks in workshops and on job sites. Its lightweight construction and digital feed advance make it ideal for repetitive or high-volume metalworking applications.

Specifications

• Powerful 1200 W HIGH POWER FEIN motor with consistent speed stability
• Robust MK3 tool interface and tool-free QuickIN bit change system
• Electronic speed regulation with two ranges: 130–520 rpm
• Automatic drill feed, magnetic holding force display, and high 12500 N magnetic holding strength
• Integrated coolant tank and visible controls for convenience and safety
• Maximum cutting capacities:
  • Carbide core drill: 50 mm diameter, up to 50 mm depth
  • HSS core drill: 40 mm diameter
  • Twist drill: up to 23 mm diameter
  • Tapping up to M16, countersinking and reaming up to 50 mm and 23 mm respectively
• 145 mm stroke, 315 mm total lift, magnetic base 195 x 90 mm
• Weighs 16.2 kg

Usage

Operation is fully automatic for core drilling, saving time on repetitive tasks. Users can plan and repeat drilling cycles with digital precision, making it suitable for batch or production work. Manual mode with reversible rotation supports tapping and other universal drilling tasks. Onboard displays, a tilt sensor, and integrated coolant enhance safety and efficiency during use.

FAQ

1. What types of drilling operations can this machine perform?
   The KBM 50 auto is capable of core drilling, twist drilling, tapping, countersinking, and reaming, making it a versatile tool for metalworking tasks.

2. How does the automatic feed work?
   The automatic feed advances the drill with consistent pressure, controlled electronically, ensuring repeatable results and reducing manual effort.

3. What is the maximum drilling capacity?
   With carbide cutters, it can drill holes up to 50 mm in diameter and 50 mm deep; with HSS cutters, up to 40 mm diameter.

4. Is the machine suitable for series production?
   Yes, its digital feed and reproducible drilling cycles make it well-suited for repetitive or serial drilling jobs.

5. What safety features are included?
   The drill features a tilt sensor, magnetic holding force display, personal safety switch, and clear, visible controls to enhance operator safety.
