Usage

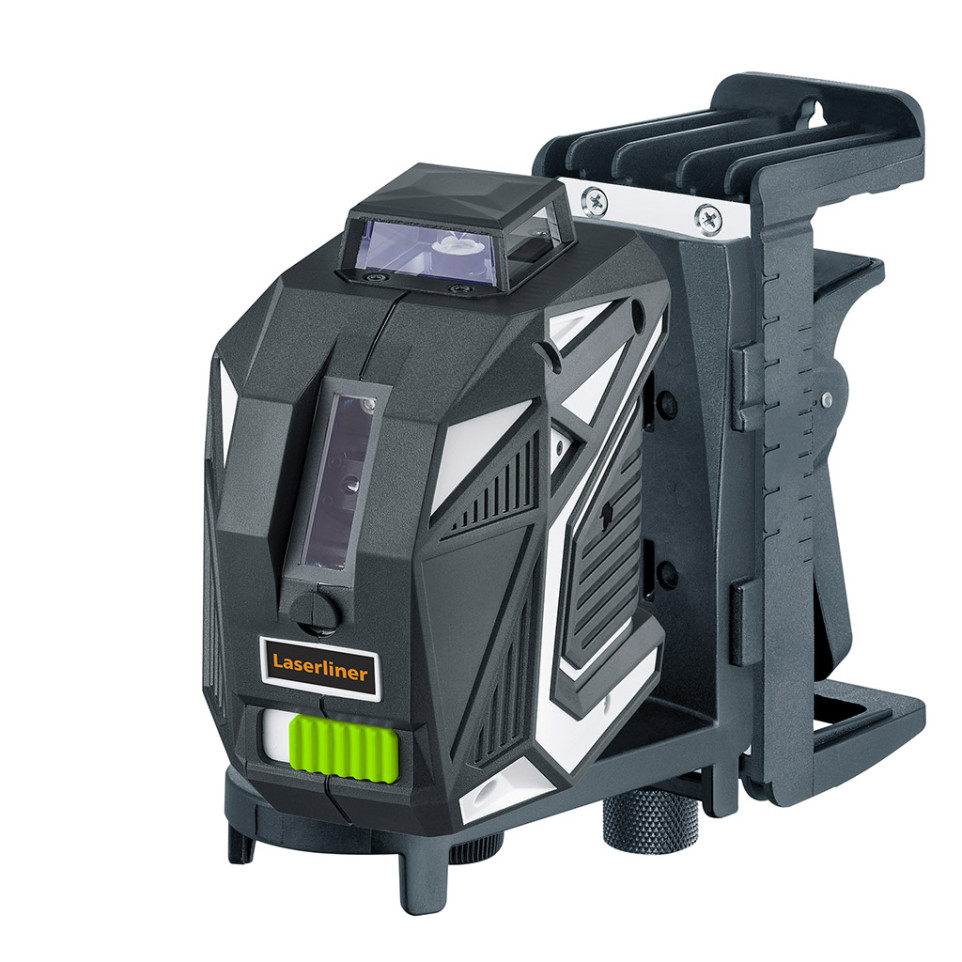

The LaserLiner 360° X1-Laser-Pro is a professional line laser designed for precision horizontal, vertical, and cross-line alignment work in construction, interior fitting, and renovation. Ideal for room-wide measurements and outdoor tasks with receiver.
Advantages
- Projects a bright 360° horizontal line and a vertical laser for comprehensive spatial alignment
- Green laser technology ensures high visibility up to 60 meters under typical lighting conditions
- Automatic self-leveling function within ±3° increases efficiency on uneven surfaces

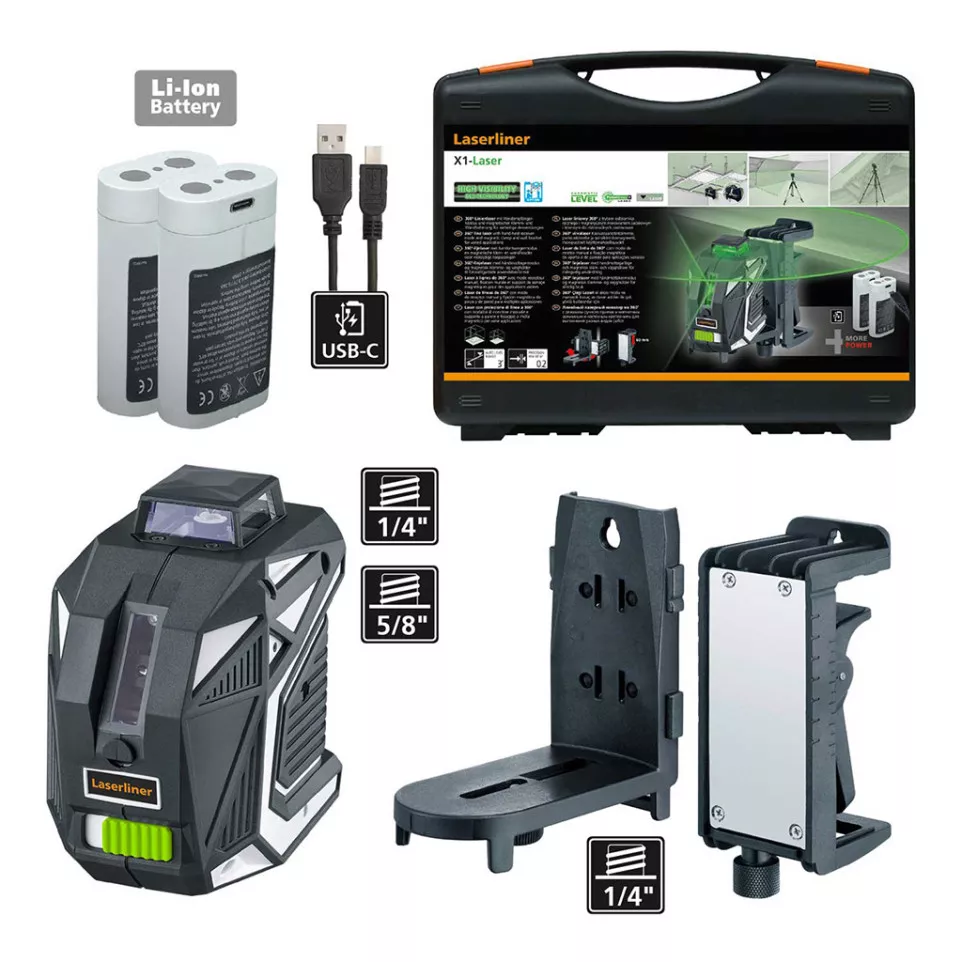

- Interchangeable lithium-ion batteries allow up to approximately 15 hours of continuous operation; comes with two batteries for extended use

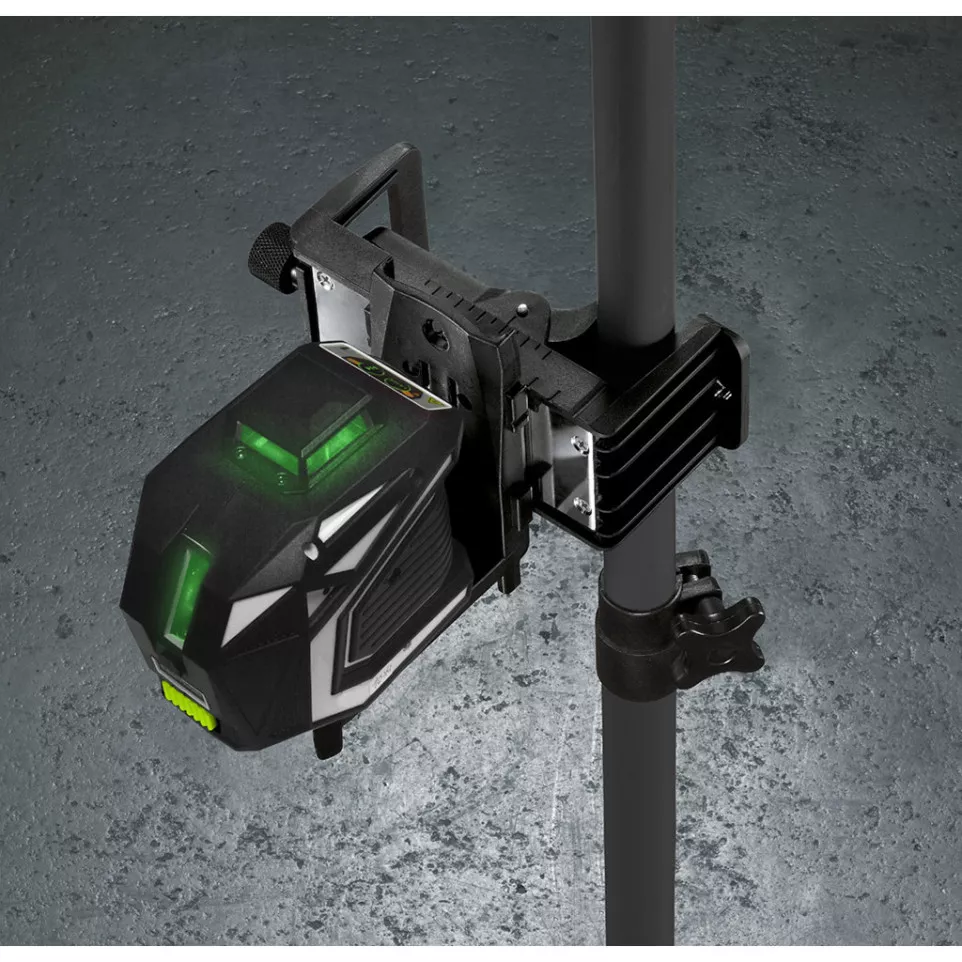

- Magnetic clamp and wall bracket offer flexible mounting options in various working environments
Specifications
- Design & Technology: Compact housing (122 x 121 x 75 mm), green laser diode (515 nm), CrossGrip magnetic clamp and wall bracket included for versatile positioning
- Durability & Certification: IP54 protection against dust and water splashes; operates at altitudes up to max. 4000 m above sea level
- Performance: Self-leveling range ±3°, accuracy ±0.2 mm/m, typical visibility: up to 60 m* (at max. 300 lux); continuous operating time approx. 15 hours per battery pack
- Differentiators: Hand receiver mode enables outdoor use; individually selectable lines; manual slope function supports angled placement; quick battery exchange system
- *Values may vary depending on ambient lighting.
- Total product weight including battery: approx. 638 g.
- Powers via replaceable Li-ion battery pack (3.7V / 5.2 Ah) or adapter (5V/DC/2A).
- Satisfies EN 60825-1:2014/A11:2021 / EN 50689:2021 safety standards.
How it works
The device automatically levels itself when placed within its tilt range. Once activated, it emits precise green reference lines around the workspace that can be used directly or detected by a hand receiver outdoors. Its modular mounting clamp allows secure attachment to various surfaces or equipment.
