Product

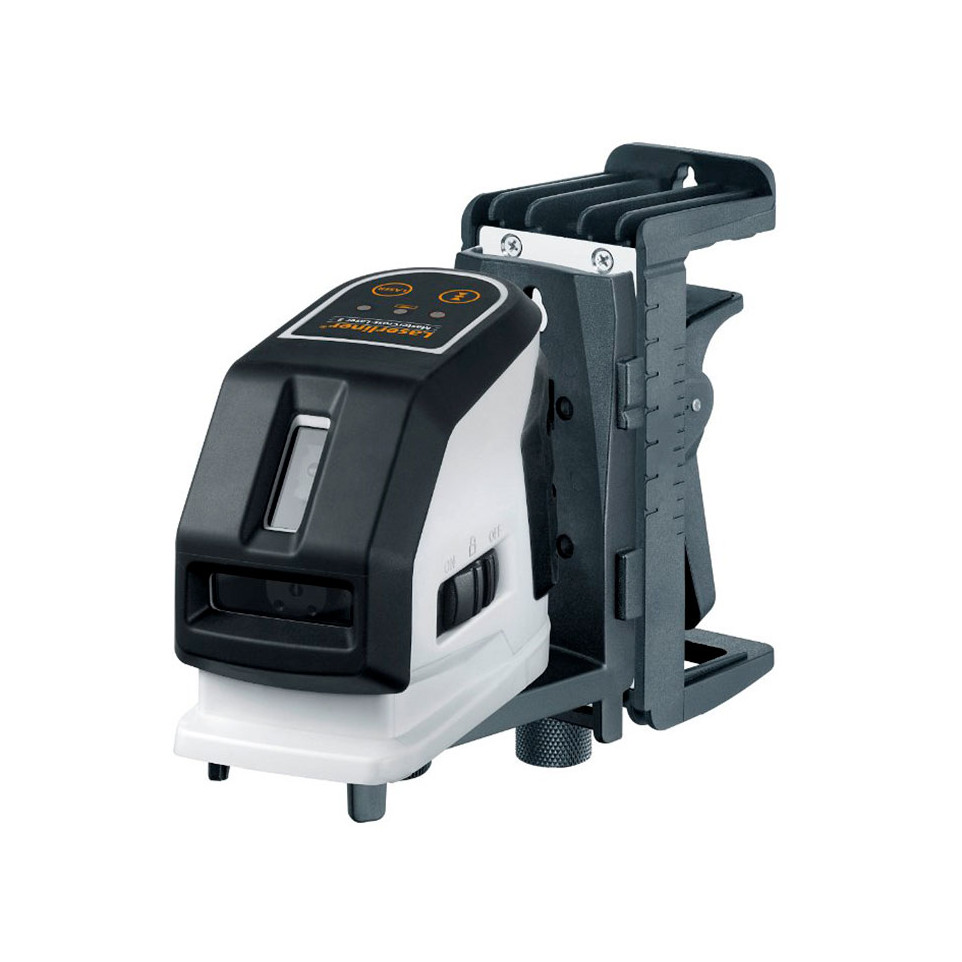

The Laserliner MasterCross-Laser 2 is a cross-line laser level designed for precise alignment tasks such as installing tiles, wall studs, windows, and doors. It projects two highly visible laser lines for accurate horizontal and vertical positioning in construction and renovation settings.
Specifications
- High-performance PowerBright-Laser+ diodes delivering clear and visible laser lines
- Self-levelling pendulum system with magnetic damping, ±3° range
- Accuracy: 2 mm per 10 m; working range up to 20 m (extends to 40 m with optional receiver)
- Additional tilt/incline mode for sloped installation tasks
- Individually switchable laser lines for tailored applications
- Out-of-level optical warning system for safety
- Universal mounting: includes magnetic wall bracket and clamp for horizontal or vertical installation, especially suitable for drywall profiles
- RX-Ready: compatible with the RX laser receiver for extended range and outdoor visibility
- Transport lock protects pendulum during transit
- Laser: class 2, wavelength 635 nm, < 1 mW output
- Power: 4 x AA batteries, approx. 15 hours runtime
- Operating temperature: 0°C to +50°C; storage: –10°C to +70°C
- Weight: 570 g with batteries, not including wall bracket
- Dimensions: 66 x 100 x 125 mm
Usage
Place the MasterCross-Laser 2 on a stable surface, wall bracket, or clamp. The automatic self-levelling function ensures laser lines are level within a ±3° range. Switch between horizontal, vertical, or both lines as needed. For angled layouts, activate the tilt function. When working outdoors or over long distances, use the RX receiver for up to 40 m range. Optical alerts indicate when the device is beyond its self-levelling capability.
FAQ
-
What is the maximum working range of the MasterCross-Laser 2?
- The working range is up to 20 meters indoors, extendable to 40 meters with the optional RX receiver.
-
Can the laser lines be activated individually?
- Yes, the device allows the user to activate either the horizontal or vertical line independently, or both simultaneously.
-
How is the device powered, and how long does it operate on one set of batteries?
- It is powered by four AA batteries and provides approximately 15 hours of operating time.
-
Is the MasterCross-Laser 2 suitable for use on uneven surfaces or at an angle?
- The self-levelling system compensates for unevenness within ±3°. For inclined applications, use the manual tilt function.
-
What accessories are included with the MasterCross-Laser 2?

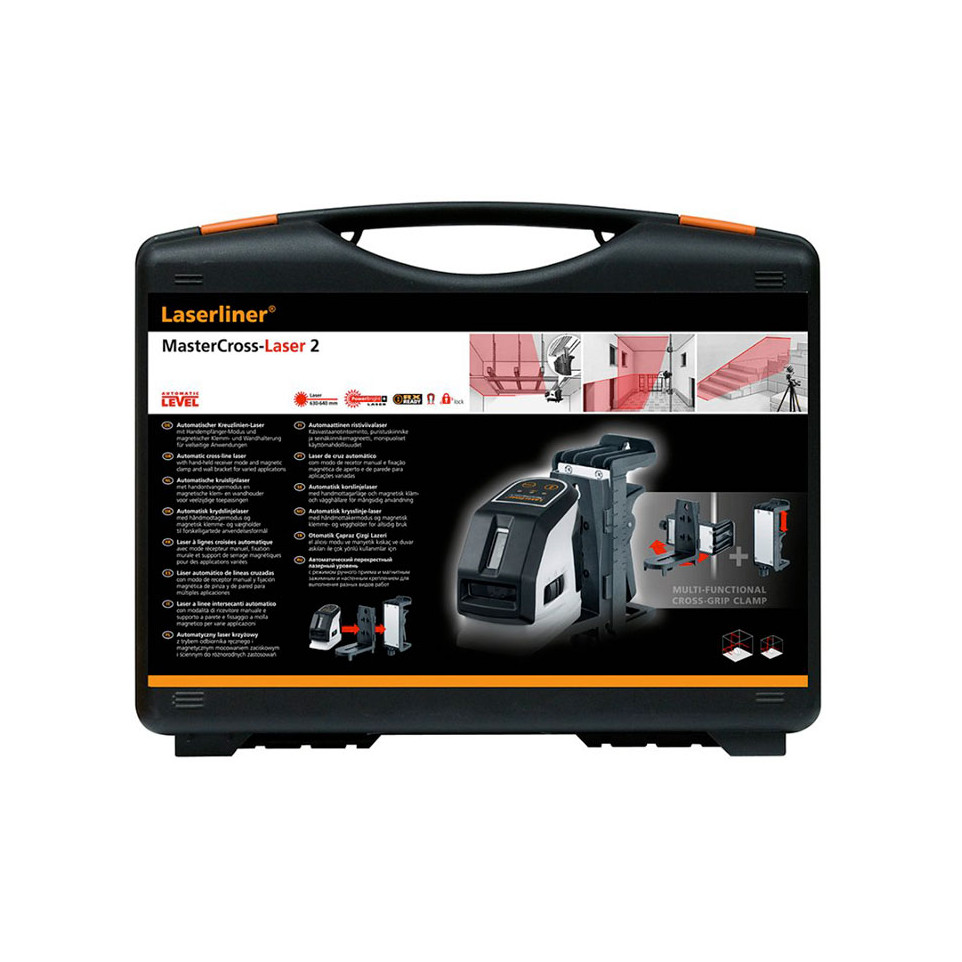

- Included accessories are a magnetic wall bracket, clamp, batteries, and a protective carrying case.
