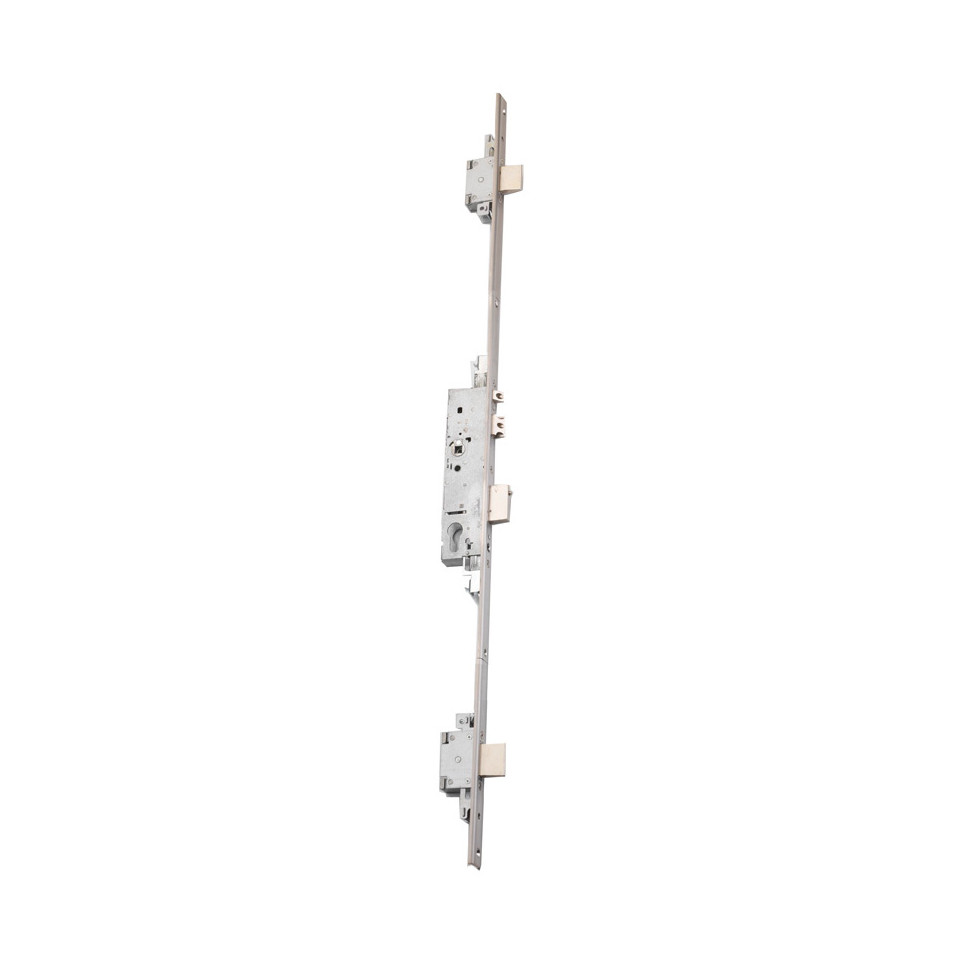

CISA SikurExit 3-Point Recessed Panic Lock 40/92 F24 Function A/D per piece

Usage

The Cisa Sikur Exit 3-point mortise panic lock is designed for securing emergency exits and access doors in commercial, industrial, or public buildings, enabling quick, safe egress when needed.

Advantages

• Enhanced security with three locking points for robust resistance to forced entry.
• Certified to EN 1125:2008 and EN 12209 standards for use on emergency exit routes.
• Versatile installation; compatible with both aluminum and steel doors, in single or double-leaf configurations.
• User-friendly panic function allows rapid exit from within while restricting unauthorized access from outside.
• Reversible latchbolt and adjustable components facilitate straightforward installation and maintenance; minor limitation: requires compatible panic hardware for full functionality.

Specifications

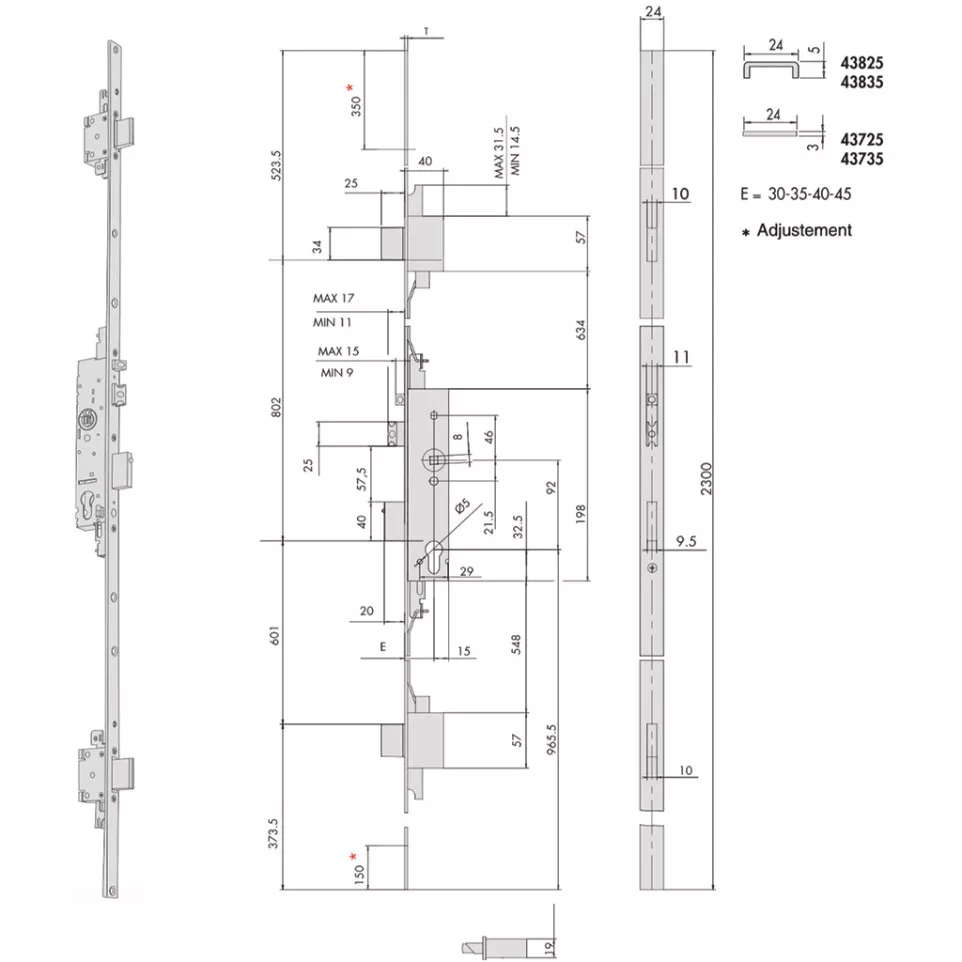

• Design & Materials: Flat stainless steel faceplate (24 mm × 3 mm), overall height of 2300 mm. Reinforced bolts (central deadbolt: projection of 20 mm, auxiliary bolts: projection of 25 mm). Protected by hardened steel plates against drilling attempts.

• Sustainability & Certifications: Security grade 6 per EN 12209. Certified to the requirements of EN1125:2008 (panic exit) and EN179:2008 (emergency exit). Lateral load resistance up to 1,000 kg, frontal load up to 600 kg.

• Performance Metrics:  - Adjustable latch projection between 11–17 mm - Anti-fraud feature with adjustable bolt throw between 9–15 mm - Reversible design supports both left- or right-hand opening

• Differentiating Features:  - Functions A/D selectable within the same lock body (A = no external handle operated by key only / D = always-active exterior handle) - Compatible with a range of cylinder types and protective escutcheons - Pre-arranged holes accommodate additional protective devices


How it works

This multipoint lock is mortised into the door leaf. From inside, users activate a panic bar or handle to disengage all locking points instantly in an emergency. From outside, authorized personnel unlock via key according to selected function mode (A/D), restricting general access while ensuring safety compliance.
