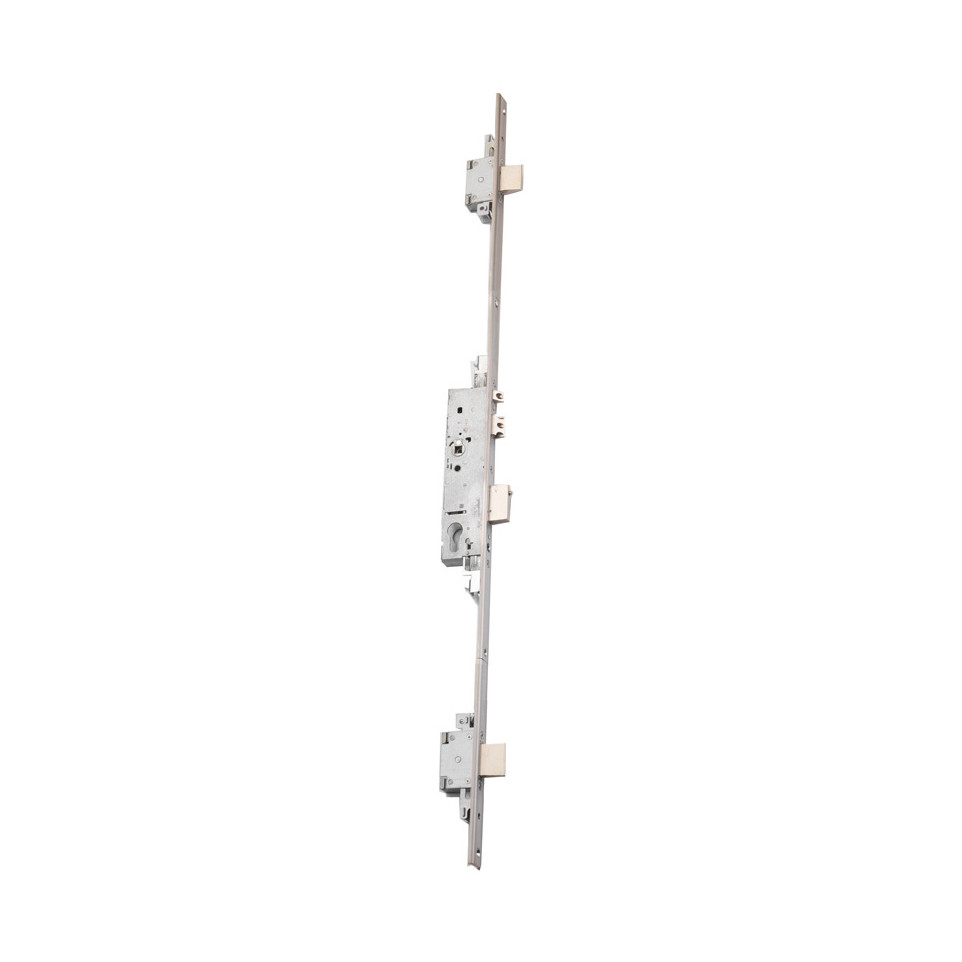

CISA SikurExit 3-Point Mortise Panic Lock 35/92 U24x5 Function B per piece

Usage

The Cisa Sikur Exit 3-point panic mortise lock is designed for secure emergency exits on single or double aluminum and steel doors in commercial or public buildings, ensuring controlled entry while allowing fast evacuation.

Advantages

• Panic exit function enables rapid and safe door opening in emergencies from the inside.
• Three-point locking system enhances security by securing the door at top, bottom, and center points.
• Certified to EN 1125:2008 (panic devices) and EN 12209:2003 (security), meeting strict European standards.
• Reversible latchbolt allows for adaptable installation on right- or left-handed doors.
• The external handle is enabled or disabled via key control for selective outside access; installation requires precise alignment due to multipoint design.

Specifications

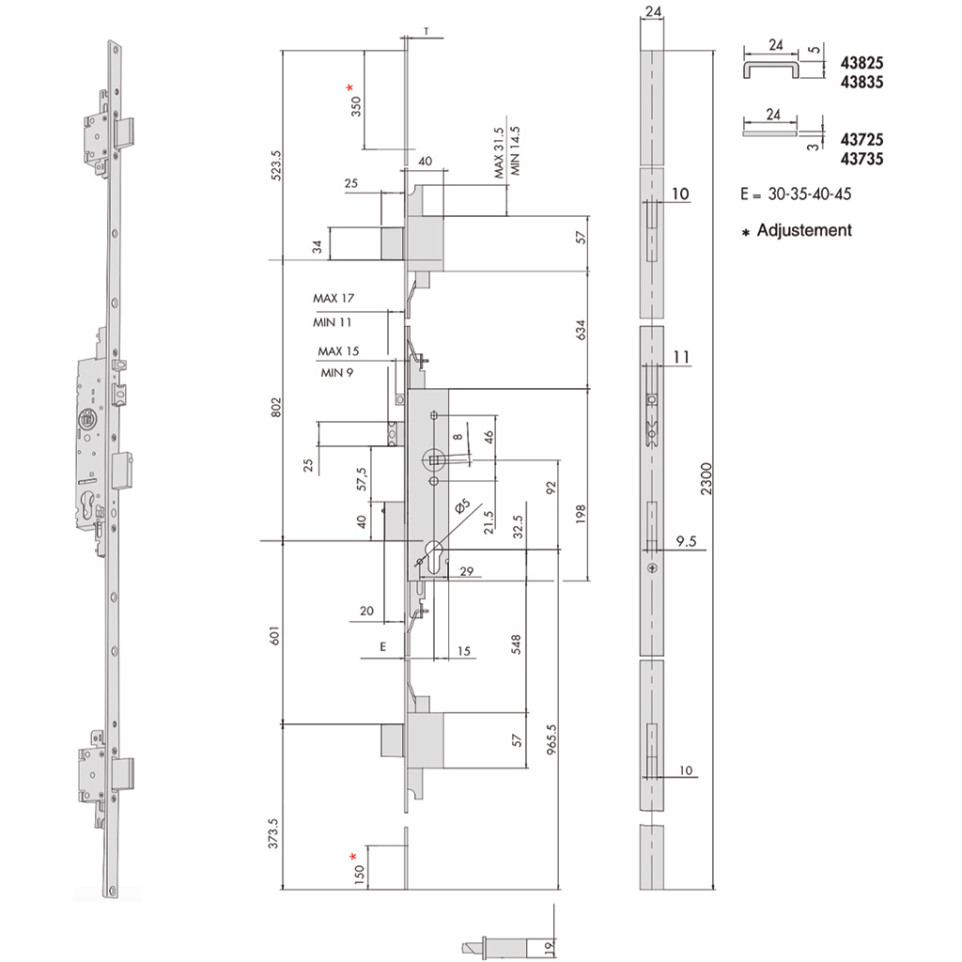

• Milled steel case with anti-picking device, flat “U” profile faceplate (24x5 mm) of stainless steel, full length of 2300 mm; compatible with U24x5 mounting requirements.
• Durability proven by Grade 6 security per EN12209 with lateral resistance up to 1,000 kg and frontal resistance up to 600 kg; suitable for intensive use environments.
• Panic function B: external handle activated/deactivated by key; backset of 35 mm and centers at 92 mm. Central deadbolt projection: 20 mm. Additional bolts projection: up to approximately 25 mm each. Latch adjustable between 11–17 mm projection.[1][7]

How it works

The lock provides three anchoring points—top, bottom, and center—that engage when locked. From the inside, a panic bar or lever instantly retracts all bolts for immediate egress. Outside access via the handle is granted only when activated by authorized personnel using a key.[1][7]
