Cisa SikurExit 3-Point Mortice Panic Lock 40/92 U24x5 Function B per piece

Product

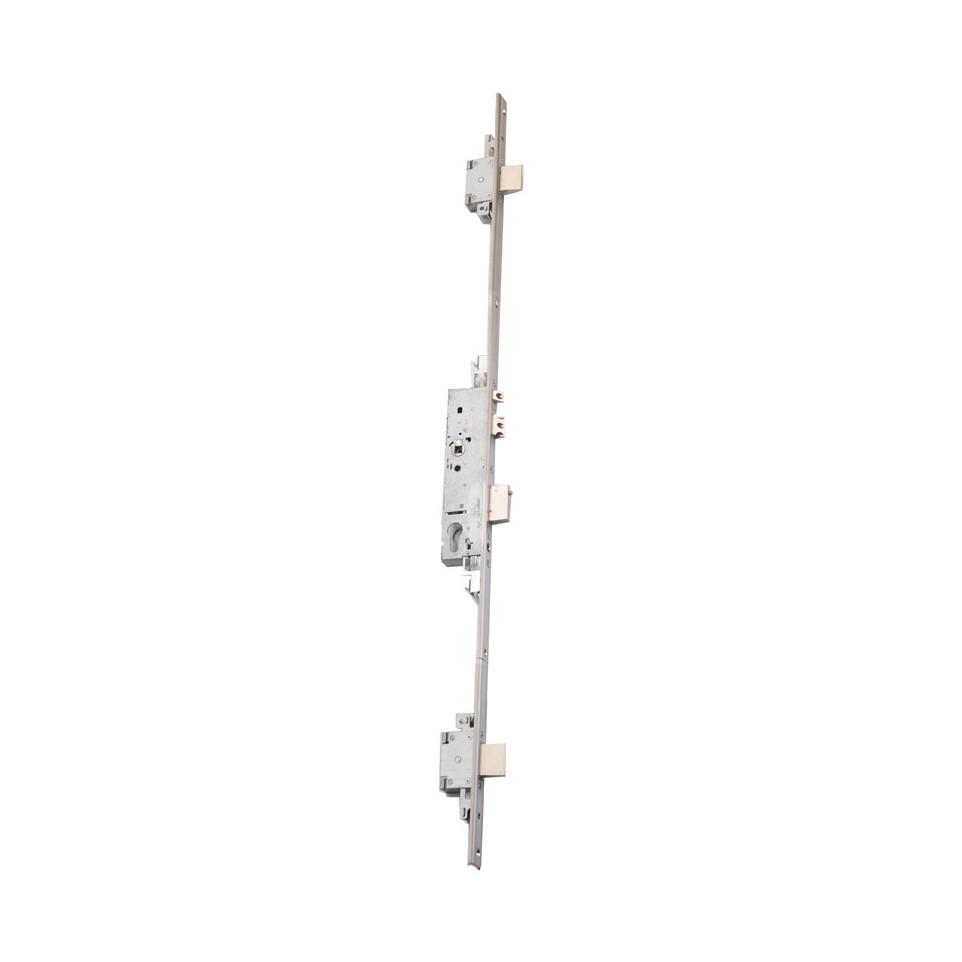

Cisa Sikur Exit 3-point mortise panic lock is designed for aluminum and steel doors, ideal for both single and double door configurations. This reversible lock provides robust multipoint security for emergency exits in commercial and industrial settings.

Specifications

• Designed for 1-point or multipoint anti-panic mortise installation on aluminum and steel doors, suitable for both single and double doors

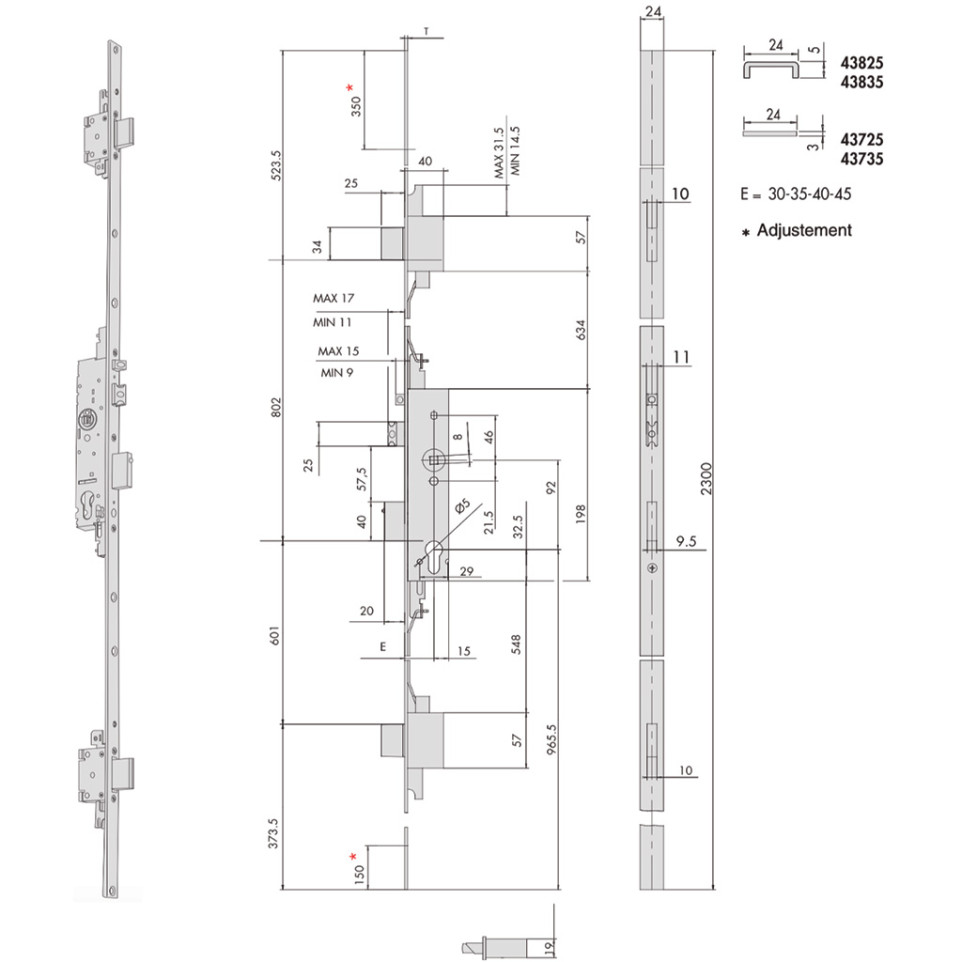

• Reversible mechanism with adjustable latch projection (11–17 mm), antifraud latch (9–15 mm), and a central deadbolt projection of 20 mm
• Multipoint version features a continuous faceplate (2300 mm) and reinforced flat bolts with 25 mm projection
• Certified to Security Grade 6 (EN 12209) with lateral resistance up to 1,000 kg and frontal resistance up to 600 kg
• Includes patented drilling patterns for escutcheon or security plate screws; additional boxes, rods, and bolts for semi-fixed leaf available on request

Usage

Install the lock inside the door frame for discreet, secure multi-point locking. For Function B, the external handle is activated or deactivated by the key; the key always operates the locking points, while the internal panic handle ensures rapid, safe egress in emergencies.

FAQ

1. What door materials are compatible with this lock?
   The lock is designed for installation on aluminum and steel doors.

2. Is the lock suitable for double doors?
   Yes, it supports both single and double-leaf door configurations.

3. How is the external handle controlled?
   For Function B, the external handle is enabled or disabled with the key, providing selective access.

4. What security certifications does it hold?
   The lock achieves Security Grade 6 according to EN 12209, with certified resistance values.

5. Are configuration options available for fixed and active leaves?
   Yes, additional kits for secondary (semi-fixed) doors are available on request to complete double door setups.
