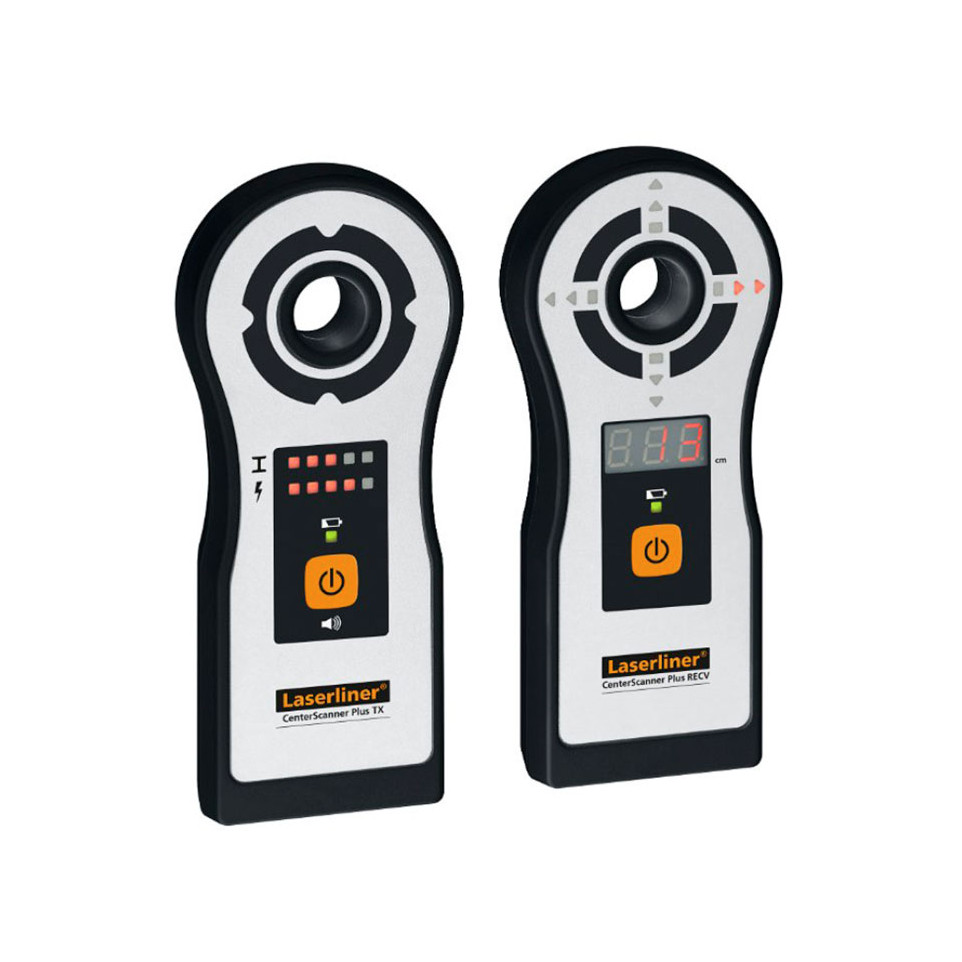

The Laserliner CenterScanner Plus is a professional drill guide and multipurpose detector designed for accurately aligning drill channels in walls and ceilings. It allows one person to quickly locate entry and exit points, ensuring precise drilling in construction and renovation settings.
Specifications
- System includes a transmitter (TX) and receiver (RECV) for fast channel alignment
- Measures position through walls or ceilings up to 150 cm thick; displays wall/ceiling thickness up to 200 cm
- Integrated LCD display, 13 highly visible LEDs, acoustic warning signals
- Detects metal objects and live electrical lines to avoid accidental drilling into foreign objects
- Measurement accuracy: 3% of depth
- Receiver operating time: approximately 20 hours; transmitter: approximately 12 hours (3 × AAA batteries each)
- Operating temperature: −30 °C to +40 °C; humidity <80%
- Durable construction; supplied in a carrying case with adhesive pads, slide pads, and batteries
- Compact dimensions: each unit 75 × 172 × 28 mm; weight with batteries: ~200–210 g
Usage
The device helps users assess wall and ceiling thickness, choose the correct drill bit, and mark drilling locations. Place the transmitter and receiver on opposite sides of the surface, align using the LED and acoustic indicators, and monitor the LCD to confirm drilling position and depth. It warns if metal or voltage is detected, avoiding damage to pipes, cables, and tools. Applications include HVAC installation, pipe routing, electrical wiring, creating exhaust or ventilation holes, and structural openings.
FAQ
-
What is the maximum wall thickness the CenterScanner Plus can measure?
- The device aligns drill channels through walls or ceilings up to 150 cm thick and displays up to 200 cm of material thickness.
-
Can it detect both metal pipes and live electricity before drilling?
- Yes, it automatically detects metal and voltage, emitting visual and acoustic warnings to prevent drilling into hazards.
-
Does the product allow one-person operation for drilling alignment?
- Yes, its design enables a single user to position and align drill points quickly and accurately.
-
What accessories are included with the product?
- The package contains a transmitter, receiver, adhesive kit, four sliding pads, batteries, and a carrying case.
-
Is there a requirement to drill from the top side of a surface?
- No, the device allows free selection of drilling direction for more flexible installation options.
