Laserliner ActiveFinder XP Voltage Tester CAT IV 1000V per piece
€42.06
In stock
Product

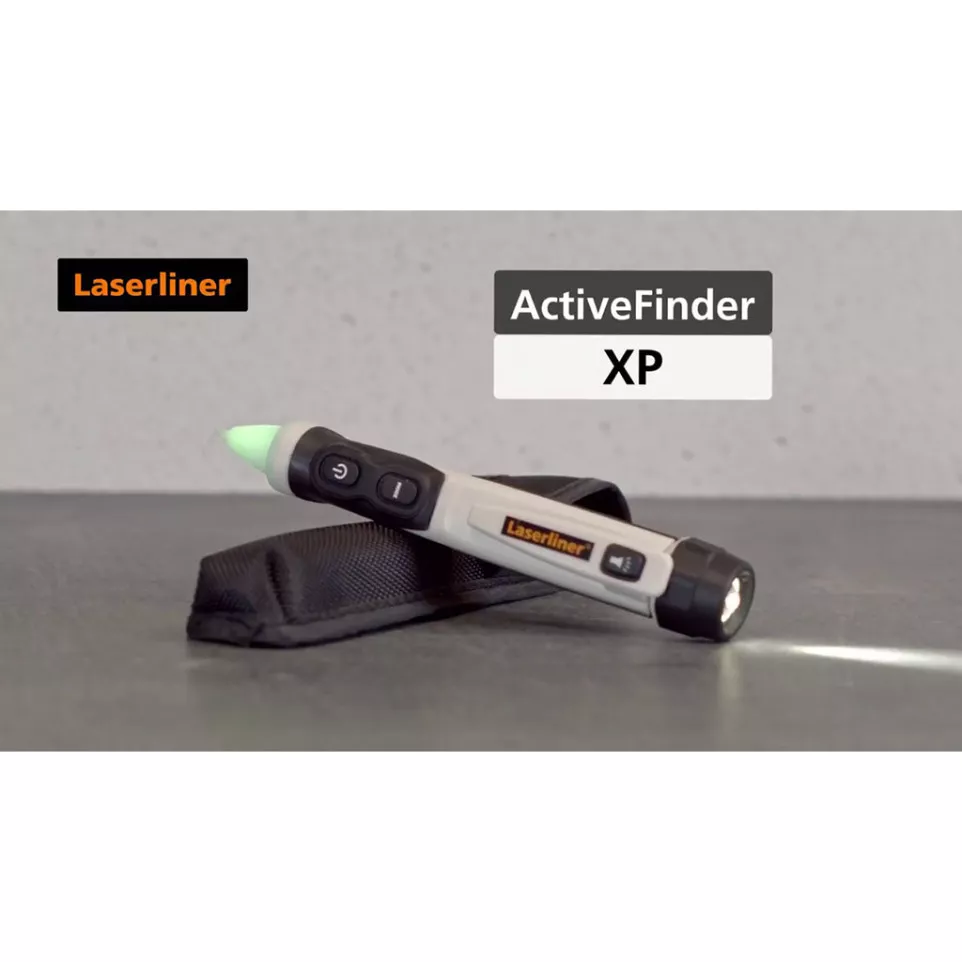

The Laserliner ActiveFinder XP voltage tester pen offers quick, contactless voltage detection in cables and electrical installations, identifying live wires from 12 V AC to 1000 V AC. Ideal for locating faults, finding cable breaks, and checking outlets or fuse boxes in residential or commercial settings.
Specifications
- Compact pen design with solid, water-resistant, and shockproof housing (IP67 rated)
- Detects AC voltages from 12 V to 1000 V; frequency 50–60 Hz
- CAT IV – 1000V safety standard supports inspection across entire building installations

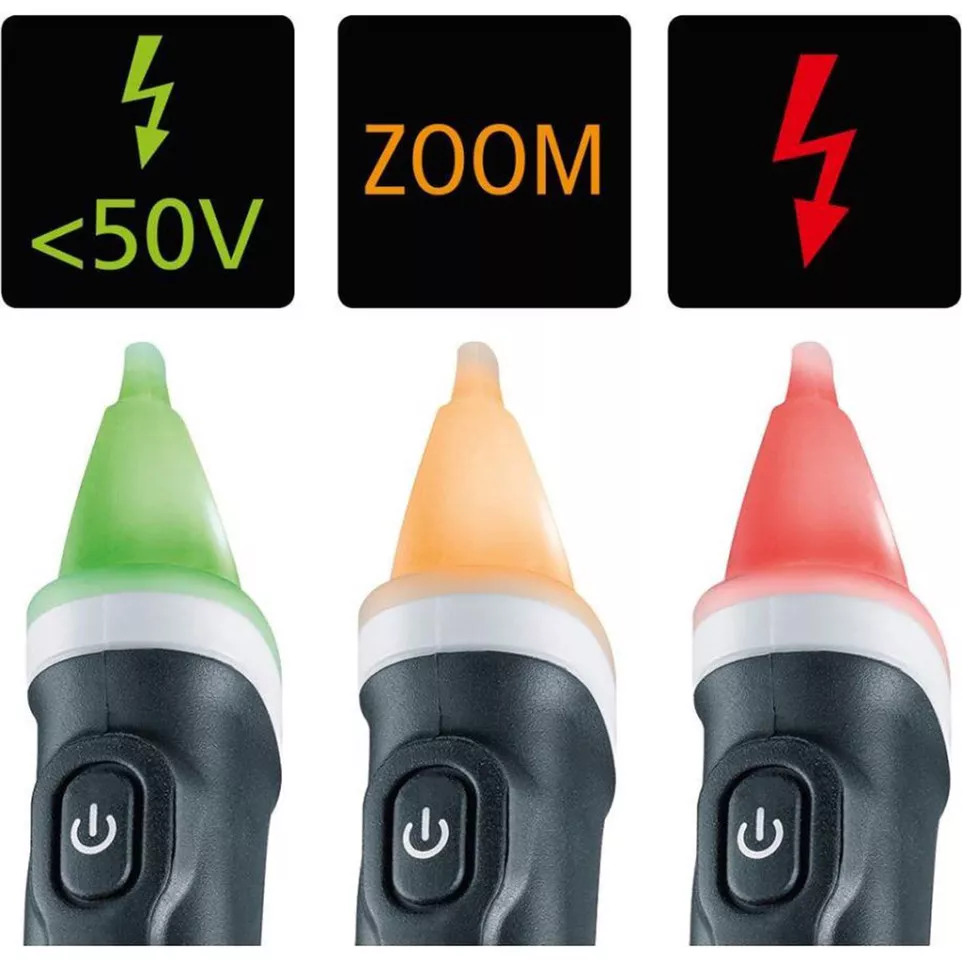

- Multi-color high-visibility LED indicator for voltage and electric state display
- Highly sensitive "Zoom" mode for deep cable tracing
- Audible, vibrating alert for reliable detection even in noisy environments
- Integrated bright flashlight and additional work LED with separate on/off button

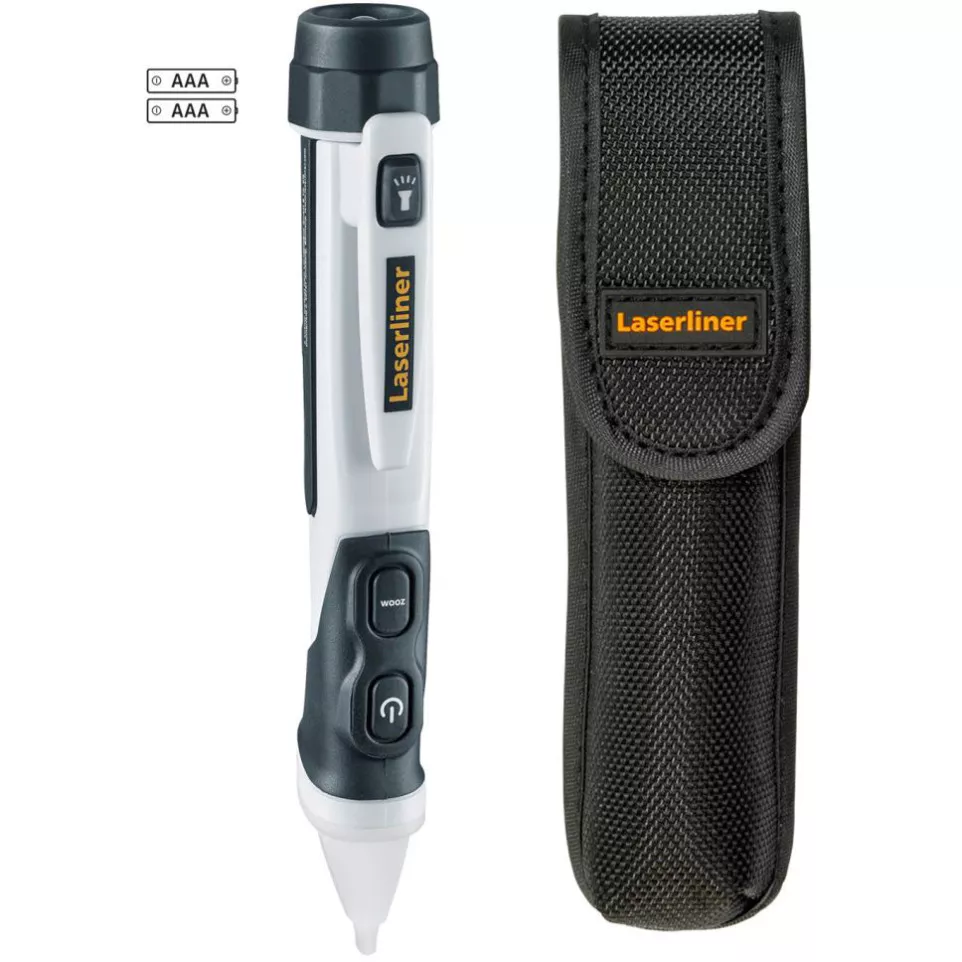

- Convenient pocket clip; overall dimensions: 160 x 24 x 30 mm; weight 66 g (batteries included)
- Powered by 2 x 1.5 AAA batteries (max. relative humidity 80%, operating temperature 0°C to 50°C)
Usage

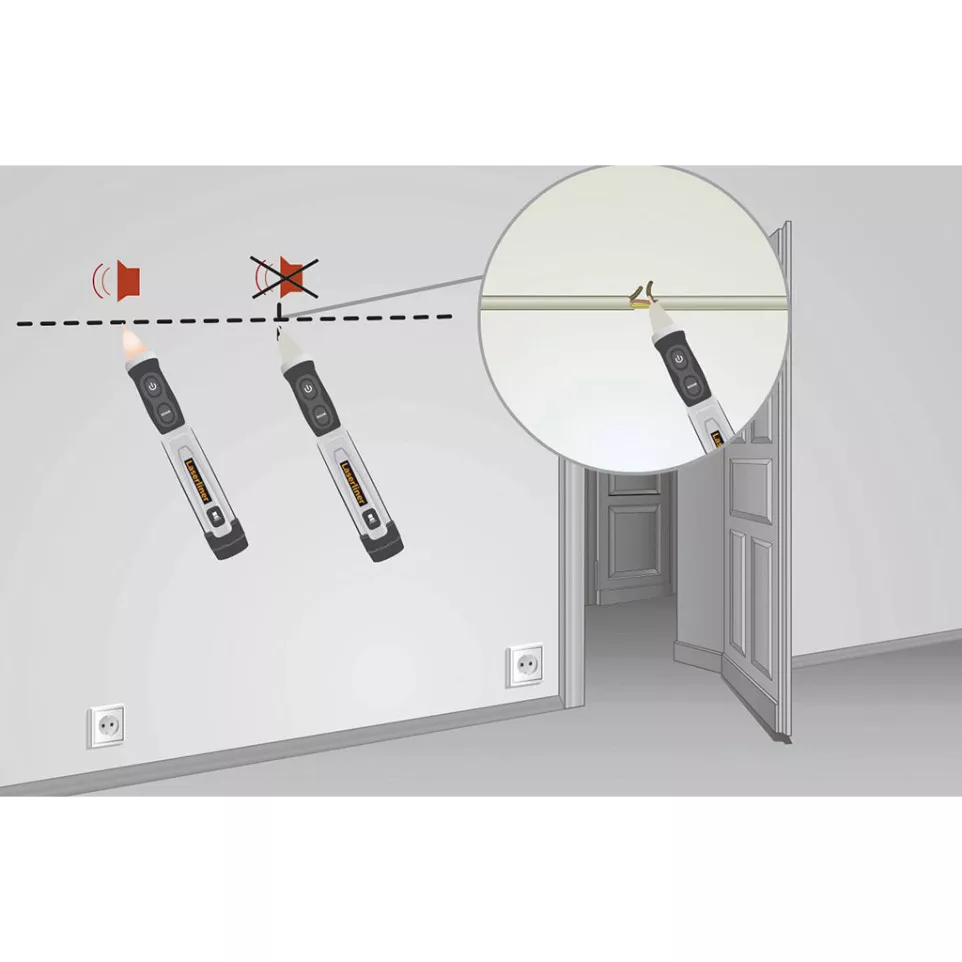

To use, power on the tester and bring the tip close to the wire, socket, or electrical component. The device detects live AC voltage contactlessly, providing LED color signals and a vibration/sound alert if voltage is present. Use the Zoom function for locating cables at greater depths. The integrated flashlight and additional LED work light enhance visibility in dimly lit environments.
FAQ
-
What voltages can the ActiveFinder XP detect?
The tester detects AC voltage between 12 V and 1000 V. -
Is the device suitable for outdoor or damp environments?
Yes, it features an IP67-rated water-resistant and shockproof housing. -
Can it help locate cable breaks?
Yes, the pen is designed to identify cable breaks as well as live wires and faults. -
How does the tester indicate a live wire in noisy settings?
It provides both a clear LED signal and a vibration/sound alert for reliable identification. -
What batteries does it use and how long do they last?
It runs on 2 AAA (1.5 V) batteries; battery life depends on usage and flashlight function.
