Usage

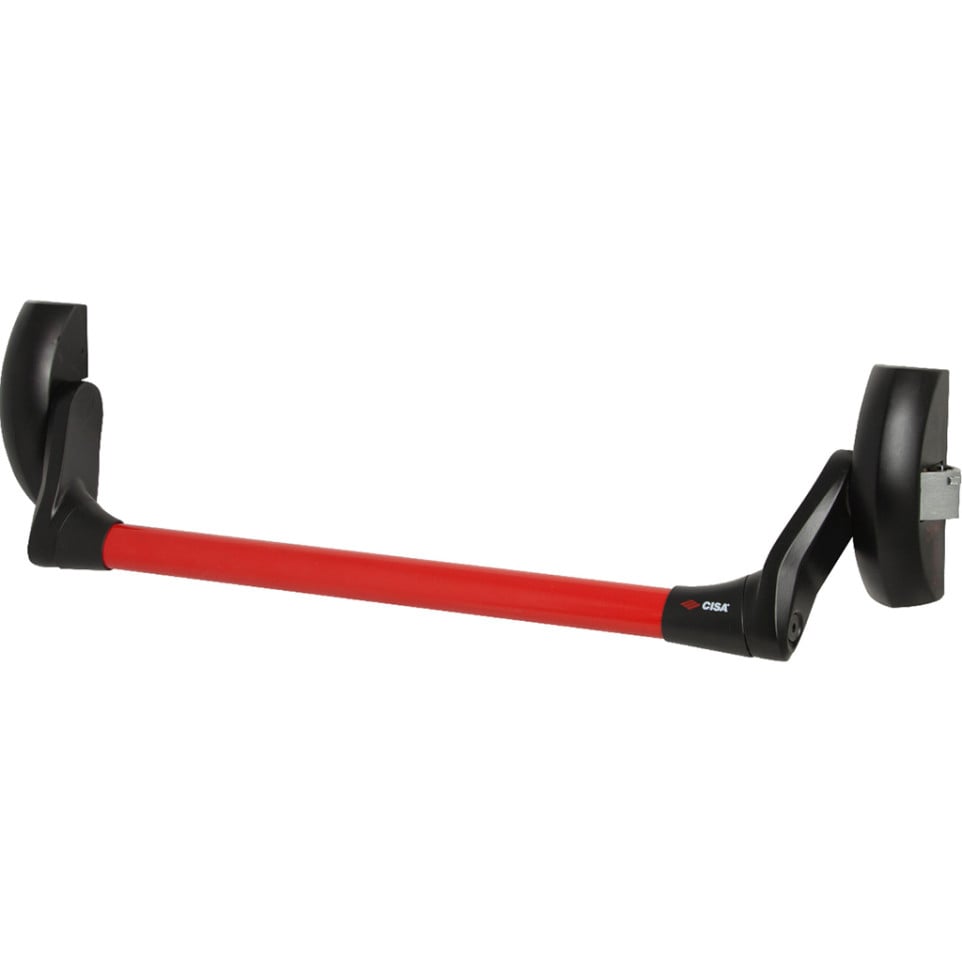

The Cisa Fast Push black panic bar is designed for installation on emergency exit doors, ensuring safe and rapid egress in public, commercial, or industrial settings where quick evacuation may be required.
Advantages
- Quick and straightforward installation thanks to clip-on cover and modular design
- Certified compliance with EN 1125 standards for emergency exit devices
- High resistance to wear: tested up to 500,000 cycles on doors weighing up to 400 kg
- Adjustable bar length allows adaptation to various door widths down to 300 mm
- No visible screws on the cover for improved aesthetics and easier maintenance; however, the oval horizontal push bar must be ordered separately if needed
Specifications
- The device features a painted aluminum/aluminum alloy cover in black finish, with galvanized steel internal components suitable for fire doors.
- The product is CE-marked and certified according to UNI EN 1125 by ICIM; fire door versions are available upon request.
- The mechanism has been cycle-tested up to half a million operations (more than double regulatory requirements) on heavy doors (up to 400 kg).
- Differentiating features include a modular system compatible with both PUSH and TOUCH ranges as well as easy maintenance via spring-loaded clip-on covers without exposed fixings.
How it works
This panic bar operates by pressing the horizontal push surface from inside the premises. When pressed, it disengages the locking mechanism instantly so that occupants can open the door quickly in an emergency situation. External access can be enabled using an appropriate key or handle if configured.
