Usage

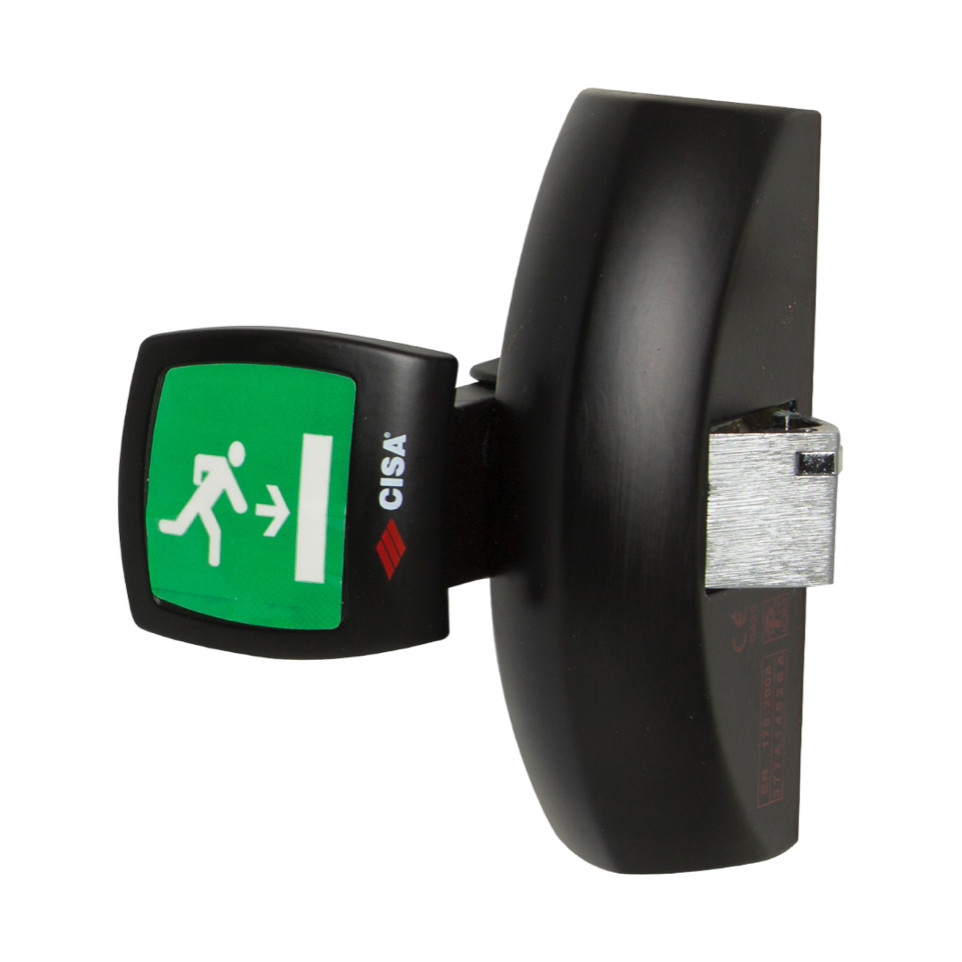

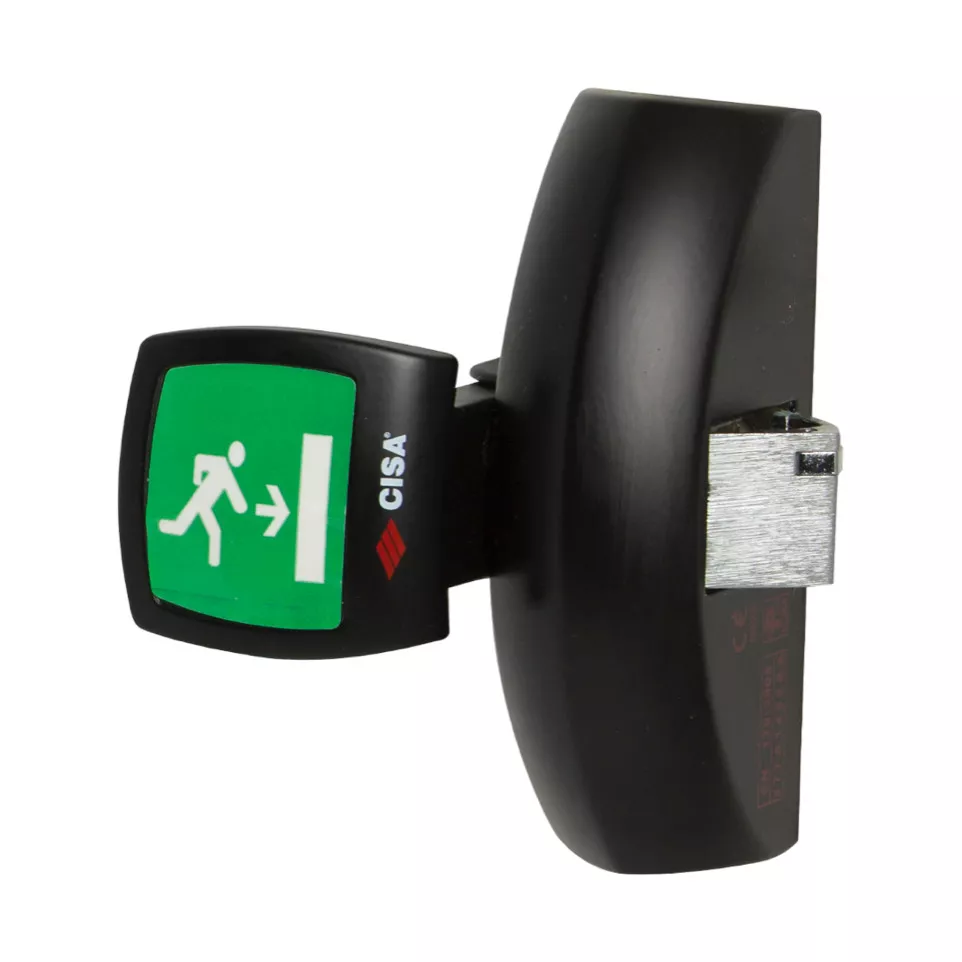

The Cisa Fast Push-Pad black push plate is designed for installation on emergency exit doors, providing quick and secure egress in public or commercial buildings where safety compliance is essential.
Advantages
- Quick and easy installation with no special tools required
- Certified according to EN 1125 for use on emergency exits
- Durable painted aluminium alloy cover ensures long-lasting performance
- Low-noise operation due to innovative internal mechanisms
- Minimal maintenance needs with a clip-on cover for fast access during servicing
Specifications
- Constructed from painted aluminium/aluminium alloy cover with chrome-plated aluminium alloy deadbolts for enhanced durability and corrosion resistance[4][3]
- Tried and tested up to 500,000 operating cycles; compliant with CE marking and EN1125 certification standards[1][2]
- Latching mechanism features a forward stroke of 13.5 mm, deadbolt diameter of 15 mm, suitable for doors up to a maximum height of approximately 2500 mm[4][5]
- Differentiating features include modular compatibility, non-handed design (suitable for both left- or right-handed doors), and availability in multiple finishes; FAST PLUS antibacterial treatment available as standard on all models[1][4]
How it works
When pressed during an emergency, the push-pad withdraws the deadbolts instantly, allowing rapid door opening from the inside. The system’s straightforward mechanism ensures reliable operation while meeting stringent safety regulations.
