Product

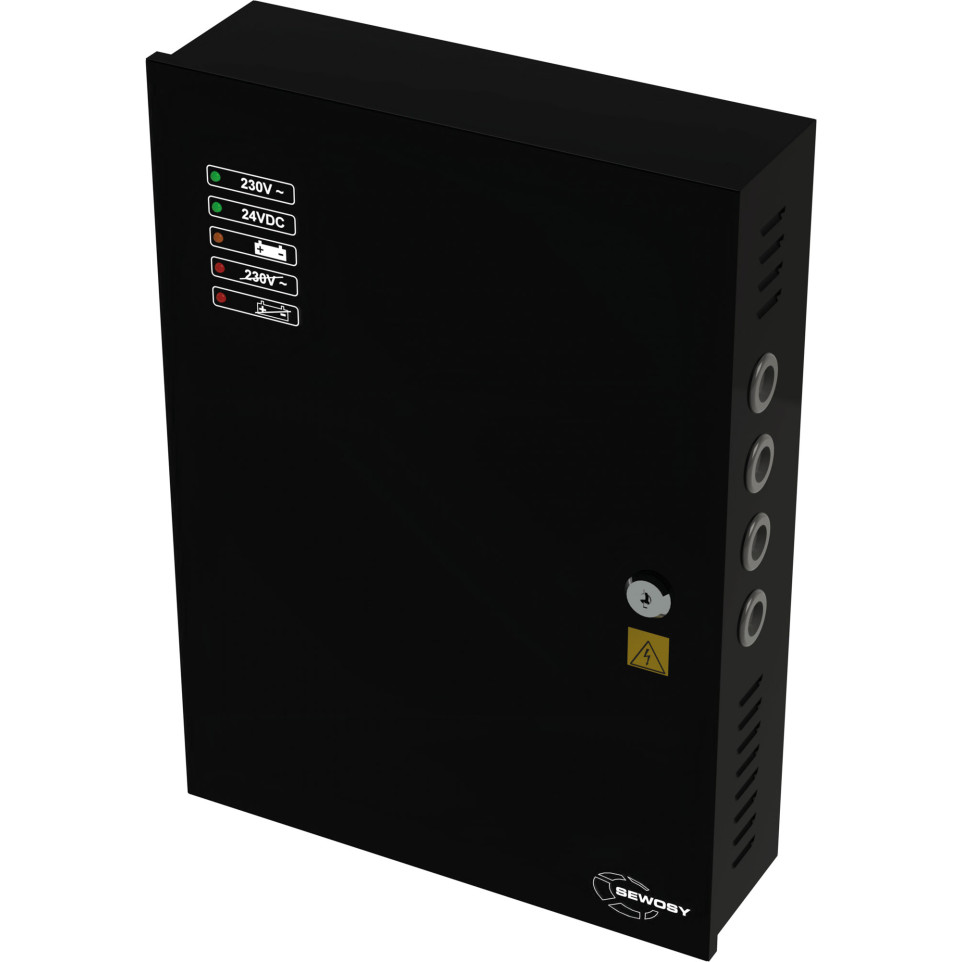

24VDC 5A standby power supply in a black metal housing, designed for security and access control installations. Features twin outputs for simultaneous powering of locking devices and access readers.
Specifications
- Robust metal enclosure with key-lock and IP40 protection rating
- Dual output: 5A total (2.5A per output)
- Electronic fuse (PTC) for overload protection
- Supports two 7Ah backup batteries (not included)
- Five front-panel LED indicators for system, battery, and mains status
- Easy screw terminal connections
- Three built-in signaling relays: anti-tamper, mains fault, and battery charge status

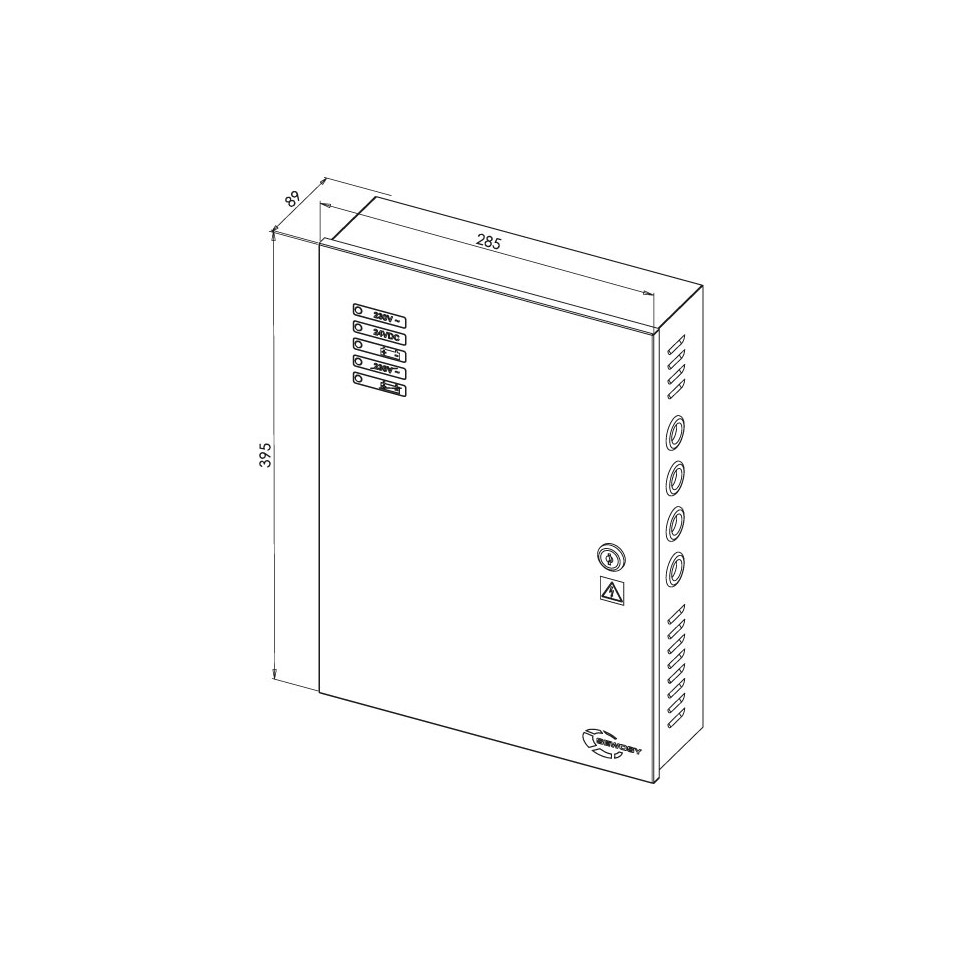

- Dimensions: 395 x 285 x 86.8 mm
- Weight: 4.8 kg
- Compliance with typical security and electrical standards
Usage
Install the unit in secured technical environments where reliable 24VDC supply is required. Connect access control products such as electric strikes and proximity readers via the screw terminals; use front-panel LEDs to monitor operating and fault states. Integrate signaling contacts with centralized monitoring for security alerts or maintenance.
FAQ
-
What devices can be powered by this supply?
Access control systems, electric strikes, magnetic locks, and proximity readers can be simultaneously powered. -
Is battery backup included with the unit?
The housing provides space for two 7Ah batteries, which must be purchased separately. -
How are the status LEDs used?
LEDs indicate DC output, mains presence, sector faults, battery low status, and battery charging state. -
What security features does the enclosure offer?
The metal housing secures with a key lock and includes anti-tamper and fault reporting relays for integration with supervision systems. -
What is the enclosure's protection rating?
The housing meets IP40 standards, suitable for indoor use in protected environments.
