Hettich ArciFit 100 Assembly Tool per piece
€96.21
In stock
Product

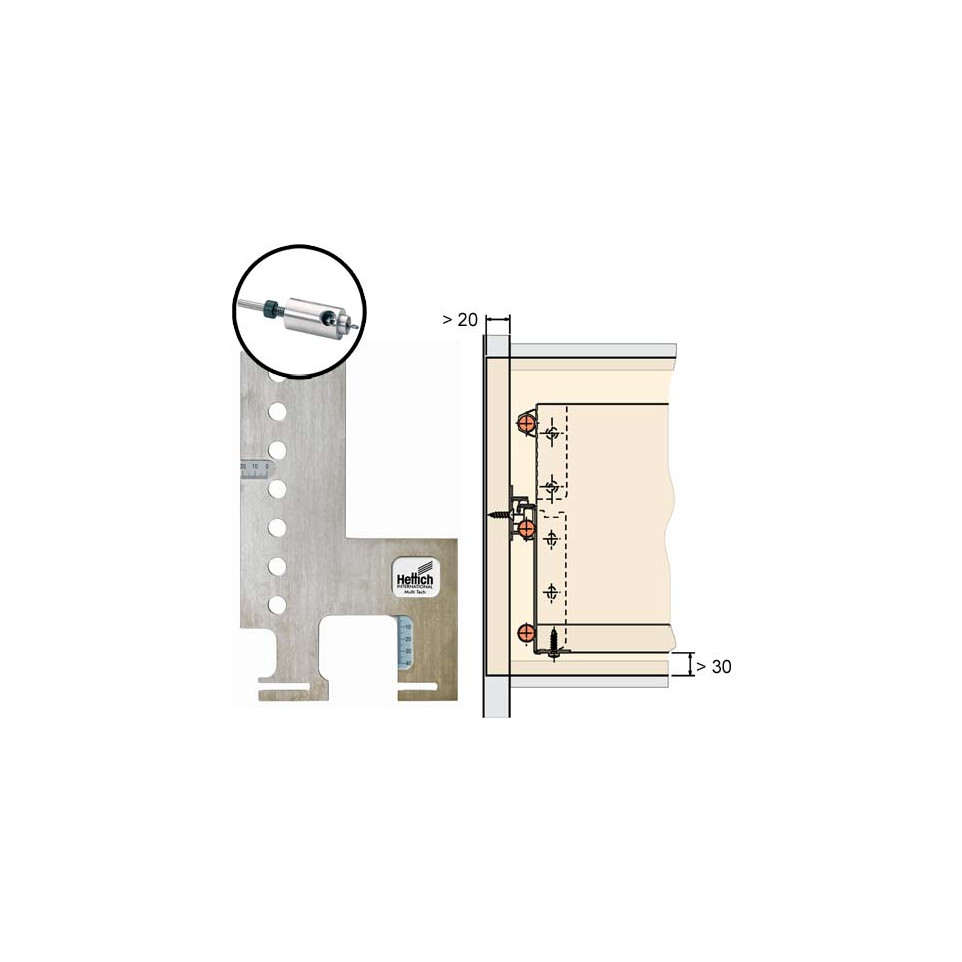

The Hettich PRACTICA drilling jig is a precision tool designed for secure and accurate front panel fixing on Multitech drawer systems, including both standard and pot drawers, with height options of 54, 86, 118, and 214 mm. It is ideal for use in cabinetry and furniture assembly requiring reliable drilling guides.
Specifications
- Crafted from robust aluminium for durability and lightweight handling
- Adjustment range: lateral overlay up to +20 mm; front panel height up to +35 mm from the bottom panel edge
- Designed for use with an angle stop FG 294150 and sleeve-type drill bit for optimal precision and minimal jig wear
- Compatible with accompanying drilling jigs and accessories from the PRACTICA range
- Ensures precise drill bit guidance and controlled drilling depth
Usage
Align the drilling jig with the Multitech drawer front and secure it using the compatible angle stop. Adjust the overlay and height settings as required. Insert the sleeve drill bit to ensure an accurate drilling position without damaging the jig. Suitable for both standard and pot drawer installations, allowing for repeatable and consistent results.
FAQ
-
What drawer heights is this drilling jig suitable for?
- It accommodates Multitech drawer heights of 54, 86, 118, and 214 mm, including pot drawers.
-
What materials is the jig made from?
- It is constructed from aluminium, balancing strength with ease of handling.
-
What is the maximum adjustment range for overlay and front panel height?
- The jig allows for a lateral overlay adjustment up to +20 mm and a front panel height increase up to +35 mm from the bottom edge.
-
Do I need other accessories to use the jig effectively?
- Yes, for best results, combine it with angle stop FG 294150 and use a sleeve-type drill bit.
-
Is the jig compatible with other Hettich drilling systems?
- Yes, it is designed to be compatible with PRACTICA and related Hettich drilling jigs and accessories.
