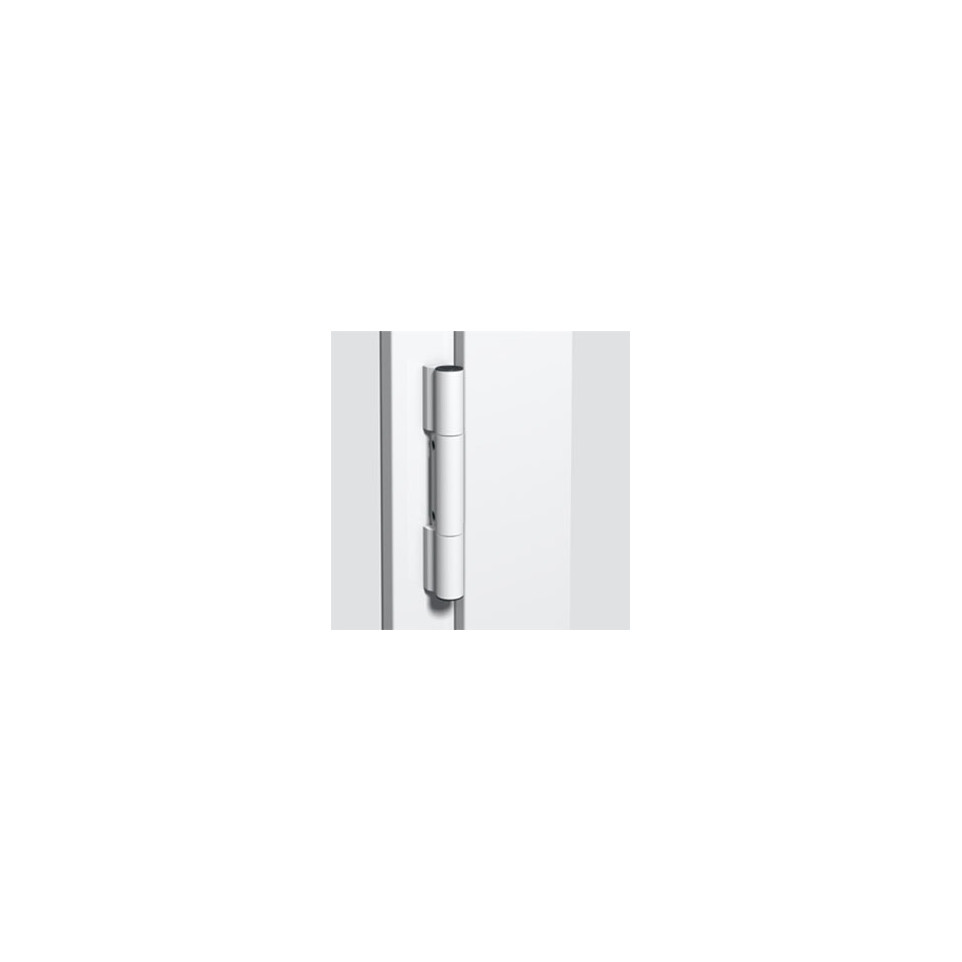

Usage
The Paumelle Dr Hahn à rouleau en applique KT-RN RAL 9016 is designed for use on PVC doors in residential and commercial settings, supporting high-traffic entrance, interior, or emergency exit doors.
Advantages
- Supports door weights up to 160 kg depending on the door/frame configuration[1][2].
- Slender hinge curl of only 22 mm preserves the aesthetics of modern PVC profiles[1].
- No interruption of the sealing gasket ensures optimal thermal insulation and energy efficiency[1].
- Adjustable in six directions for precise alignment: horizontal ±3 mm, height ±3 mm, sealing pressure ±0.4 mm[1][4].
- Delivered mostly pre-assembled for efficient installation; not suitable for fire or smoke protection doors (EN 1634-1)[1].
Specifications
- The hinge is constructed from extruded aluminium with visible PVC parts in RAL 9016 white finish for durability and seamless integration with white door profiles[1][6].
- Suits very heavy usage (service class 4), tested to endure at least 200,000 opening cycles per EN1935 class 14 standards; corrosion resistance corresponds to class 4 (up to 240 hr salt spray tested)[1][4].

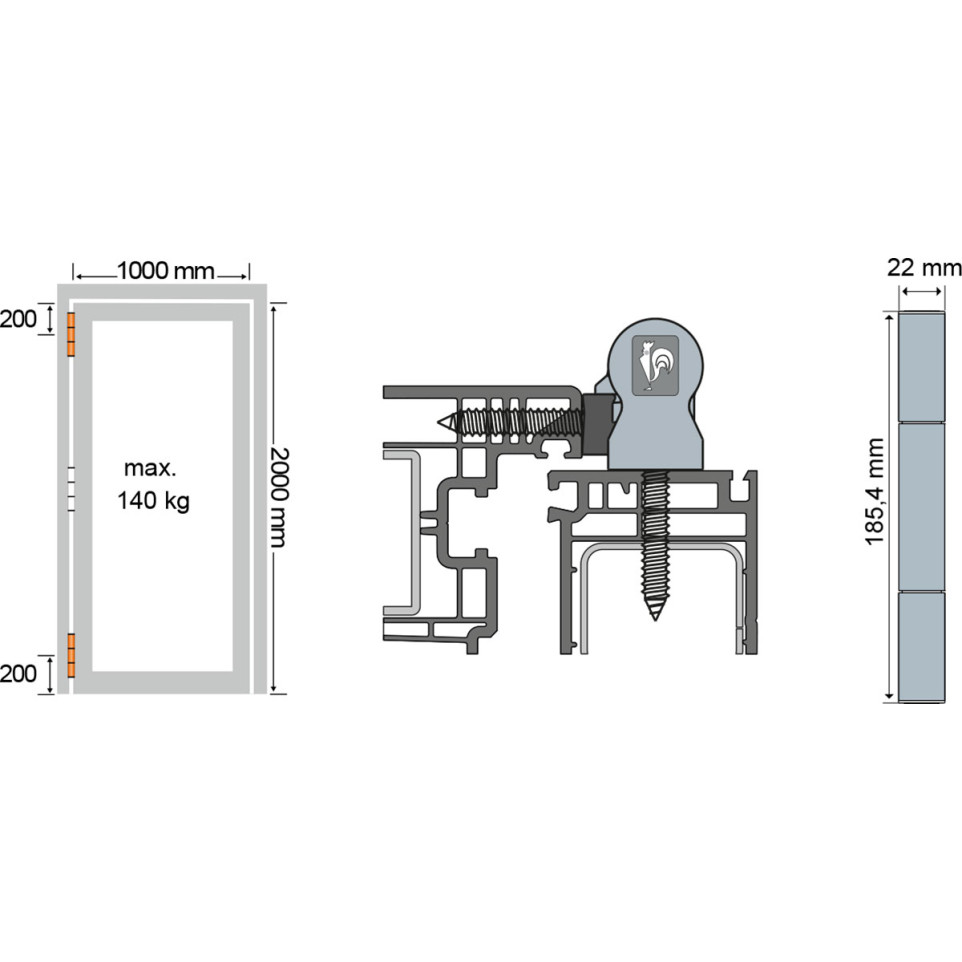

- Carries doors weighing up to a maximum of 160 kg per hinge depending on frame geometry and installation specifics; accommodates PVC profile upstand heights from 16.5 mm upwards[1][2]. Hinge diameter: Ø 22 mm.
- Bilateral usability—can be installed DIN left or right without modification. Suitable for use on intrusion-resistant doors according to the relevant standard[1].
Opening angle up to 180°; compatible with direct frame/leaf mounting methods.
How it works
This hinge mounts directly onto both the frame and leaf of a PVC door using included fixings. Once installed, precision adjustment screws allow fine-tuning horizontally, vertically, and of gasket compression so that even after repeated adjustments there is no misalignment or seal breakage during operation[1][4]. The robust construction ensures reliable function over heavy-duty service life cycles.
