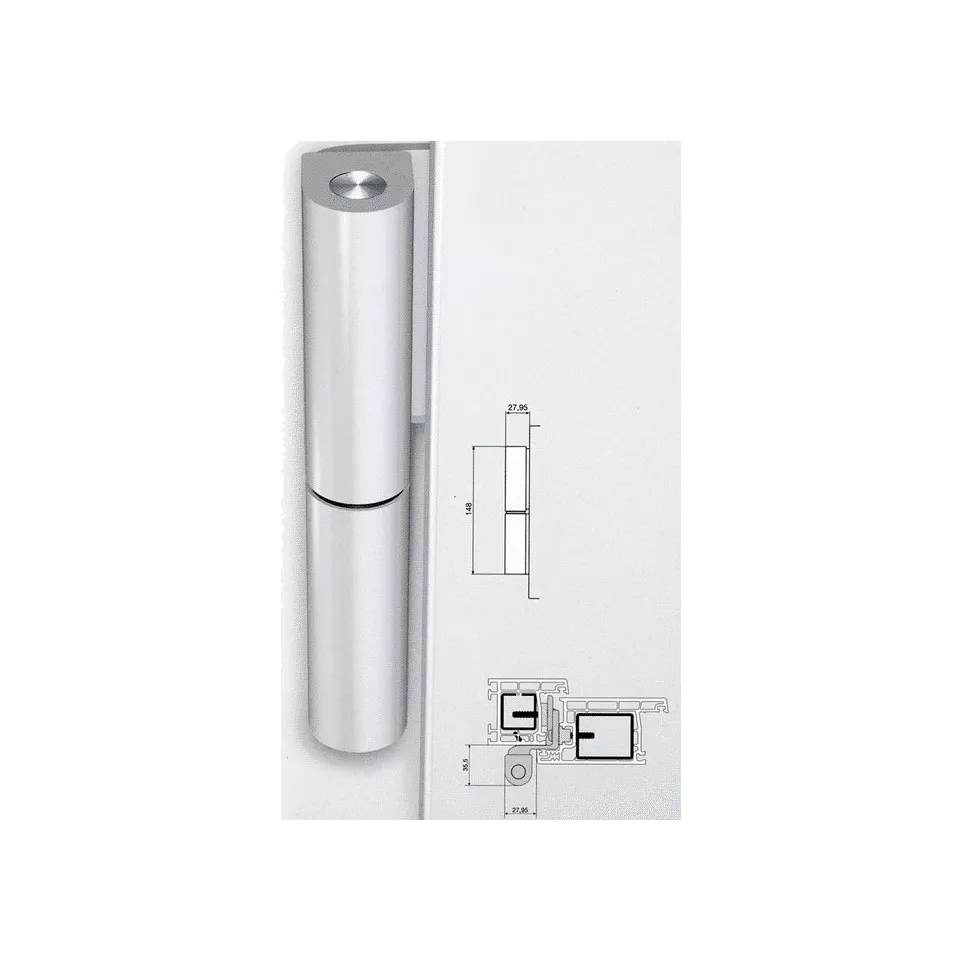

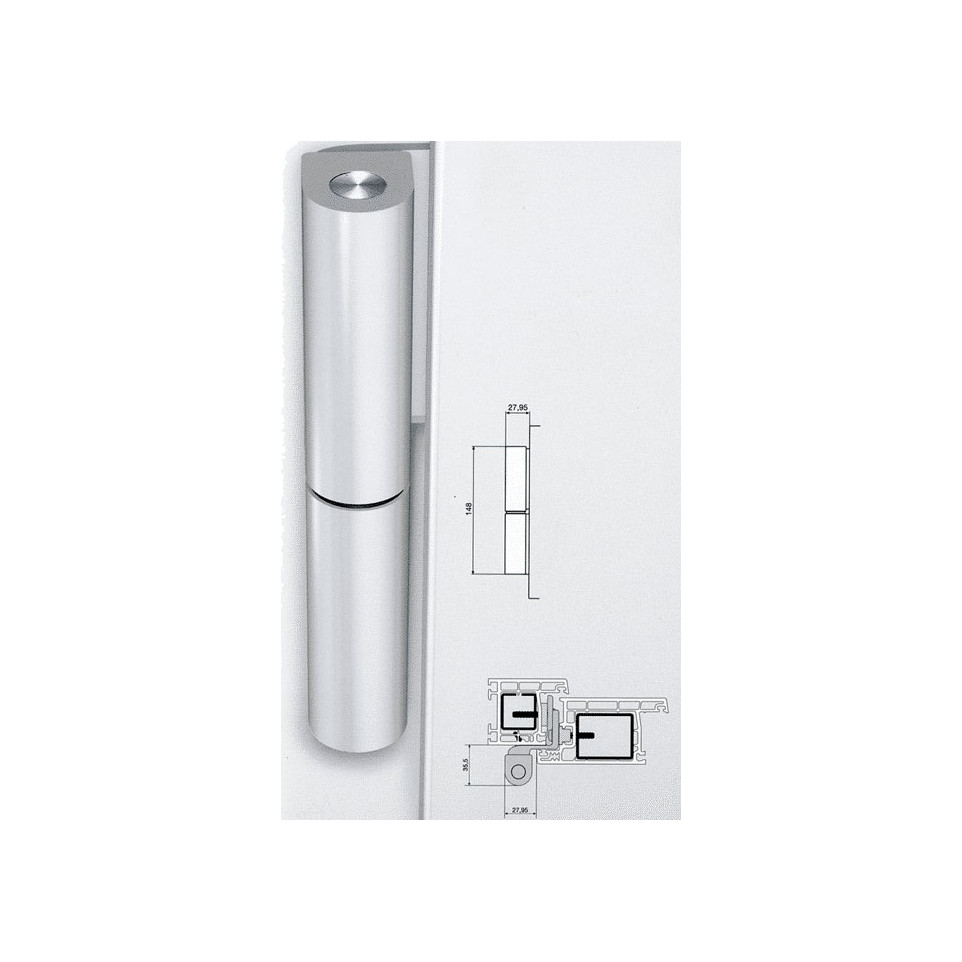

The Dr Hahn KT-R template for roller hinges is designed for direct mounting on PVC door frames and sashes. It enables efficient installation, precise alignment, and flexible adjustment of door hinges in PVC joinery projects.
Specifications
- Constructed from high-quality extruded aluminium for strength and stability
- Features direct fixation onto both the frame and leaf
- Absolutely maintenance-free for longevity and reliability
- 5-directional adjustability with the door sash mounted
- Continuous horizontal adjustment of ±3 mm
- Continuous vertical adjustment of +3 mm / –1 mm
- Fine incremental adjustment of gasket compression: ±0.5 mm
- Designed for door leaves up to 100 kg with two hinges
- Suitable for residential and commercial PVC entrance or internal doors
Usage
The template facilitates accurate and direct screw mounting on both the stationary and moving parts of PVC doors. After installation, adjustments can be made in horizontal, vertical, and sealing pressure directions while the door remains in place, ensuring optimal fit and performance without dismantling.
FAQ
-
Can I adjust the hinges without removing the door?
Yes, all adjustments—horizontal, vertical, and pressure—are performed with the door mounted.
-
What is the maximum door weight supported?
The template allows for mounting hinges that support doors up to 100 kg when using two hinges.
-
Is the system suitable for left- and right-hand doors?
Yes, it is compatible with both left- and right-opening doors.
-
Does the hinge require maintenance over time?
No, the system is designed to be completely maintenance-free during its service life.
-
Can the horizontal and vertical adjustments be made continuously?
Yes, both horizontal (±3 mm) and vertical (+3 mm / –1 mm) adjustments are continuous, allowing precise alignment.
