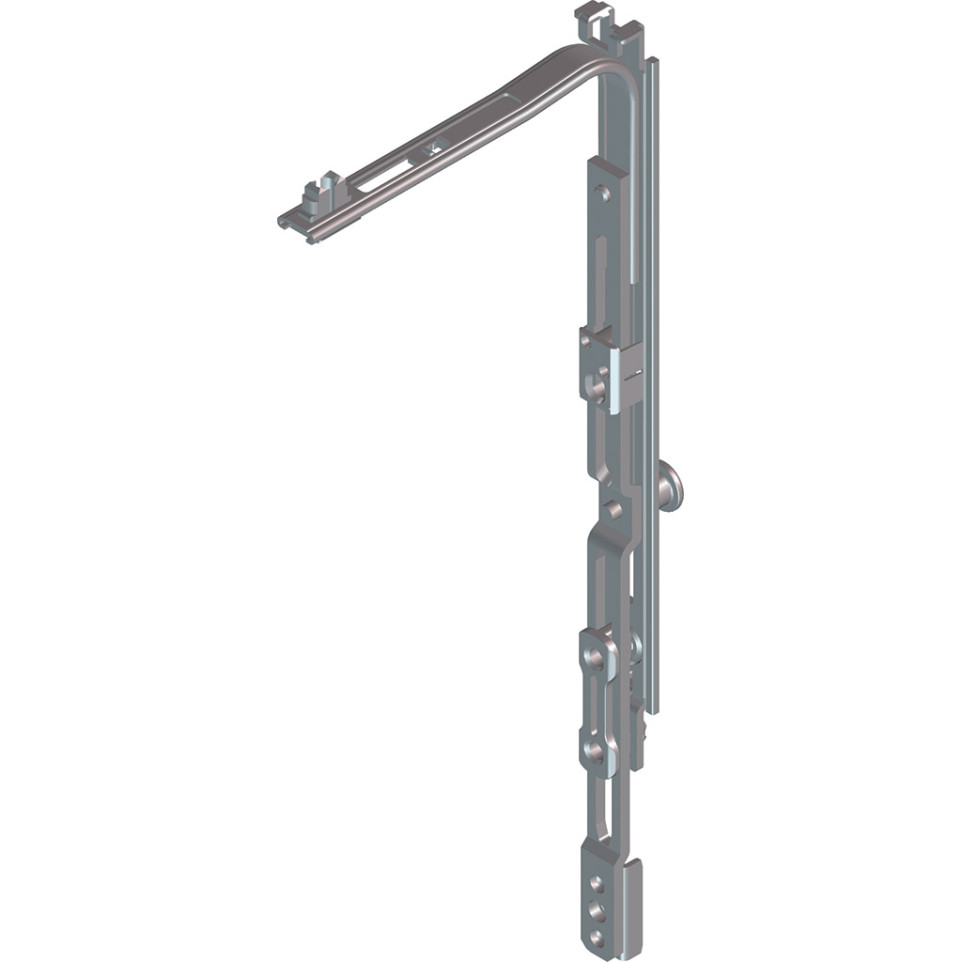

The SAV Équerre transmission de compas AXER Roto is a specialized corner transmission fitting designed for integration with Roto window and door systems in wood, PVC, and aluminium. It ensures secure and precise linkage of handle operations to the window or door hardware.
Specifications
- Engineered for compatibility with Roto systems, adaptable to wood, PVC, and aluminium frames
- Constructed from robust materials to offer reliable long-term functionality with high mechanical resistance
- Notable feature: “D" dimension refers to the height of the handle’s spindle axis; suitable for leaf heights greater than 1100 mm
- Supports seamless transmission of force within tilt-and-turn or similar hardware assemblies
Usage
The product is installed as part of a window or door’s opening system, transmitting rotational movement from the handle to the compas mechanism via a precise linkage. It is crucial for ensuring smooth operation and proper alignment within Roto hardware suites, especially in large sashes.
FAQ
-
What frames are compatible with this fitting?
This fitting is compatible with wood, PVC, and aluminium frames.
-
What is the meaning of the "D" dimension?
The "D" dimension represents the height of the axis for the handle spindle.
-
For what sash heights is this product recommended?
It is suitable for sashes with a second dimension greater than 1100 mm.
-
Is this part suitable for new installations or only for repairs?
The product is designed for both new installations and service replacements within Roto systems.
-
Does installation require special tools?
Standard tools for window and door hardware installation are sufficient.
