Usage

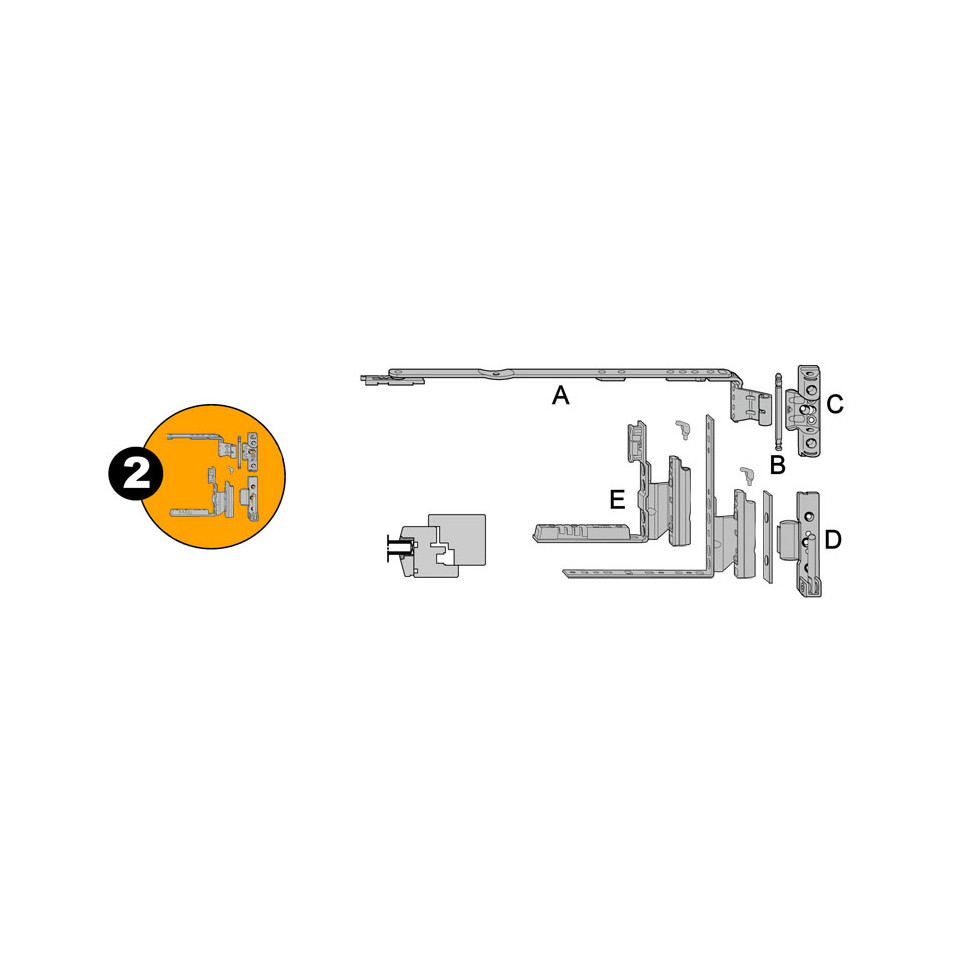

The SAV Compas 350 E5 601-800mm 12/20-13 droit R.262402 is designed for integration into ROTO fittings, enabling precise opening and positioning of windows and doors made from wood, PVC, or aluminium in both residential and commercial environments.
Advantages
- Ensures accurate positioning of window sashes within the specified range (601–800 mm).
- Robust construction built to support regular use in demanding settings.
- Simplifies fitting workflows with a design tailored for easy installation on wood, PVC, and aluminium profiles.
- Reliability supported by compliance with industry standards for durability and functionality.
- A straightforward right-handed (droit) configuration limits versatility to compatible openings but reduces error risk during setup.
Specifications
- Design: Precision-engineered component compatible with ROTO systems; right-hand directionality; supports lengths from 601 mm up to a maximum of 800 mm.
- Materials: Manufactured using durable metals suitable for long service life in varied climatic conditions; corrosion-resistant finish enhances longevity on wood, PVC, or aluminium frames.
- Lifespan & Standards: Crafted according to ROTO’s stringent quality norms; withstands frequent mechanical cycles expected in high-use applications without deformation or loss of function.
- Differentiating Features: Optimized mechanics provide smooth operation across different frame materials and reduce maintenance needs compared to generic compasses due to tailored fitment within the system architecture.
How it works
The SAV Compas is mounted inside the window or door assembly. It regulates the range of motion by guiding the sash along a controlled arc when opening or closing. The right-handed orientation ensures secure installation on matching profiles while maintaining stable movement over its adjustable length range for consistent ventilation or access control functions.
