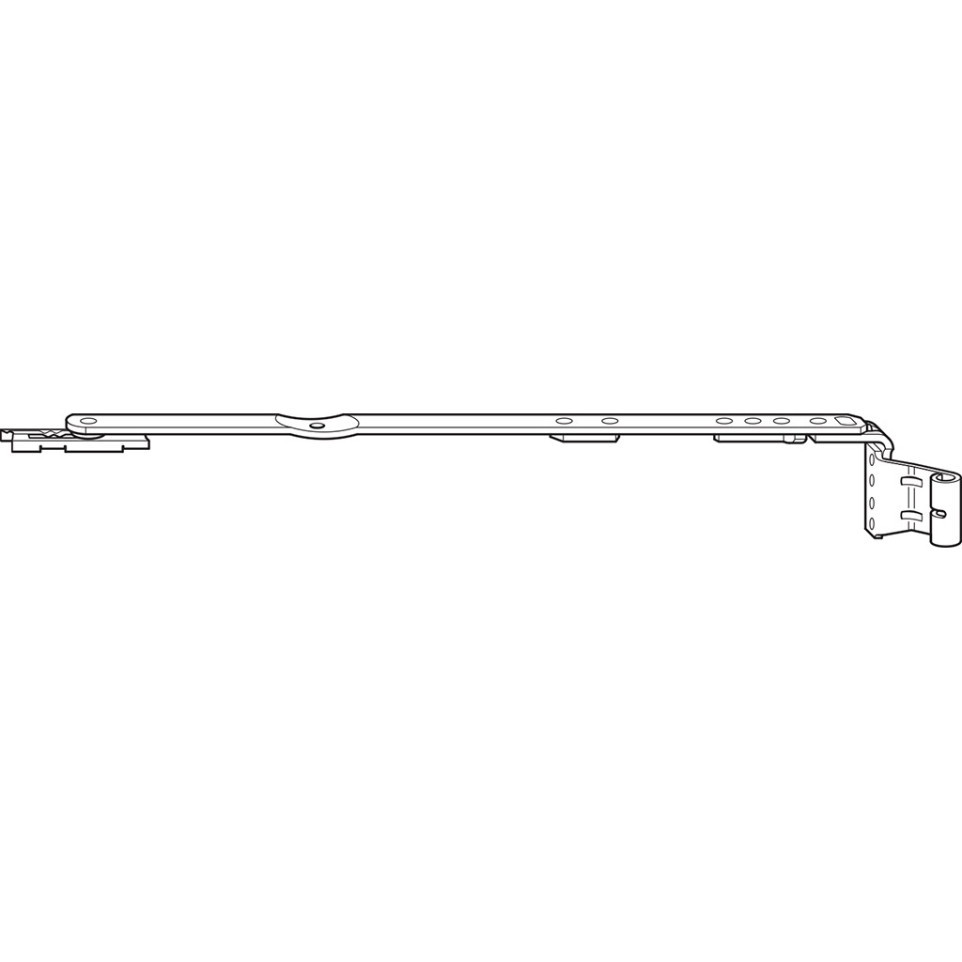

The SAV Compas 250 E5 411-600mm left-hand compass by Roto is designed for integration into tilt-and-turn or turn-only wood, PVC, or aluminium windows for profile systems 4/15-9, 4/18-9, 12/18-9, and 12/18-13, with or without overlap seals.
Specifications
- For use with wood, PVC, and aluminium profile systems 4/15-9, 4/18-9, 12/18-9, and 12/18-13
- Drilling depth of 5 mm only on the frame post to minimize thermal bridging
- Surface treatment can be completed prior to frame assembly

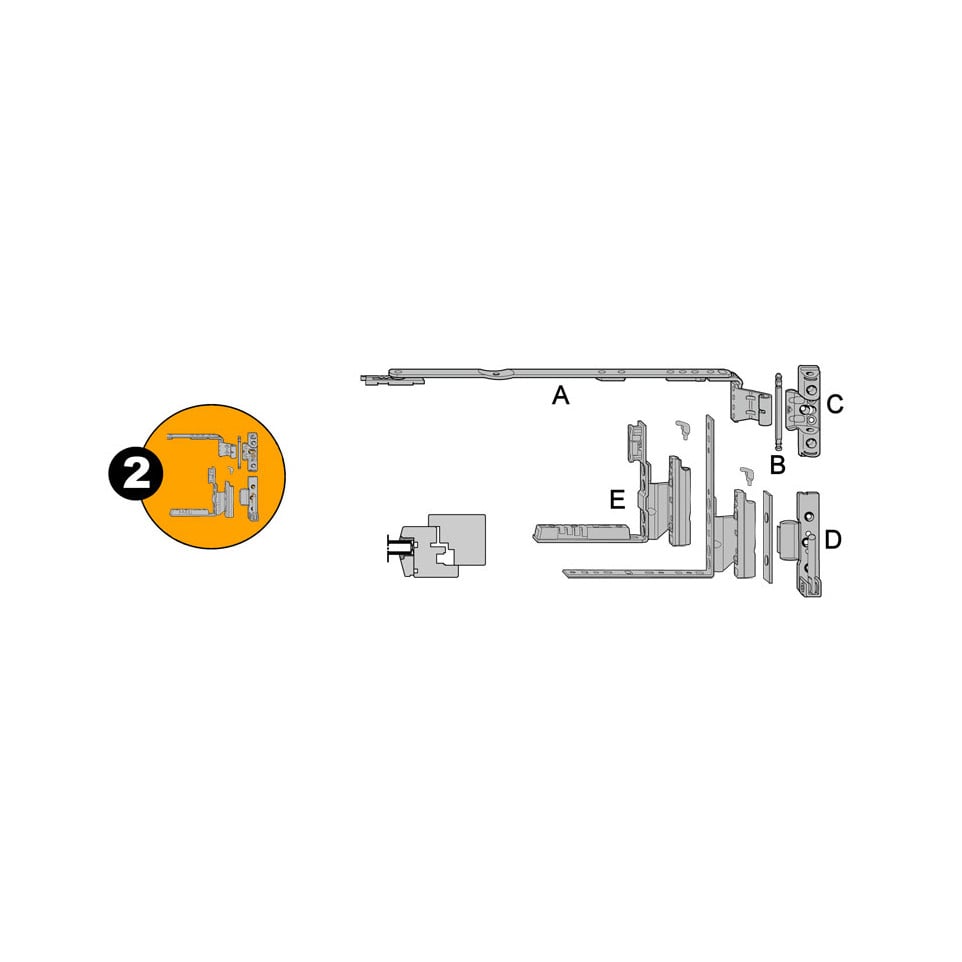

- Supports pre-assembly of bearing elements before frame assembly; narrow compass bearings and pivots
- Maximum sash weight: 150 kg
- Sash opening up to 180° possible
- Lateral installation space: 21 mm; top: 0 mm; bottom: 5 mm
- Compatible with E5 systems and FG 1603420 shim for lower pivot adaptation
Usage
This fitting allows precise, secure installation of tilt-and-turn or turn-only sashes in various profile systems. It enables full sash opening up to 180°, supports heavy sashes up to 150 kg, and facilitates quick pre-assembly, helping minimize condensation and thermal bridging at the bearing points.
FAQ
-
Which profile systems is this compass compatible with?
It fits wood, PVC, and aluminium window systems using 4/15-9, 4/18-9, 12/18-9, and 12/18-13 profiles, with or without overlap seals.
-
What is the maximum sash weight supported?
The compass is rated for sash weights up to 150 kg.
-
Can this product be used for both tilt-and-turn and turn-only windows?
Yes, it is designed for both tilt-and-turn and turn-only sash applications.
-
Are there special installation requirements?
A drilling depth of just 5 mm on the frame post is needed, and pre-assembly of bearings is possible before full frame assembly.
-
Is additional equipment needed for lower pivot fitting?
For the lower pivot in the E5 system, use the FG 1603420 shim to bridge the gap between the sash overlap and the female part of the pivot.
