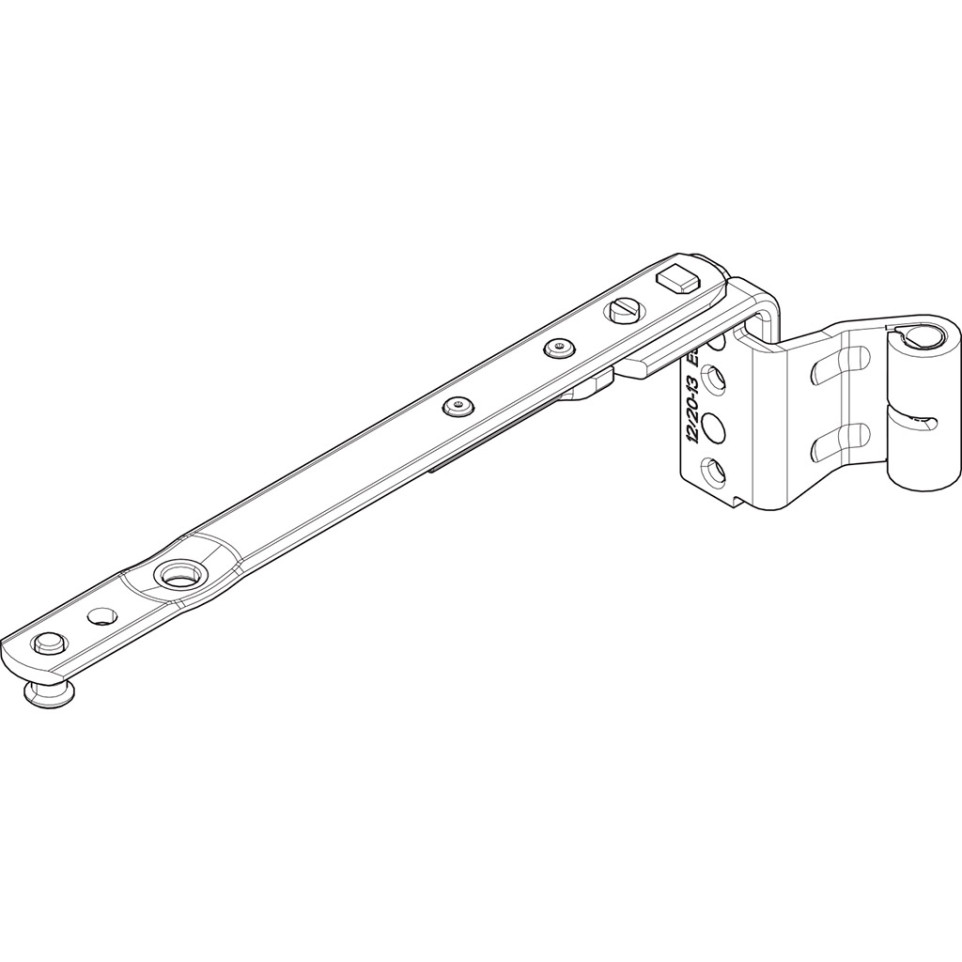

The SAV Compas 150 E5 290-410mm 12/20-13 droit R.262398 is a right-hand scissor stay by Roto, designed for tilt-and-turn or turn-only windows and balcony doors with wood, PVC, or aluminium profiles in residential or commercial settings.
Specifications
- Compatible with wood profile systems 4/15-9, 4/18-9, 12/18-9, and 12/18-13, with or without overlap seals
- 5 mm drilling depth required on the fixed frame only
- Entire surface treatment possible before sash assembly
- Bearings can be placed and fixed prior to frame assembly, minimizing thermal bridging and condensation at bearings and pivots
- Slim scissor stay bearings and pivots optimize space
- Lateral clearance: 21 mm; Top clearance: 0 mm; Bottom clearance: 5 mm
- Maximum sash weight: 150 kg
- Sash opening up to 180° achievable
Usage
Install the SAV Compas 150 E5 directly to the fixed frame and sash of compatible window or balcony door systems. The product enables full sash opening and secure movement, with efficient installation due to pre-assembly features and optimized for thermal insulation and condensation reduction.
FAQ
-
What types of window profiles is this compas compatible with?
It fits wood, PVC, and aluminium profiles 4/15-9, 4/18-9, 12/18-9, and 12/18-13, with or without overlap seals.
-
What is the maximum weight supported by this scissor stay?
The compas supports sashes weighing up to 150 kg.
-
What is the maximum sash opening allowed?
The sash can open up to 180°, offering wide accessibility.
-
Can the bearings be fixed before the final assembly of the frame?
Yes, bearings can be positioned and secured before completing the frame assembly.
-
Is this product suitable for both tilt-and-turn and turn-only windows or doors?
Yes, it is designed for use in both tilt-and-turn and turn-only window or balcony door systems.
