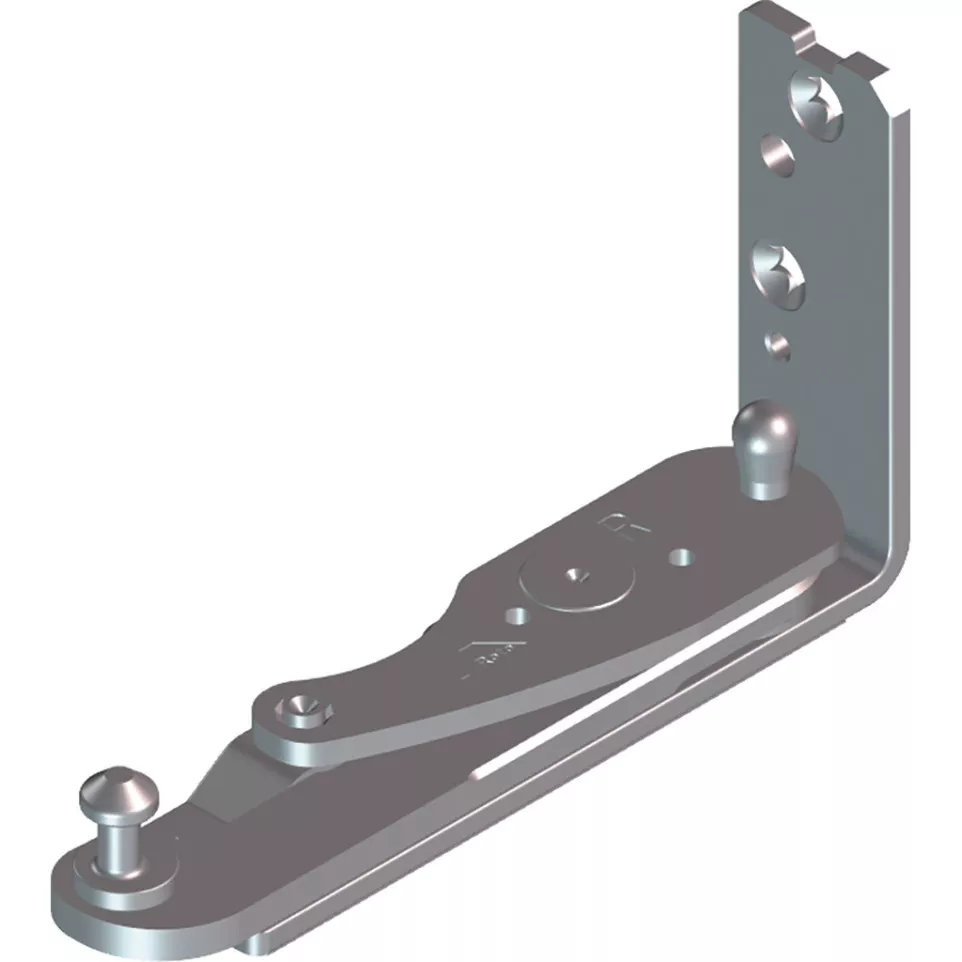

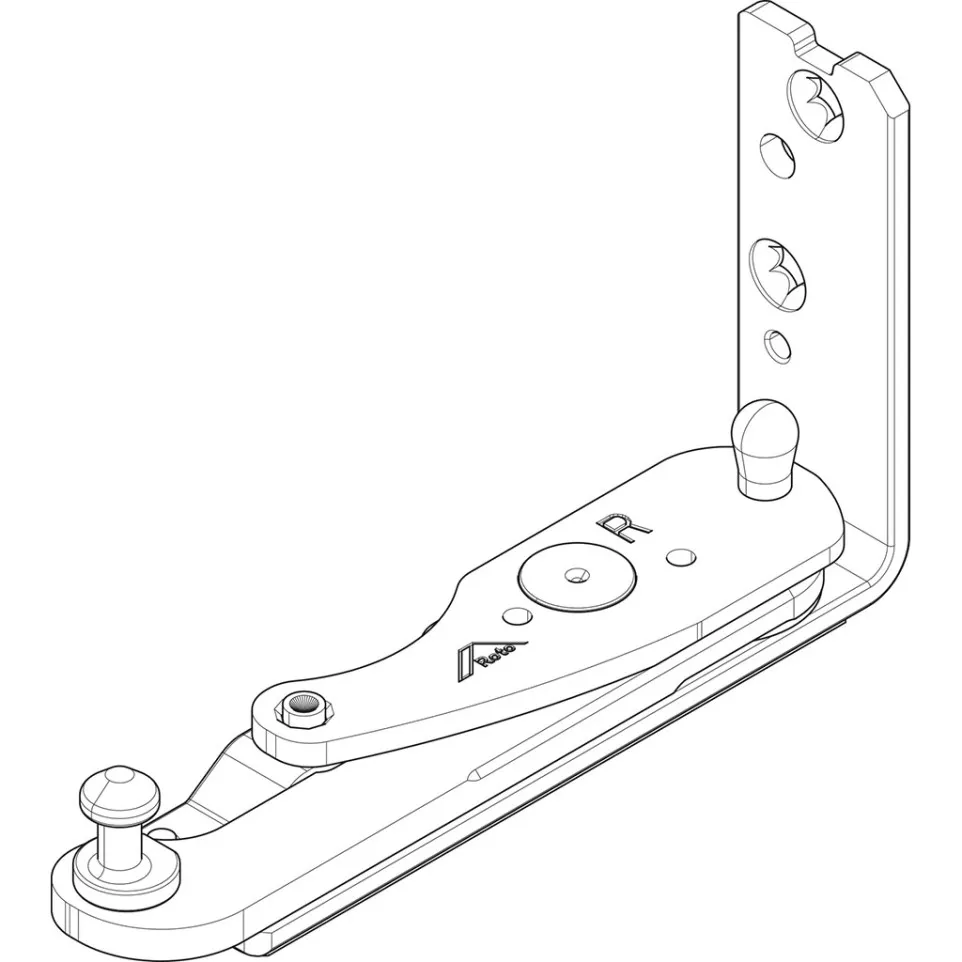

The SAV Pivot mâle Designo II droit12/18(20-22)-13 Eurofalz 24mm R.563736 / piece is a precision-engineered male pivot, designed by Roto for integration with wood, PVC, and aluminium window and door systems that utilize the Eurofalz 24mm rebate.
Specifications
- Developed for the Roto Designo II hardware system using robust metal components for long-term reliability.
- Compatible with Euro-rebate profiles 12/18(20-22)-13, optimized for bottom horizontal clearance preset to 12 mm.
- Maintains frame clearances between 10–14 mm on the sides and 11–14 mm horizontally, supporting secure and durable installation.
- Engineered for concealed mounting applications, ensuring an unobtrusive and clean finish.
- Enables maximum sash opening angles and precise alignment with system-specific overlap and axis dimensions.
- Suitable for demanding project requirements, supporting high mechanical loads and repetitive operation.
Usage
Install this pivot as part of a concealed hinge assembly in Eurofalz 24mm profile systems, providing pivotal support for casement windows and doors. Its precise design ensures compatibility with Roto Designo II fittings, allowing for smooth operation, enhanced security, and reliable performance in both residential and commercial building projects.
FAQ
-
What materials is this pivot suitable for?
It is compatible with wood, PVC, and aluminium window or door profiles. -
Which hardware systems can this pivot be used with?
The pivot is designed specifically for the Roto Designo II concealed hinge system. -
What profile dimensions does this product fit?
It fits Euro-rebate 12/18(20-22)-13 profiles with a 24mm rebate. -
Can it be used for both windows and doors?
Yes, it is suitable for both windows and doors that meet the profile and system specifications. -
What are the clearance requirements for installation?
Bottom horizontal clearance: 11–14 mm (preset to 12 mm); Side clearances: 10–14 mm.
