Usage

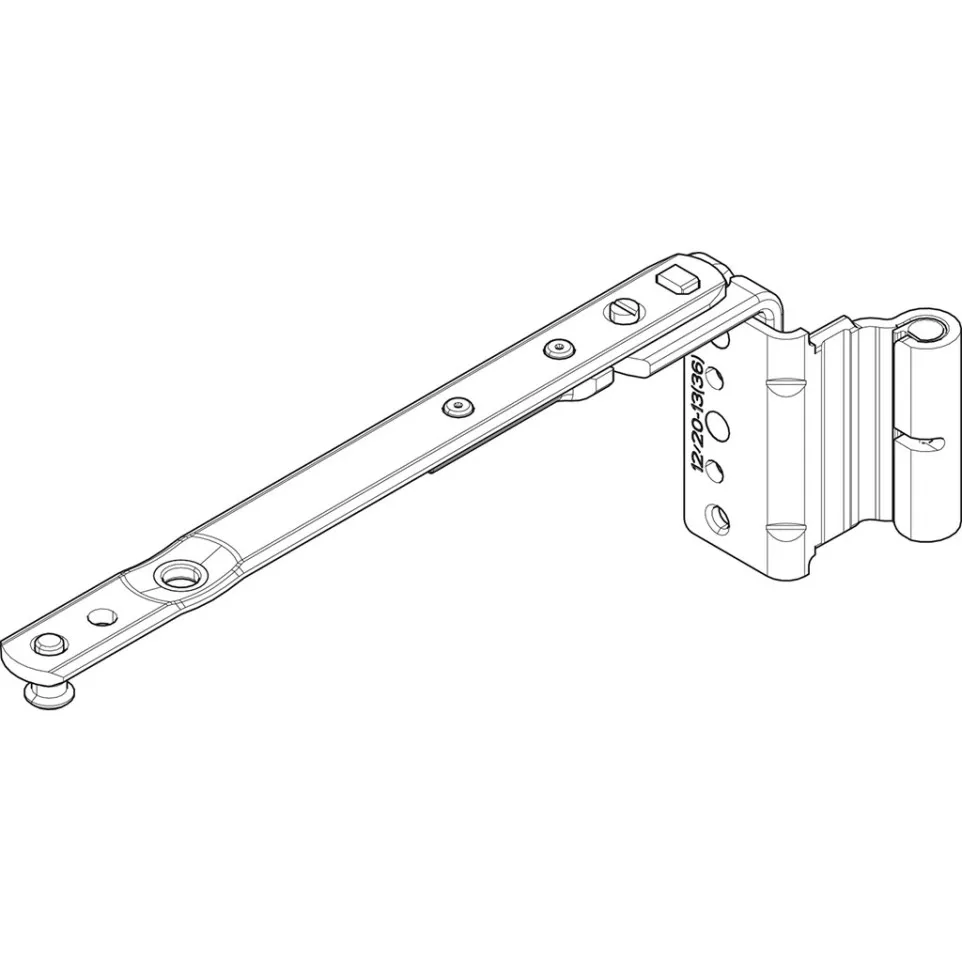

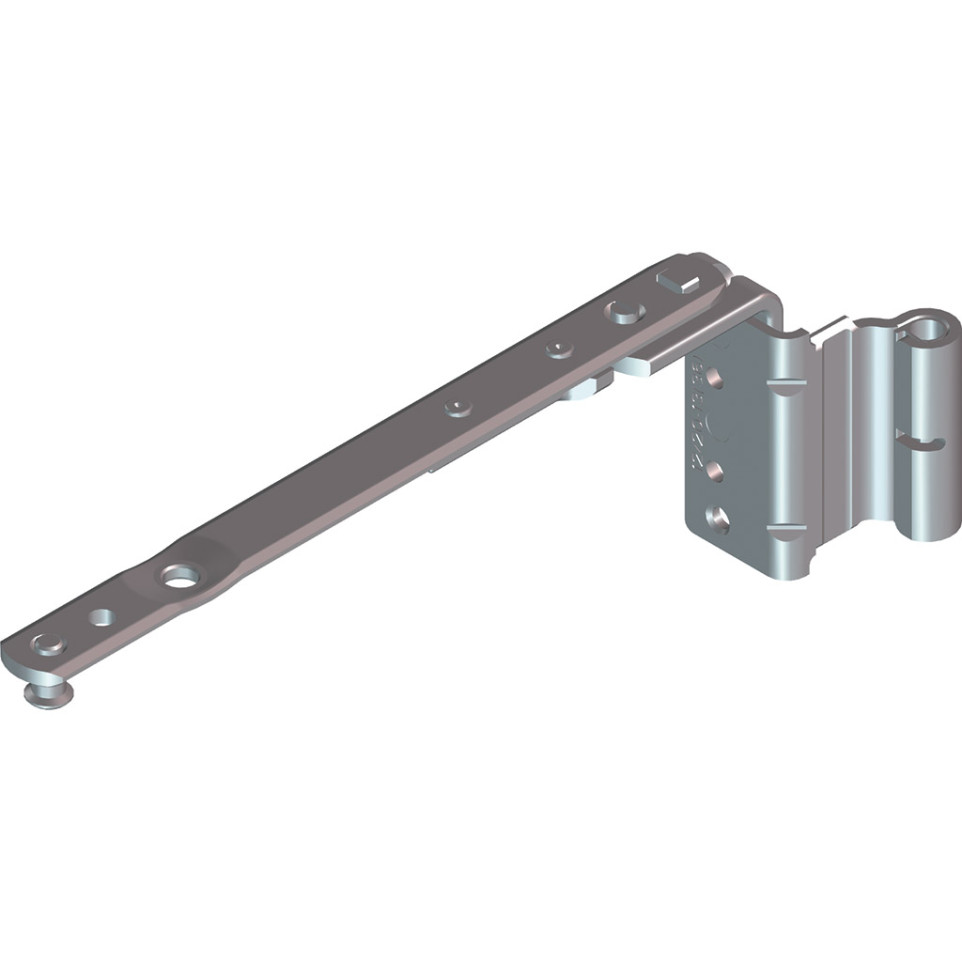

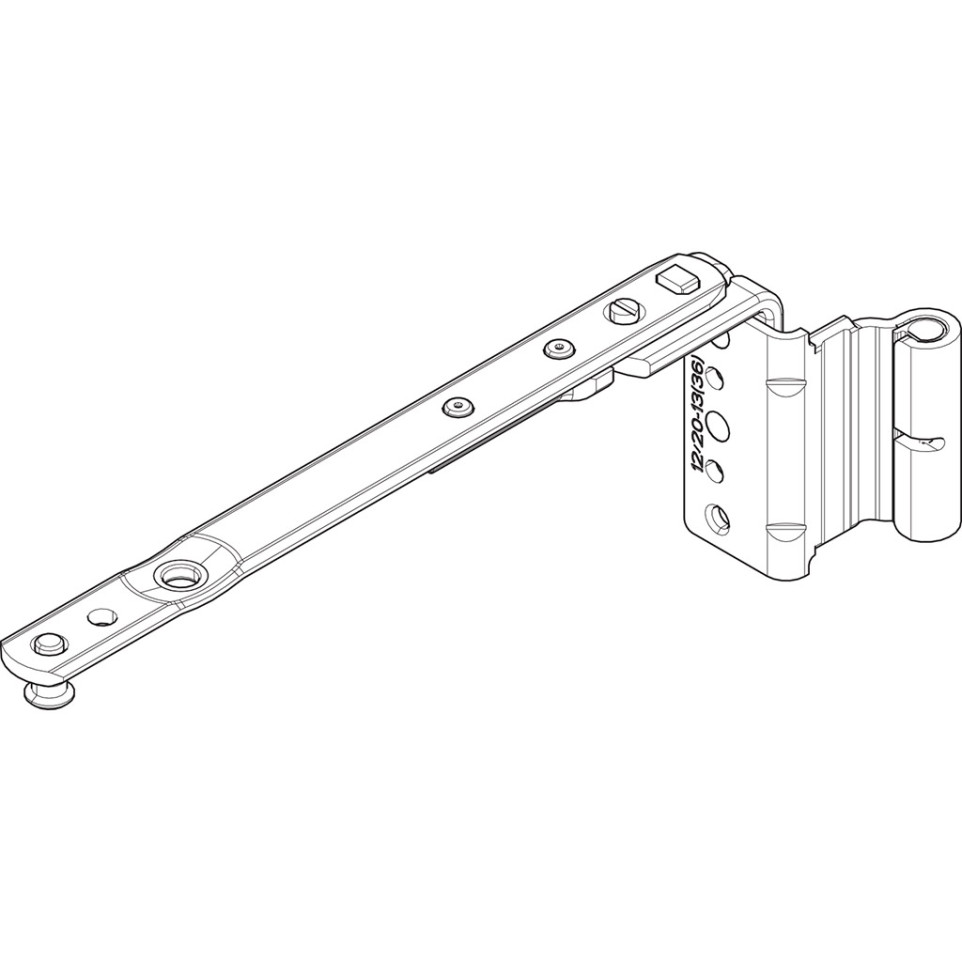

The SAV Compas 150 Roto A et K 12/20-13 is designed for use in window and door systems made from wood, PVC, or aluminium. It serves as a component for connecting and securing sashes within ROTO hardware assemblies.
Advantages
- Compatible with wood, PVC, and aluminium profile systems for versatile application.
- Supports sash weights up to 150 kg, accommodating large or heavy elements.
- Slim compass pivots minimize installation space requirements.
- Pre-installation of pivots and bearings streamlines window assembly processes.
- The limited drilling depth reduces thermal bridging at the joint area, improving insulation performance.
Specifications
- Constructed using treated steel components; suitable for use with different frame materials (wood/PVC/aluminium).
- Treated surfaces enhance corrosion resistance and longevity; industry-standard durability assured by ROTO’s technical standards.
- Bearing capacity up to 150 kg per sash; lateral space requirement only about 21 mm, vertical (bottom) clearance needed is just 5 mm; allows opening angles up to approximately 180° for maximum ventilation or access[1].
- Slimline design of compas pivots reduces condensation formation at pivot points and improves overall energy efficiency in the installed assembly[1].
How it works
The compas fitting is mounted onto the window or door frame. Once installed, it provides stable support during opening and closing operations while ensuring smooth articulation of heavy sashes. Installation requires minimal drilling on the fixed frame section for secure placement before final sash assembly[1].
