Roto E5 Brown Cover Cap for Compass Hinge R04.4 / pc
€17.68
In stock
Product

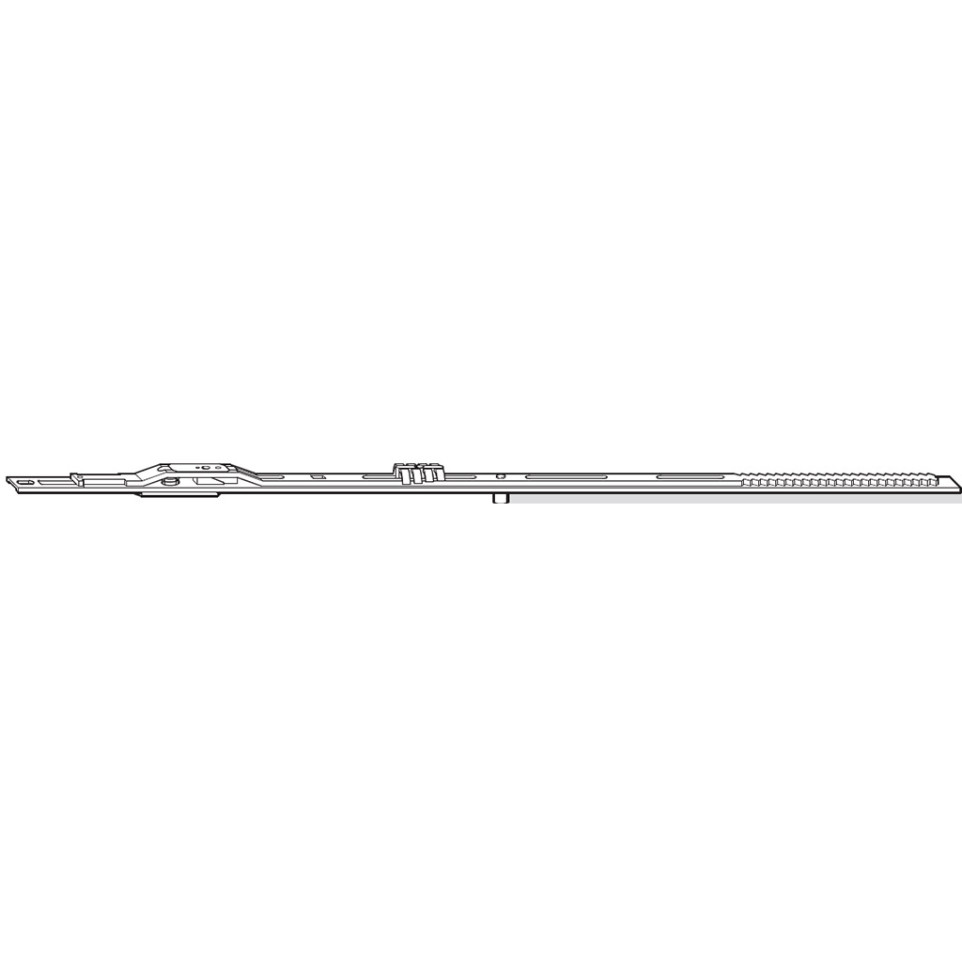

The SAV Jonction cintré 880 "E"+ is a specialized connecting fitting designed for use with ROTO hardware systems on arched (cintré) and trapezoidal window frames. Suitable for wood, PVC, and aluminium profiles, it ensures secure and efficient operation in custom window solutions.
Specifications
- Designed for compatibility with ROTO fitting systems on wood, PVC, and aluminium frames
- Suitable for sashes with a weight limit of 80 kg
- For use in windows with a light frame width (LFF) of 901–1100 mm

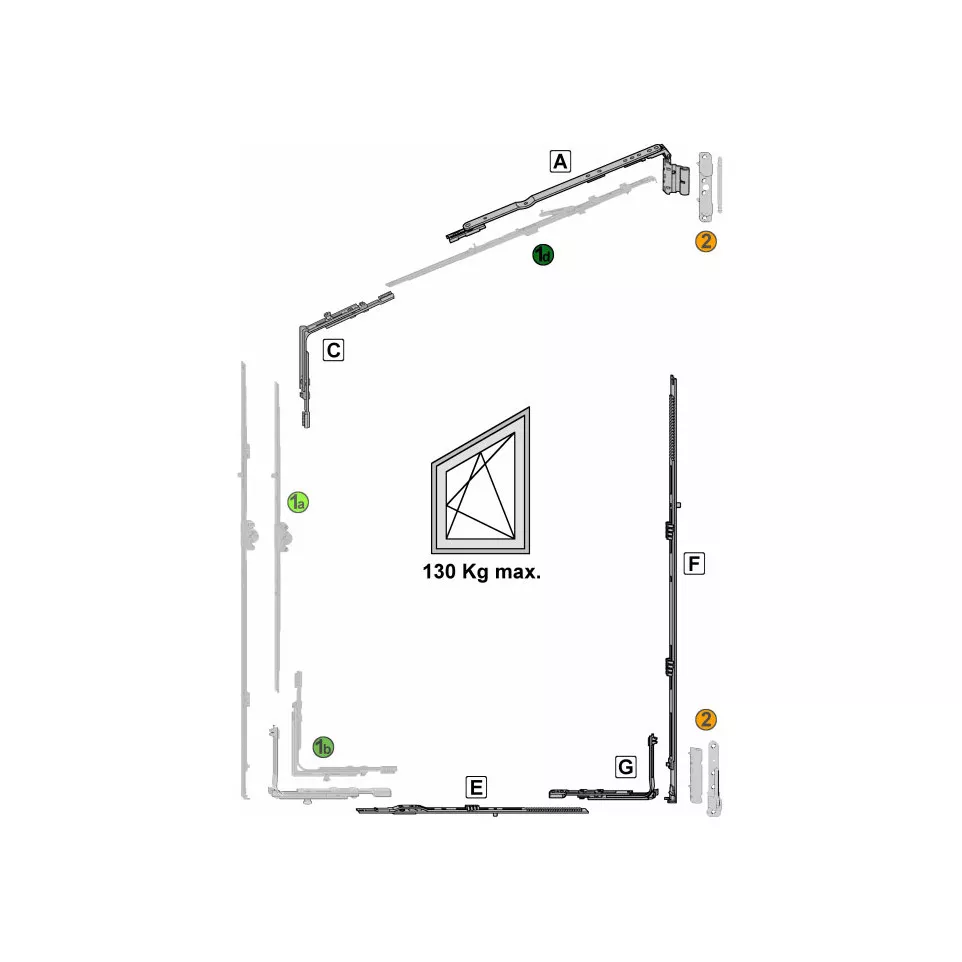

- Letters in a square indicate specificity for arched and trapezoidal frames
- Robust construction for lasting performance
- Incorporates anti-corrosion materials and precise engineering for optimal fit
Usage
The SAV Jonction cintré 880 "E"+ is installed as part of the tilt-and-turn (oscillo-battant) or custom window mechanism. It acts as a dedicated connector for arched and trapezoidal frames, supporting sash movement and ensuring structural stability. Shaded parts are included with tilt-and-turn hardware; refer to the corresponding numbers for assembly.
FAQ
-
What type of frames is this fitting compatible with?
This fitting is designed for wood, PVC, and aluminium window frames, particularly arched and trapezoidal designs. -
What is the maximum sash weight supported?
The fitting supports a sash weight of up to 80 kg. -
What are the applicable frame dimensions?
It is suitable for frames with a light frame width (LFF) between 901 mm and 1100 mm. -
Is specialized installation required?
Installation requires attention to specific markings and may involve referencing shaded parts for tilt-and-turn configurations. -
Are these fittings suitable for regular rectangular windows?
This fitting is specifically engineered for arched and trapezoidal frames; for standard frames, alternative connectors are recommended.
