Usage

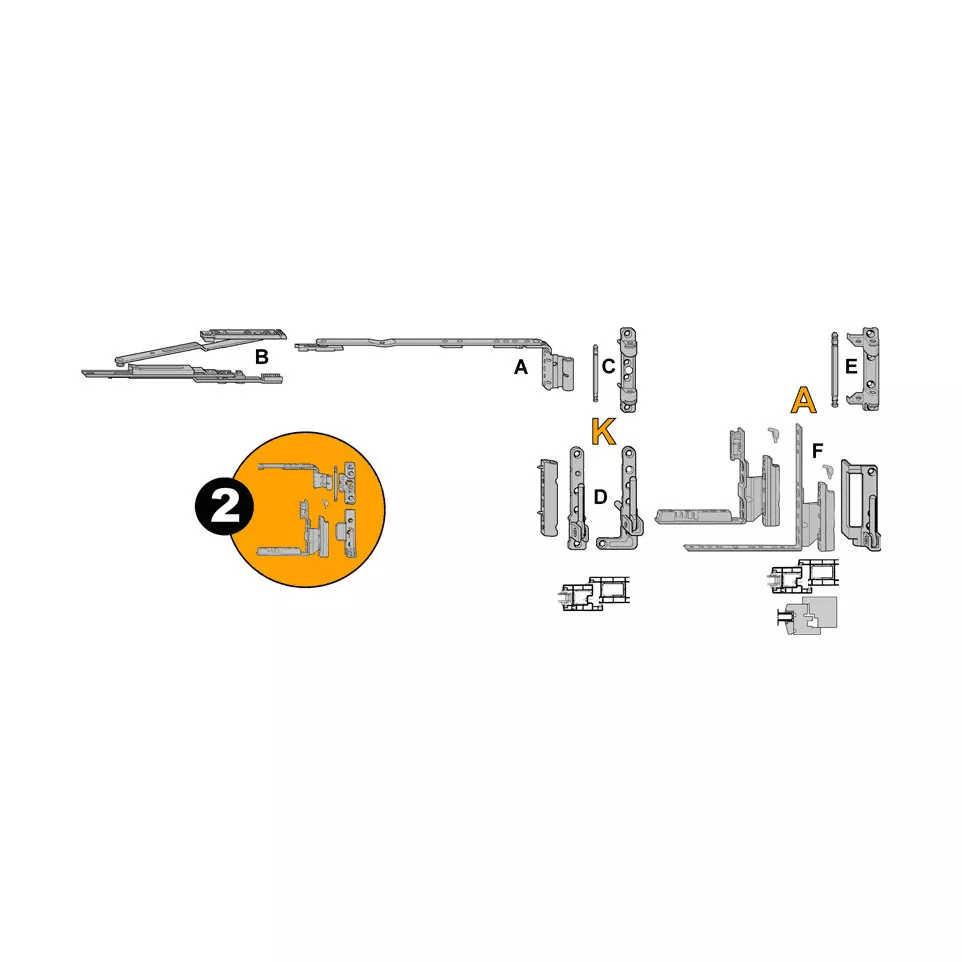

The SAV Compas 150 Roto A et K 12/18-9 / pce is designed for integration into tilt-and-turn windows and doors made from wood, PVC, or aluminium profiles. It is suitable for demanding residential, commercial, or institutional applications where robust performance is needed.
Advantages
- Supports heavy sashes up to 150 kg for large window and door elements.
- Compatible with multiple profile systems in wood, PVC, and aluminium for versatile use.
- Allows sash opening up to a full 180°, enabling wide ventilation and easy cleaning access.
- Pivots and brackets feature a slim design minimizing visible hardware while optimizing performance.
- The reduced drilling depth (5 mm) on the frame minimizes thermal bridging and condensation risks.[1]
Specifications
- Design & Materials: Engineered metal components tailored for wood, PVC, or aluminium profiles; narrow compass pivots ensure discreet integration.[1]
- Durability & Standards: Designed to resist wear with anti-corrosion coatings; meets rigorous standards required in modern fenestration systems.[10][1]
- Performance Data: Maximum sash weight: up to 150 kg. Lateral clearance: only 21 mm. Lower drilling depth: just 5 mm on the fixed frame. Permits sash opening up to an angle of 180°.[1]
- Differentiators: Pre-installable brackets allow surface treatment before assembly; optimized bracket placement helps prevent thermal bridges at pivot points; supports both rebated seals and flat frames across various profiles.[1][6]
How it works
The SAV Compas system is fitted onto window or door sashes during production. Once installed, it enables smooth pivoting motion—allowing large sashes (up to 150 kg) to open fully (up to 180°) while maintaining structural integrity and ease of operation across timber, PVC, or aluminium units.[1][10]
