Usage

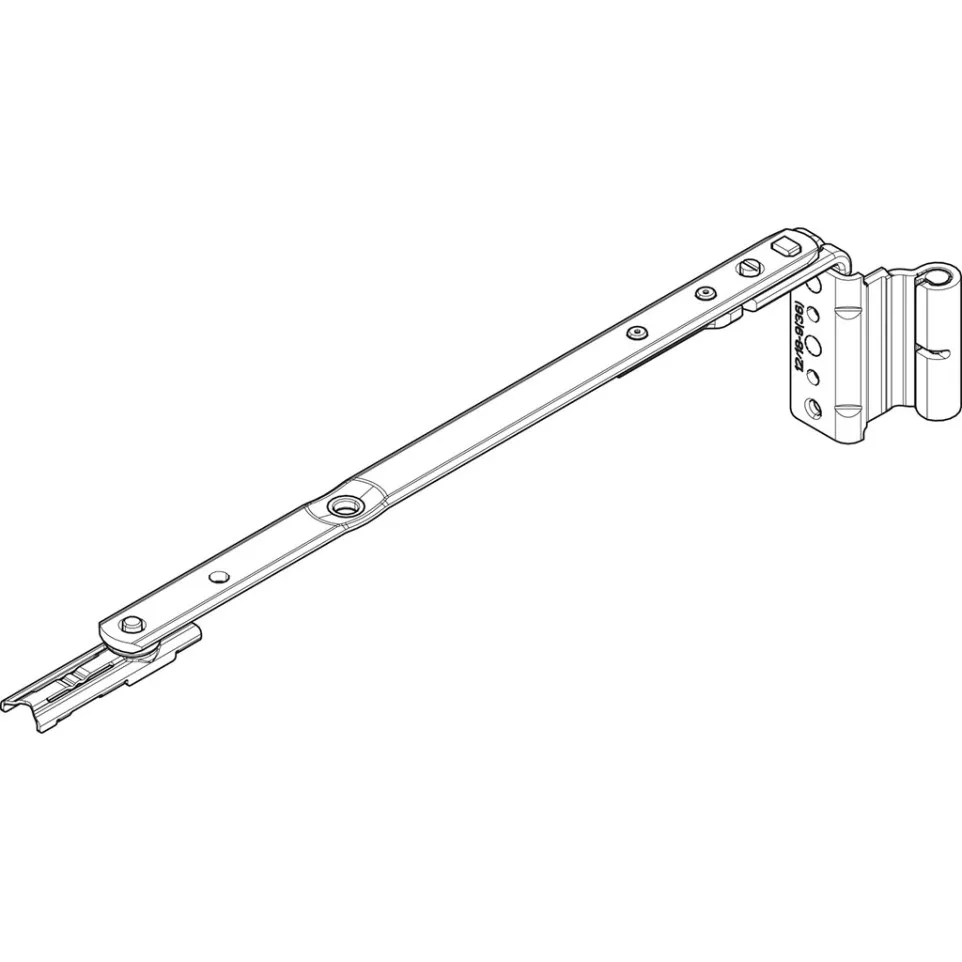

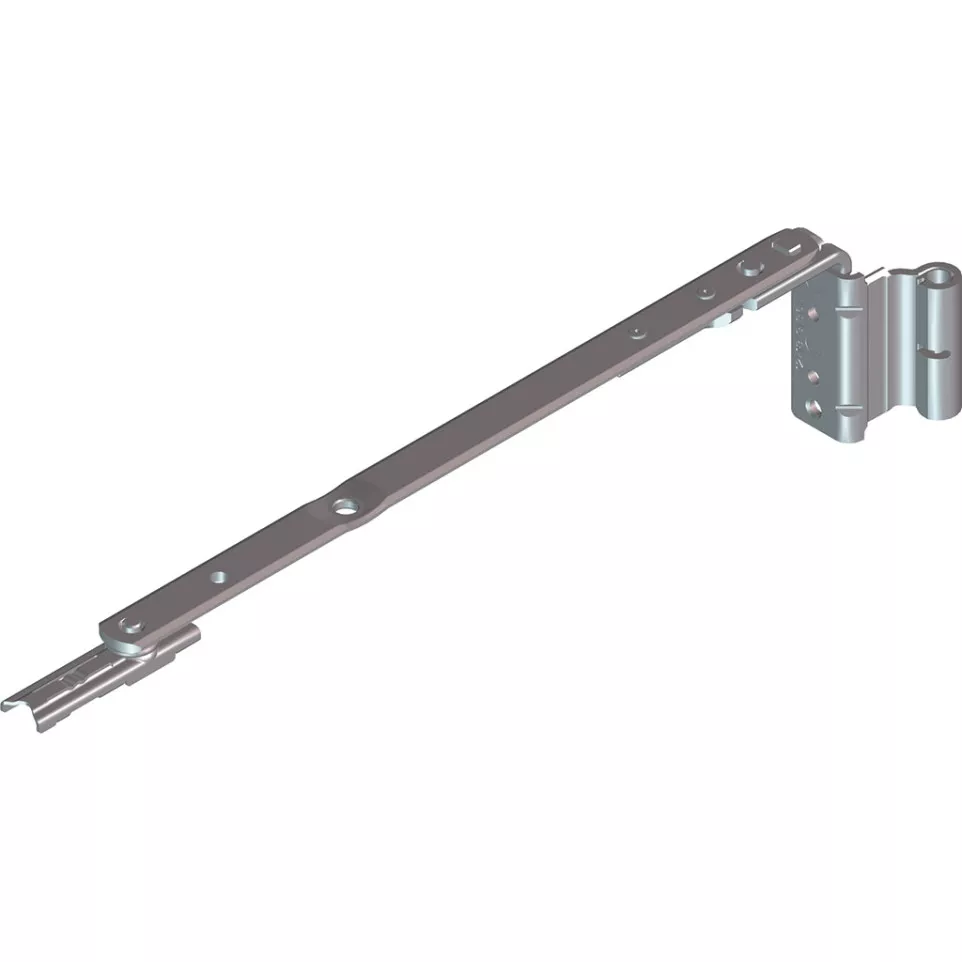

The SAV Compas 250 Roto A et K 12/18-9 is used as a friction stay for tilt-and-turn or turn windows and doors in wood, PVC, or aluminium frames. It ensures controlled, stable sash movement and secure positioning.
Advantages
- Compatible with wood, PVC, and aluminium window systems
- Supports high sash weights: up to 130 kg (Roto A) or up to 100/130 kg (Roto K)
- Allows wide opening angle—up to 180° for maximum accessibility
- Facilitates precise three-dimensional adjustment: height (+3/-3 mm), width (+2/-2 mm), pressure (+½/-½ mm)
- Tilt First operation provides enhanced ventilation safety or child-proof solutions
Specifications
- Friction stay compasses in versions "A" (wood/PVC/steel) and "K" (PVC); visible mounting available for standard chassis sizes (12/18-9 visible NT)
- Bearing elements made from robust steel; precision-engineered pivots ensure long-lasting performance meeting European standards for window hardware durability[5][6]
- Sash width supported: LFF from approximately 411–600 mm; lateral clearance: Roto K ~20 mm, Roto A ~20.5 mm; vertical adjustments as noted above[5]
- Differentiated fixation method: male/female pivots with screw-in options; compatible with Eurogroove profiles of standard dimensions[5]
- Tilt First option available—prioritizes tilt before turn action at the handle for security-sensitive applications[5]
How it works
The fitting is installed on the sash and frame of a tilt-and-turn window or door. It enables smooth opening to either a tilted ventilation position or full rotation up to 180°, maintaining precise alignment through its adjustable geometry.
