Usage

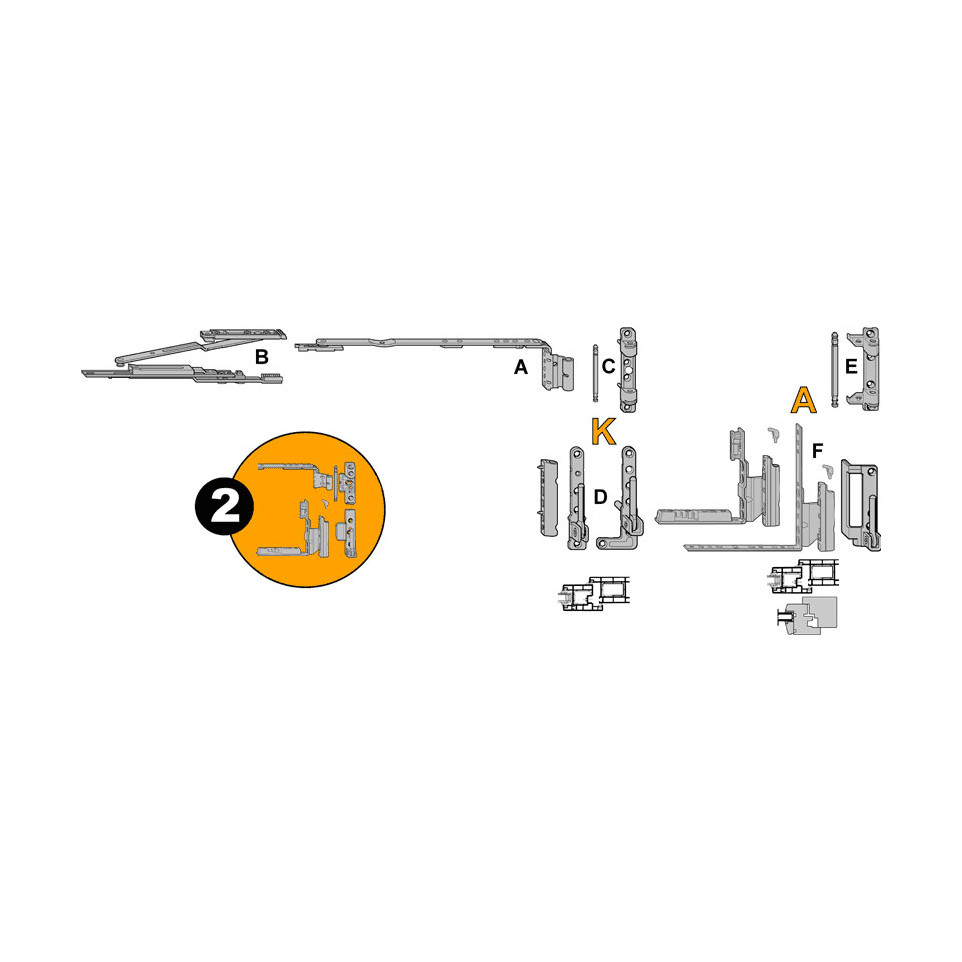

The SAV Compas 150 Roto A et K 12/18-9 is a sash stay specifically designed for installation in tilt-and-turn and turn-only windows or doors made from wood, PVC, or aluminium profiles. Suitable for use in residential and commercial buildings.
Advantages
- Compatible with multiple profile types: fits wood, PVC, and aluminium systems with various groove sizes.
- Supports heavy sashes up to 150 kg, enabling large window constructions without compromising stability.
- Allows full sash opening up to 180°, facilitating easy cleaning and maximum ventilation.
- The design minimizes condensation formation at support points by limiting drill depth on the fixed frame to just 5 mm[1].
- Sash bearings and pivots are slim for space efficiency; limited thermal bridging improves energy performance[1].
Specifications
- Design & Materials: Engineered steel components with surface treatment for corrosion resistance; suitable for use in demanding environments[1][3].
- Durability & Standards: Treated surfaces exceed corrosion class requirements; robust build ensures long service life even in high-traffic installations[3].
- Performance: Supports maximum vent (sash) weight of up to150 kg;sash can open from closed position up to180°[1][3].
- Differentiating Features: Lateral installation clearance of only21 mm; sash bearings pre-fixable before frame assembly;
drill depth limited to minimize heat loss and condensation risk[1].
How it works
This compas fitting is installed between the window sash and frame. It guides the sash during opening—either tilting or swinging fully open—while supporting its weight. Drill-limited bearings reduce heat transfer points, ensuring reliable function across wood, PVC, or aluminum frames.
