Automatic Chuck 1/2" - 20mm per piece
€33.52
In stock
Product
The Festool MB 40 Mobile Drilling Attachment Set is a compact drilling accessory engineered for precise, right-angled, and repeatable drilling in wood, metal, or plastic. Designed for professionals using compatible Festool cordless drills, it enables accurate hole placement whether on-site or in the workshop.
Specifications
- Robust construction for stable and accurate drilling
- Rubberized sole for non-slip positioning
- Compact format, stored in a Systainer³ case
- Base plate dimensions: 110 x 114 mm
- Maximum drilling diameter in softwood: 40 mm (Forstner bit), 16 mm (auger bit)
- Maximum drilling depth: 50 mm, with display in both millimeters and inches
- Integrated chip extraction compatible with dust class M extractors (hose Ø 27 mm)
- Includes parallel guide, end-stop, and guide rail adapter for varied drilling tasks
- FastFix and CENTROTEC compatibility for quick assembly and tool changes
Usage

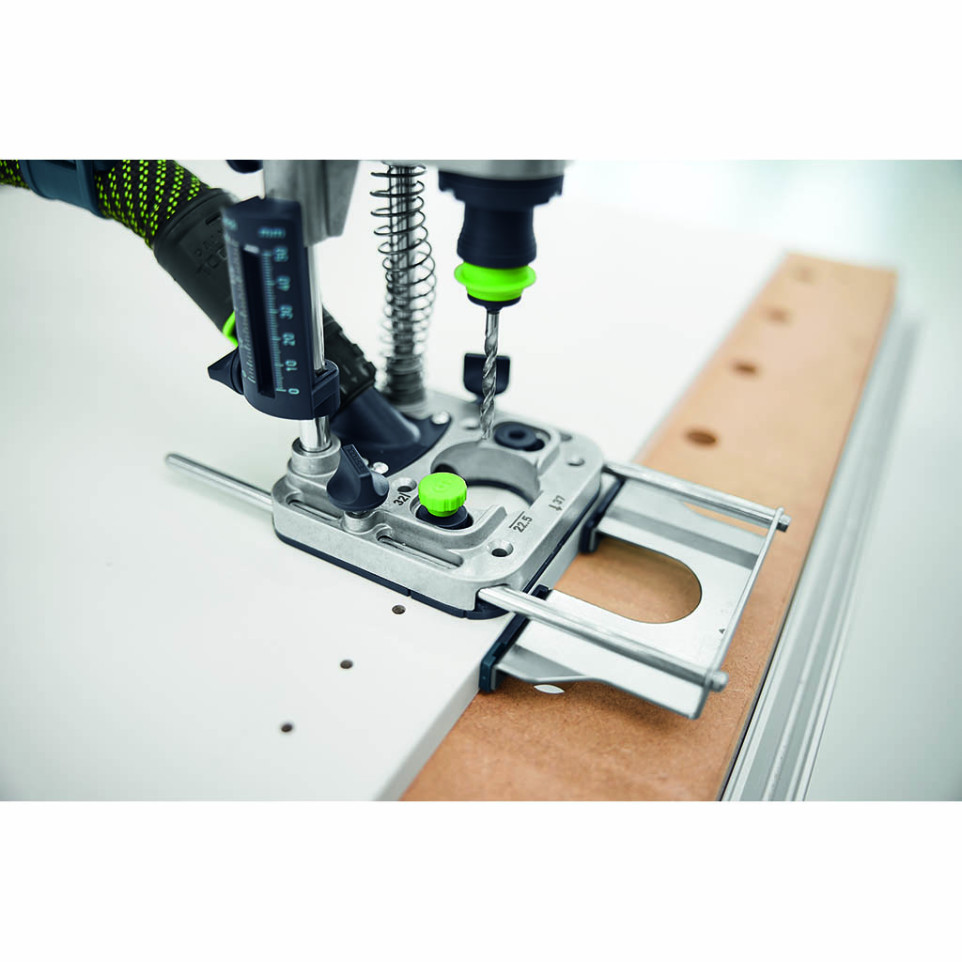

The MB 40 attaches directly, without tools, to supported Festool drill models using FastFix. It is aligned on the workpiece using marked guides and stabilized by its rubberized sole. Depth, hole series spacing, and drilling angle are adjusted via built-in stops and scales, ensuring consistent results for both single and repetitive drilling. Dust extraction can be connected for clean, unobstructed operation.
FAQ
-
Which Festool tools are compatible with the MB 40?
It is compatible with CXS/TXS 12, CXS/TXS 18, TPC 18/4, TDC 18/4, C 18, and T 18 drills featuring FastFix; it does not work with CXS/TXS models lacking FastFix. -
What is the maximum drilling depth and diameter?
It offers a maximum drilling depth of 50 mm, and drilling diameters up to 40 mm for Forstner bits and 16 mm for auger bits in softwood. -

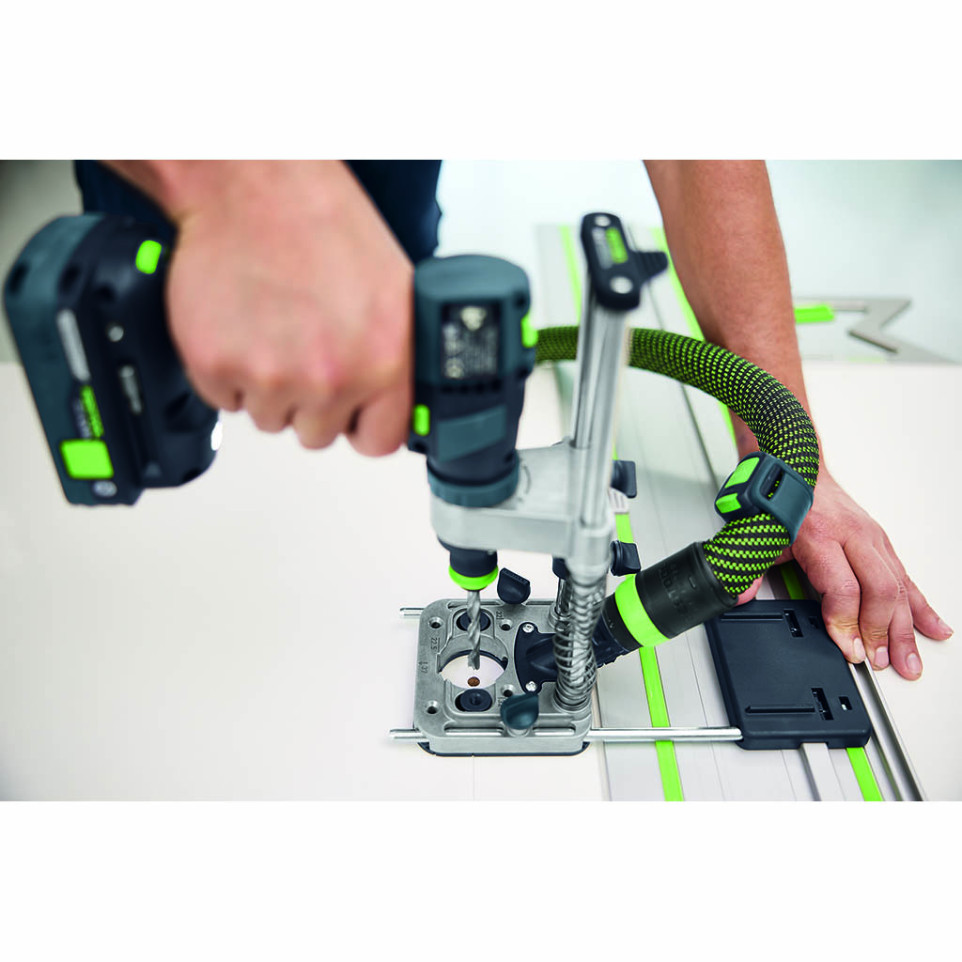

How is dust managed during drilling?
The base plate has an integrated port compatible with D 27 extraction hoses and dust class M vacuum systems to collect chips at the source. -
Can I drill series or row holes for cabinetry?
Yes, the attachment features a row drilling function for 32 mm intervals, ideal for cabinet construction and similar joinery. -

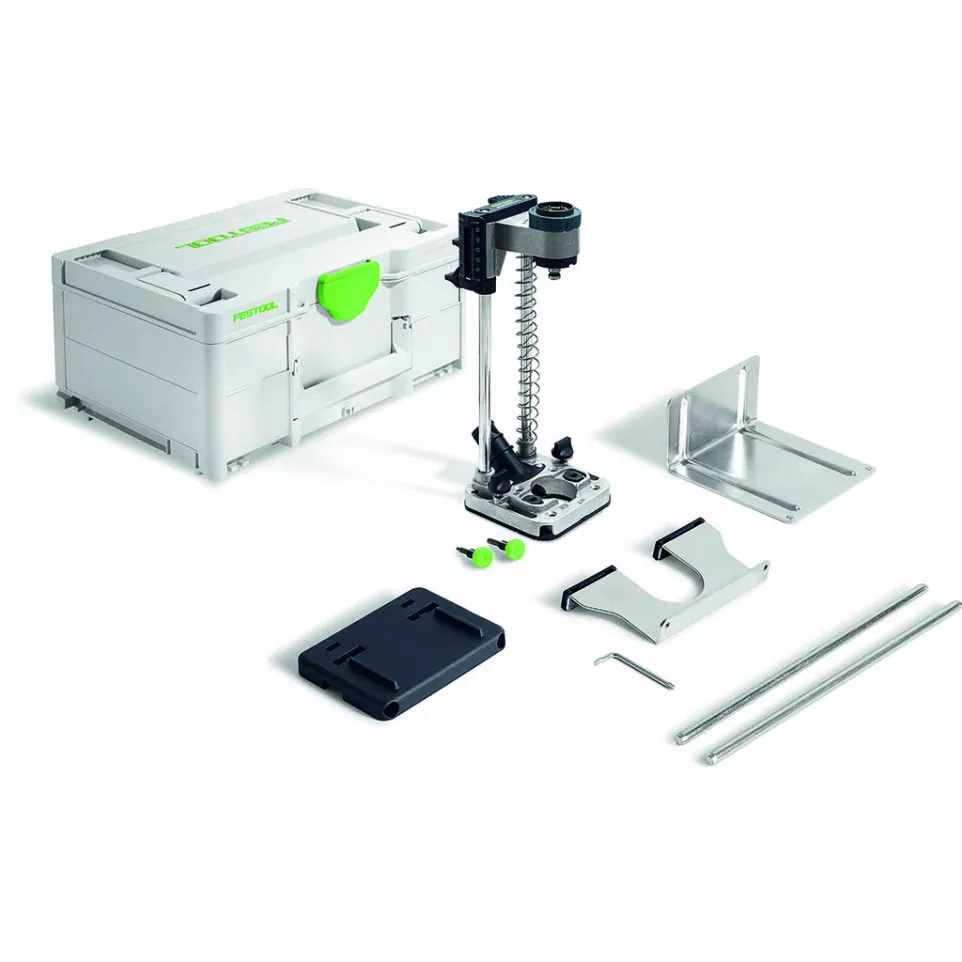

Which accessories are included?
The set includes a parallel side guide, an end-stop for edge drilling, and a guide rail adapter for handling large or long workpieces; all items are organized in the Systainer³ case.
