White PVC Line Profile Closed End Cap / pc
€0.50
In stock
Product

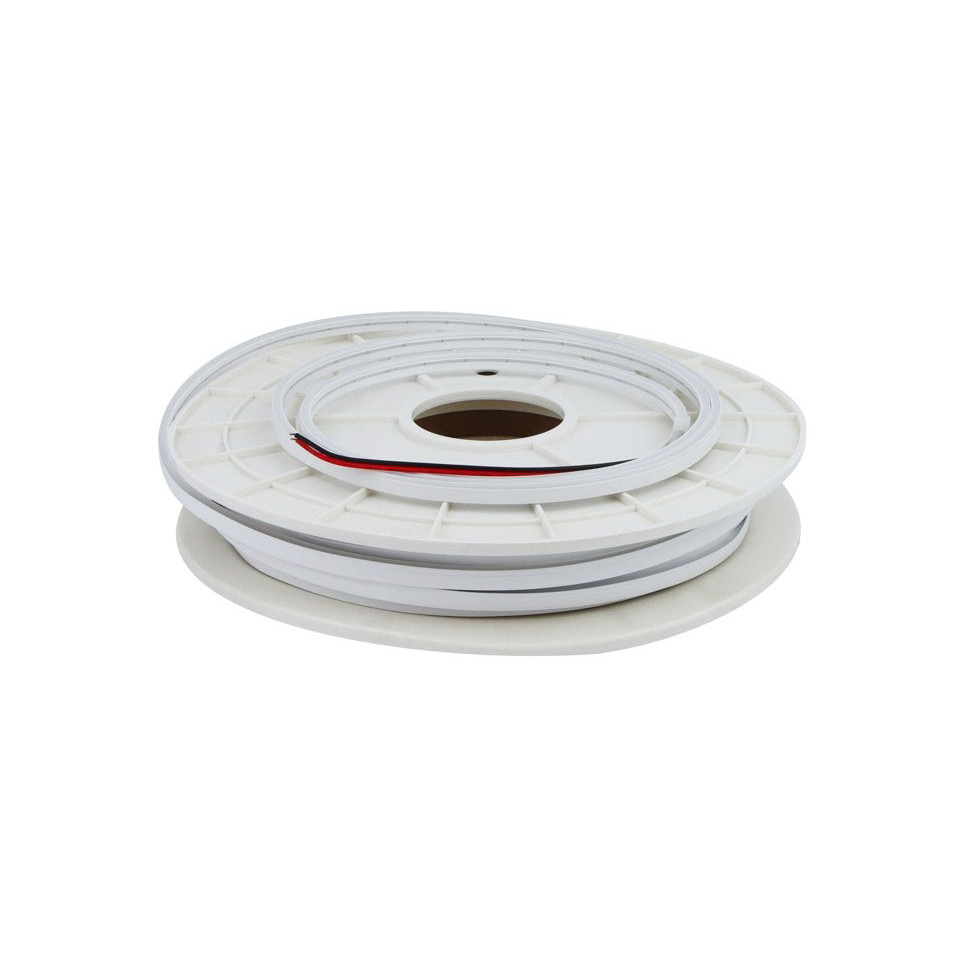

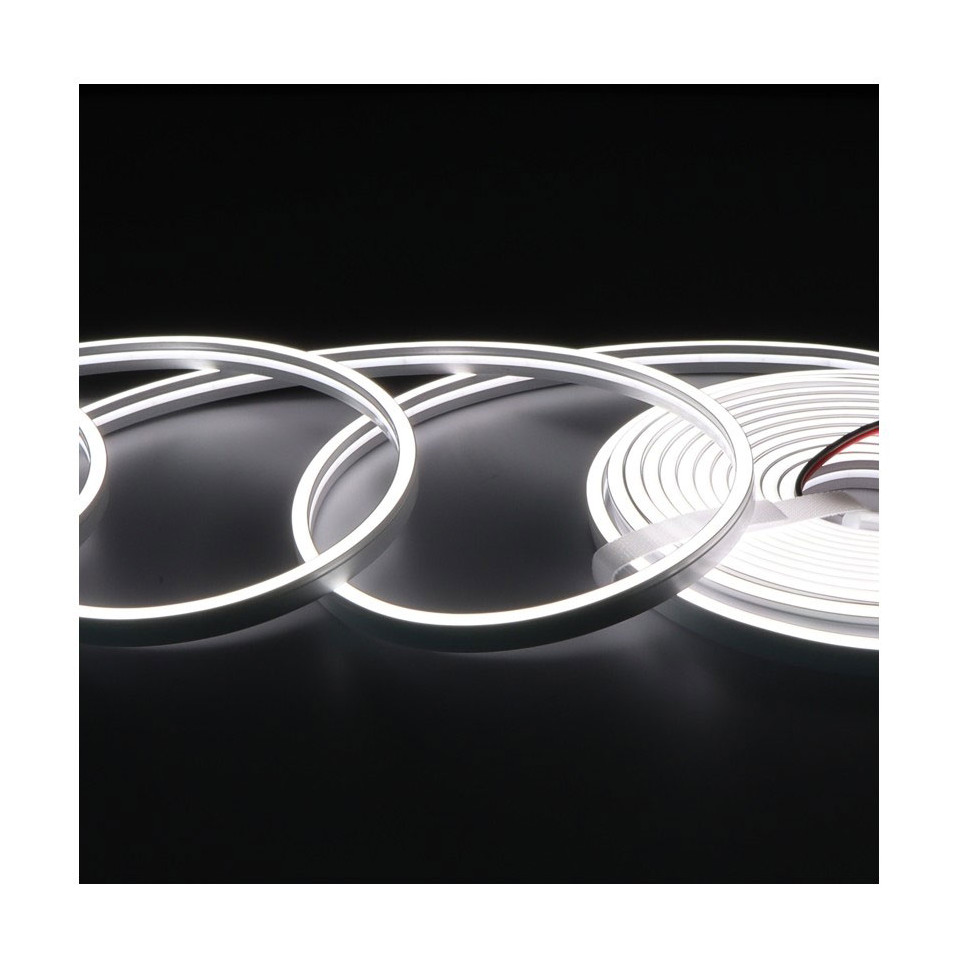

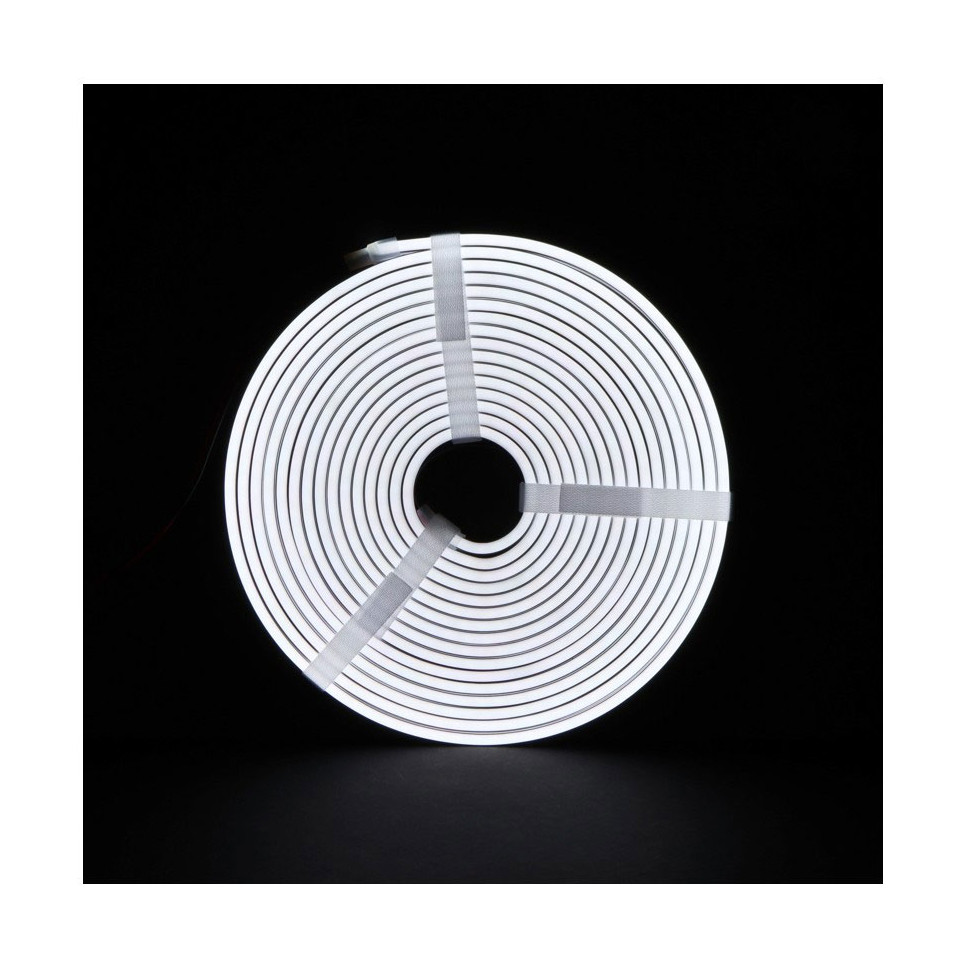

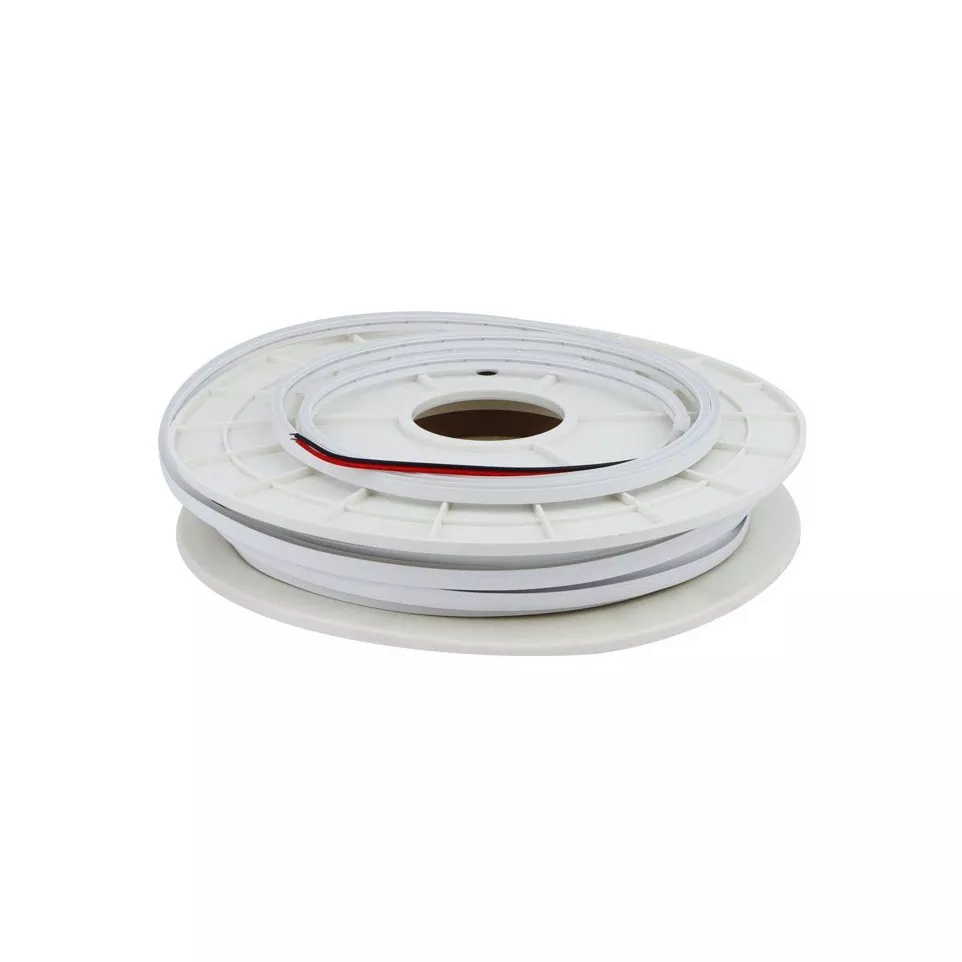

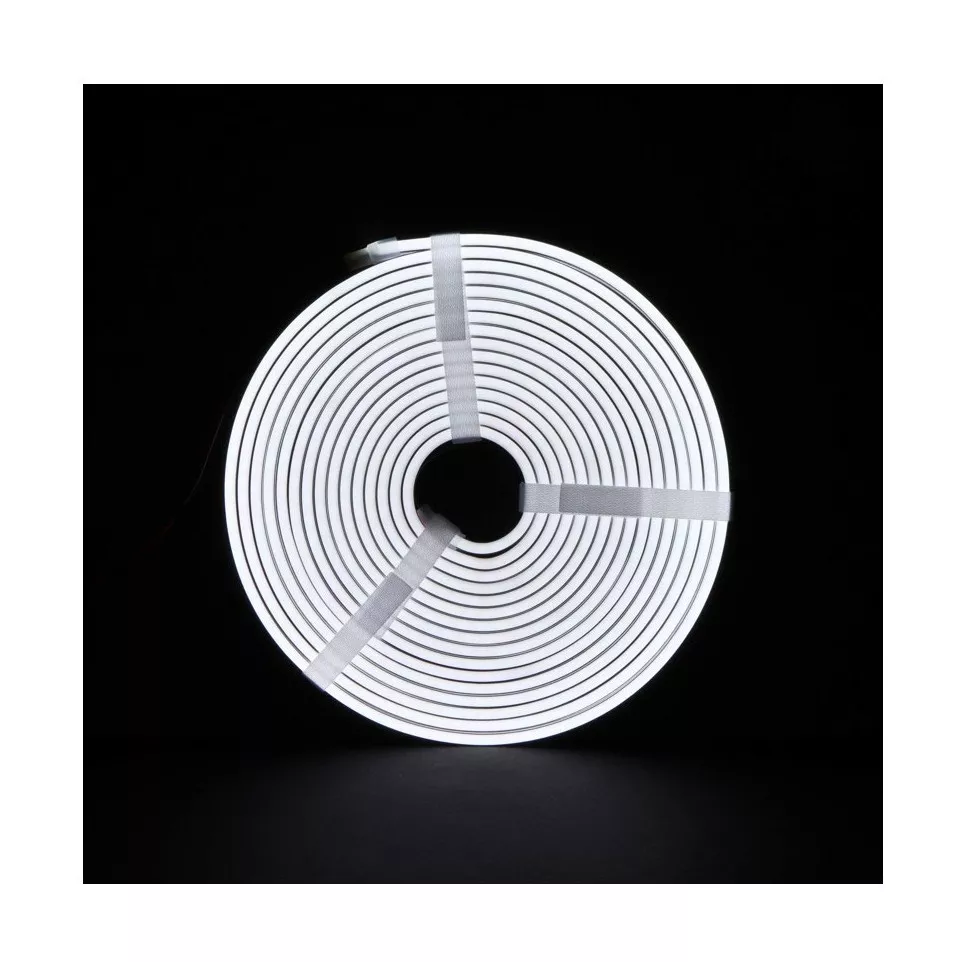

The LED Neon Flex 4x8mm 24V Cool White is a flexible luminous profile designed to create custom inscriptions, patterns, logos, and decorative lighting lines. Supplied on a 25-meter reel, it delivers 580 lm/m at just 6.2 W/m for efficient, uniform illumination.
Specifications
- Constructed with a flexible silicone housing that encases the LED strip, providing a smooth, dot-free light output and serving as an excellent alternative to traditional exposed LED strips
- Rated IP20 in its base configuration; however, with proper installation of end caps and connectors, the silicone construction can support outdoor use up to IP67-level protection against dust and water ingress

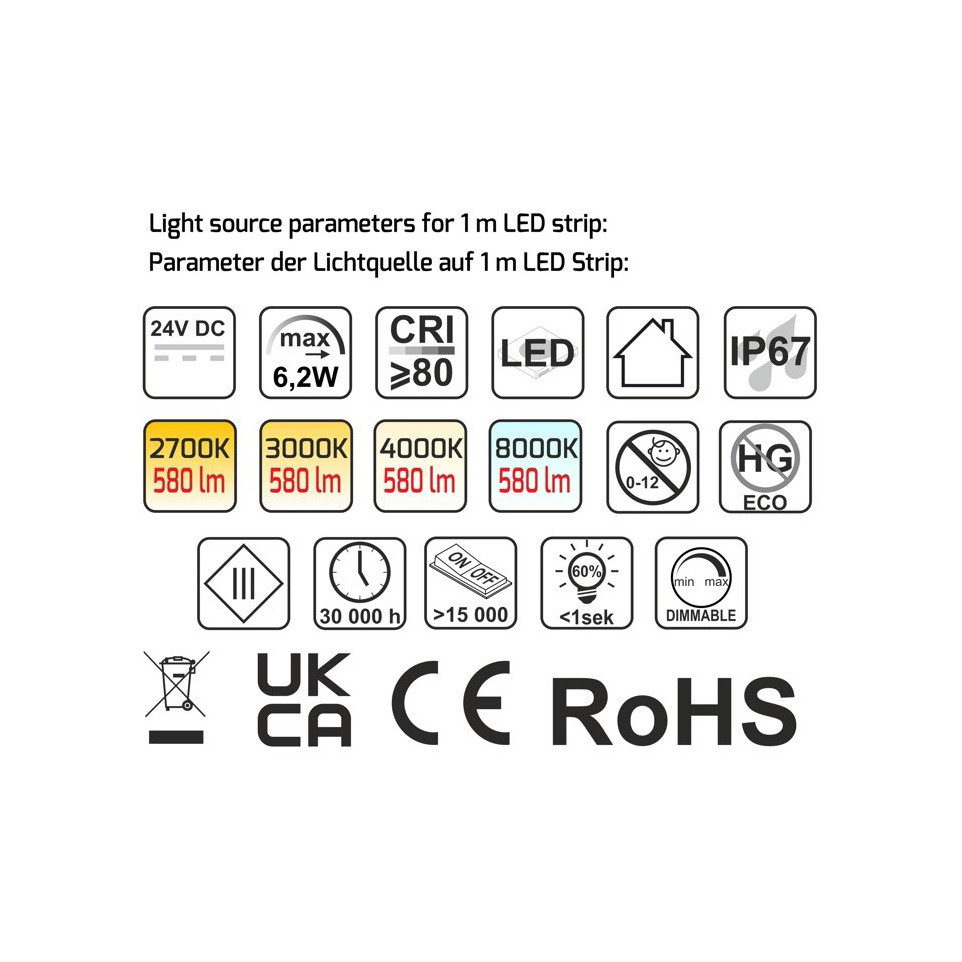

- Operates on a safe 24V DC supply with a cool white color temperature, delivering consistent brightness at 580 lm/m while consuming only 6.2 W/m
- Pre-wired on both sides for straightforward electrical connection, reducing installation time and complexity

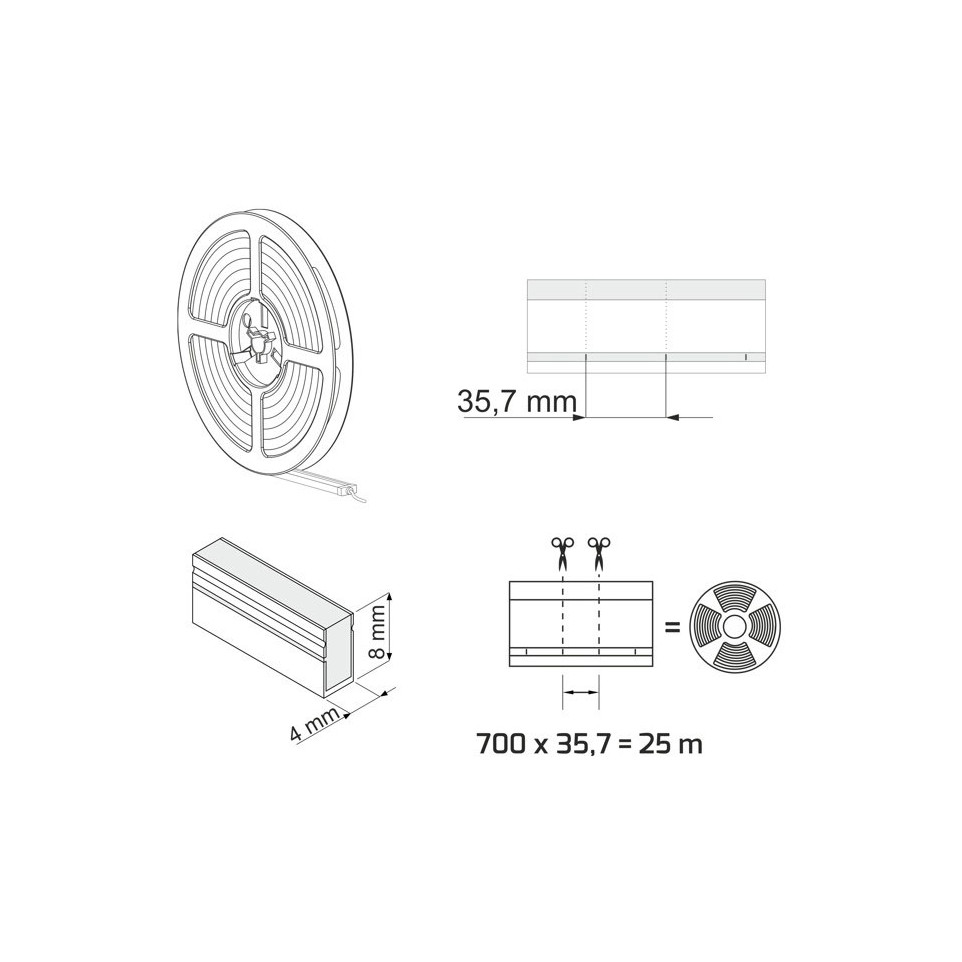

- Ultra-compact recessed dimensions of 4x8 mm allow integration into tight spaces, channels, and curved surfaces for versatile design applications
- Total reel length of 25 meters provides ample material for large-scale signage, architectural accents, or continuous linear lighting runs
Usage
Cut the Neon Flex at designated cutting points to the desired length, then connect it to a compatible 24V DC power supply using the pre-wired leads on either end. Bend and shape the flexible silicone profile to form letters, logos, or decorative contours, and secure it in place using mounting clips or adhesive channels. For outdoor installations, seal all connection points with appropriate waterproof end caps and connectors to maintain environmental protection.
FAQ
- Can this Neon Flex be cut to a custom length? Yes, the Neon Flex can be cut at marked intervals along its length, allowing you to tailor it precisely to your project requirements.
- What power supply is required? A constant voltage 24V DC power supply is required. Ensure the power supply wattage is sufficient to cover the total length installed, calculated at 6.2 W per meter.
- Is this product suitable for outdoor use? The base product is rated IP20, but when properly fitted with sealed end caps and waterproof connectors, the silicone construction supports outdoor installation with IP67-level protection.
- What does the pre-wired feature mean? The Neon Flex comes with electrical leads already attached on both ends, so you can connect directly to a power supply or daisy-chain sections without soldering.
- Can it be bent into curves and shapes? Yes, the flexible silicone profile and compact 4x8 mm cross-section allow the Neon Flex to be shaped into curves, letters, logos, and custom patterns with ease.
