PVC Cap for Male Part of P50 Plug Ø15mm on White Plate per piece

Product

PVC cap for male hinge part, compatible with P50 Ø15mm on white plate by Otlav. Designed for PVC doors and frames, also suitable for wood installations. Ideal for professional fitters or builders seeking a neat finish on hinge assemblies.

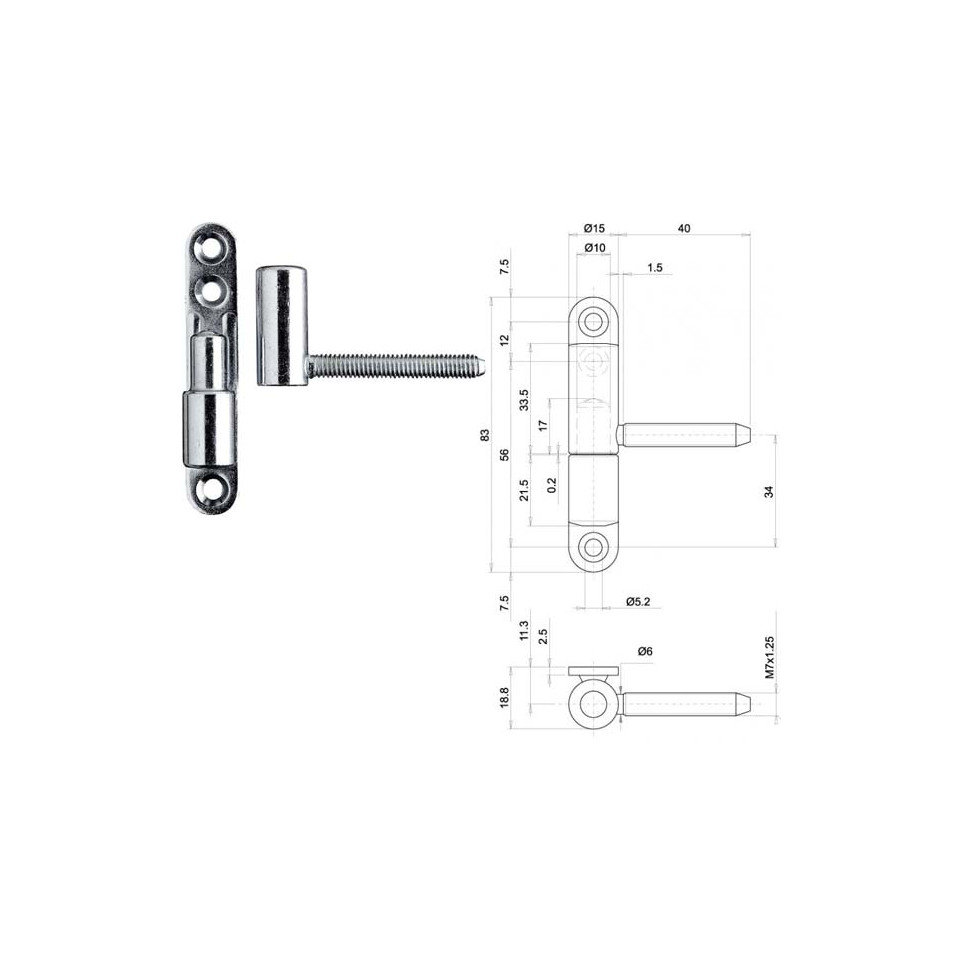

Specifications

• Constructed from steel with a PVC finish cap for covering screws
• Male part: Ø10 mm on flat plate, 83 x 15 mm, white powder coated (RAL 9010)
• Female part: threaded rod Ø7 x 40 mm
• Fixing: 3 screws on the frame; screw diameter Ø4 mm for PVC, Ø4.5 mm for wood
• Maximum door weight: up to 40 kg
• Corrosion-resistant and durable

Usage

Mount the male plate with three screws onto the frame, using the appropriate screw size for PVC or wood. The female part attaches to the sash. After installation, the PVC cap provides a clean and aesthetic screw cover, completing the hinge assembly.

FAQ

1. What is included with the PVC cap for the P50 Ø15mm hinge?
   The product includes a PVC cover for the male part of the hinge, designed to conceal the fixing screws for a tidy finish.

2. Is this compatible with both PVC and wooden frames?
   Yes, the hinge is designed for PVC but can also be used with wooden frames, utilizing the appropriate screw sizes provided.

3. What is the maximum door weight supported?
   The assembly supports doors up to 40 kg, ensuring reliable function for standard applications.

4. How do I install the cap and hinge parts?
   Fix the male plate to the frame with screws, attach the female threaded rod to the sash, then snap the PVC cap over the screws for a finished look.

5. Can the cap be painted or colored to match frames?
   The cap is supplied white (RAL 9010) to blend with most PVC systems and is designed for durable, long-term appearance.
