Usage

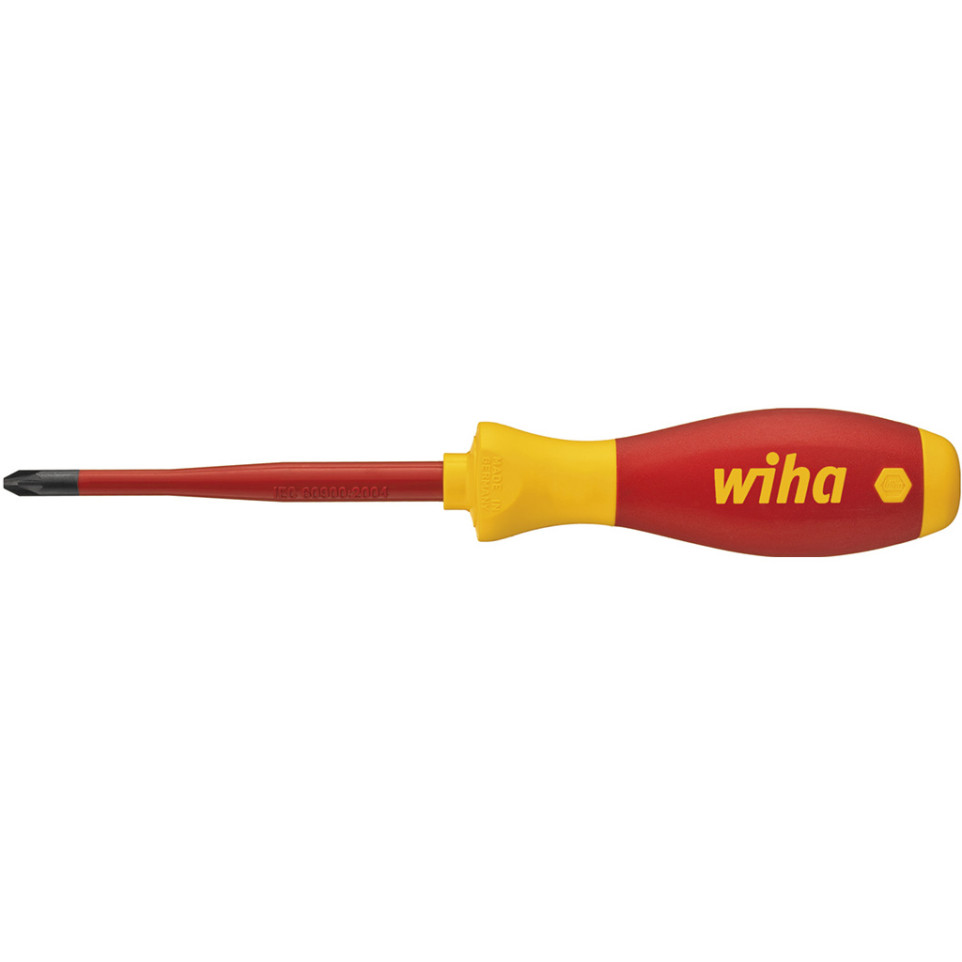

Designed for electrical tasks, the Wiha SoftFinish electric slimFix PZ2x100mm screwdriver is ideal for secure and efficient screw fastening when working on live components up to 1,000 V AC in control cabinets, junction boxes, and other electrical environments.
Advantages
- Slender insulated blade provides access to low-lying Pozidriv screws in confined spaces.
- Handle features ergonomic SoftFinish design to minimize hand fatigue during extended use.
- Certified safe for work on live parts up to 1,000 V AC (tested individually as per IEC 60900).
- Roll-away protection and screw symbol at handle end support efficient operation.
- The slim insulation may reduce mechanical robustness if used outside intended applications.
Specifications
- The blade is crafted from hardened chrome-vanadium-molybdenum steel with a black finish; insulation molded directly onto the shaft using Wiha slimTECHNOLOGY.
- TUV/GS certified according to IEC 60900 standard; each tool tested at 10,000 V AC for safety at rated voltage of up to 1,000 V AC.
- Total length: approximately 204 mm; visible blade length: 100 mm; handle diameter: about 23 mm; weight: approx. 42 g.
- PZ2 tip profile with integrated insulation allows blades up to 33% slimmer than conventional insulated screwdrivers—enabling easier access in tight or recessed areas.
How it works
This screwdriver transmits hand force via its ergonomically shaped handle directly through a slenderized insulated shaft onto Pozidriv screws. The integrated protective insulation ensures safe handling of live electrical components while allowing precise access even in densely packed installations.
