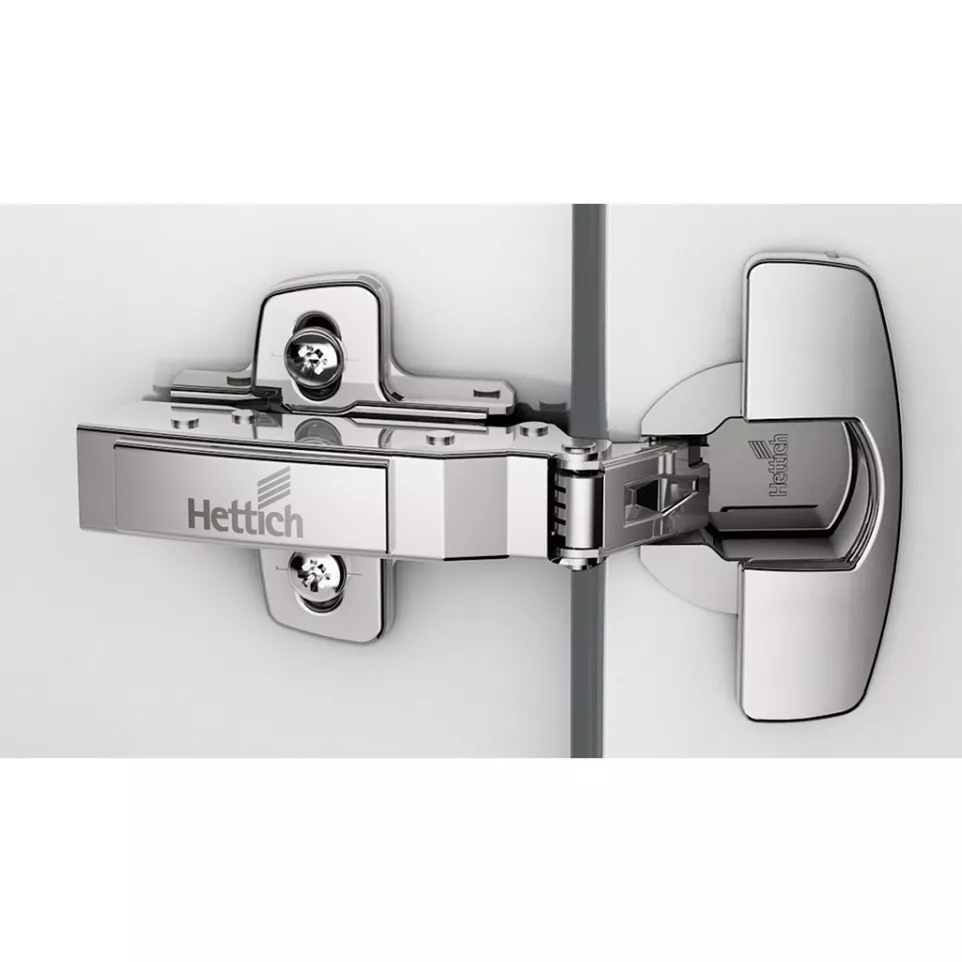

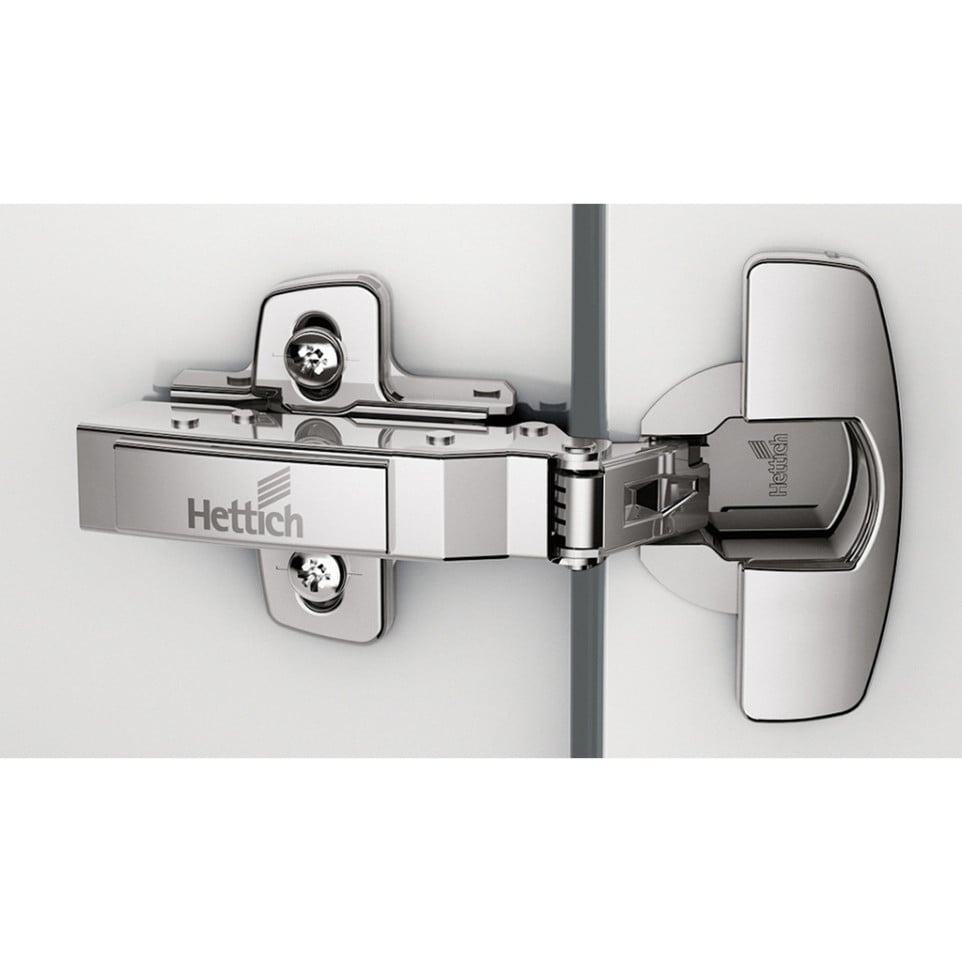

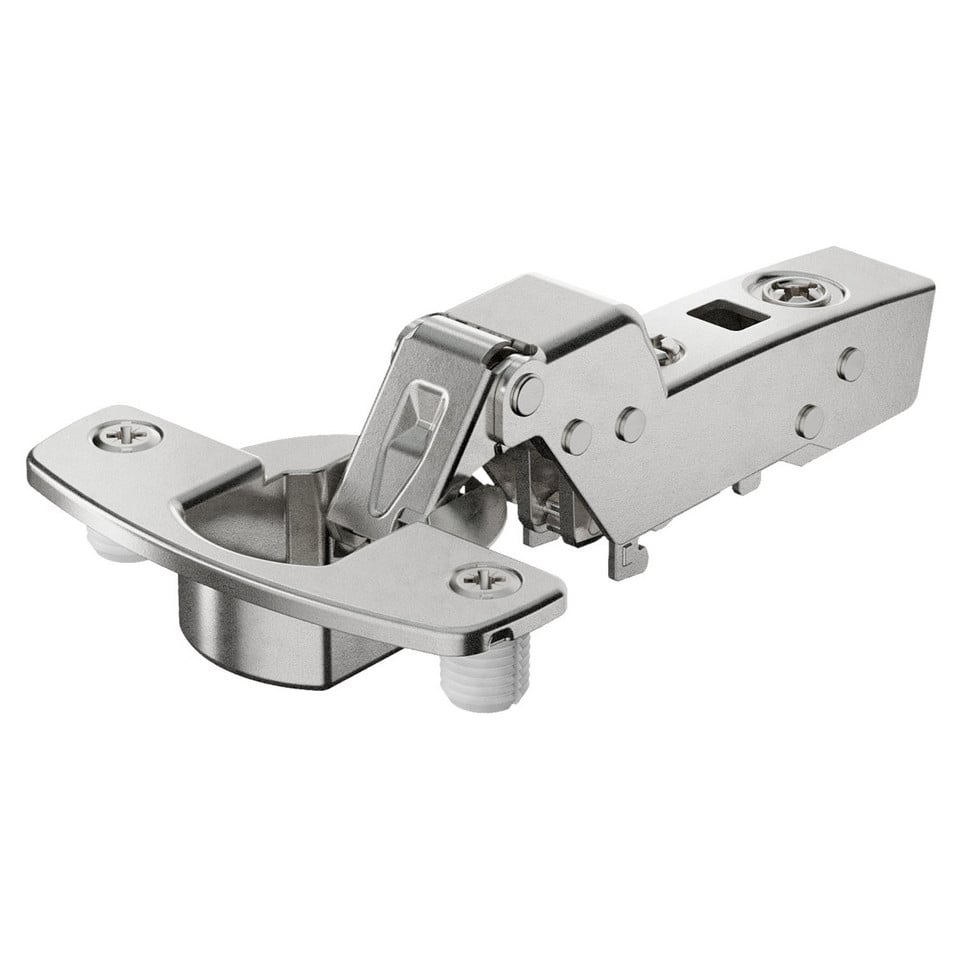

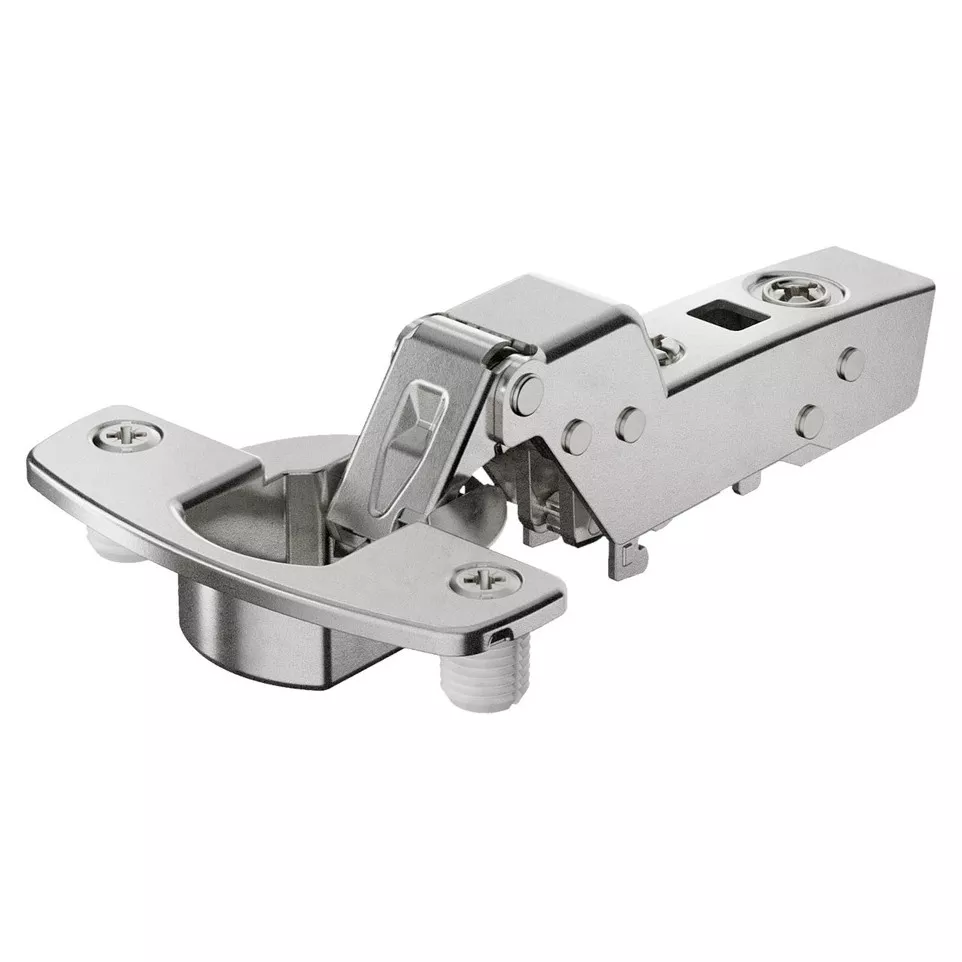

Sensys 8645i 110° Nickel Quick-Install Hinge Flash (Ø10x11mm) with Soft-Close and Self-Closing for Panel

Usage

The Charnière Sensys 8645i 110° nickel-plated quick-mount hinge with integrated damping and automatic closing is designed for cabinet doors in furniture construction, particularly where a smooth and controlled closure is required.

Advantages

• Simple and fast clip-on mounting system reduces installation time.
• Integrated soft-close mechanism ensures quiet and gentle door closing.
• Automatic closing feature pulls the door securely shut from approximately 30°.
• Nickel-plated finish provides corrosion resistance suitable for interior environments.
• Cup diameter of Ø10x11mm allows compatibility with thinner or lightweight panels; less suitable for heavy doors due to cup size limitation.

Specifications

• Design: Nickel-plated steel hinge with quick-mount "Flash" technology; cup size Ø10mm x depth 11mm; arm designed for stud mounting on panel ("p" application).
• Durability: Tested to withstand at least several tens of thousands of opening/closing cycles, compliant with industry hardware standards (EN15570 Level3 typical, manufacturer reference).
• Performance: Opening angle of up to 110°, integrated self-closing spring engages at approximately 30°, adjustable soft-close damping built-in.
• Differentiator: Combines slim mounting dimensions, tool-less installation/removal, and built-in damper technology in a compact format targeted at modern cabinet applications requiring minimal reveal or gap tolerances.

How it works

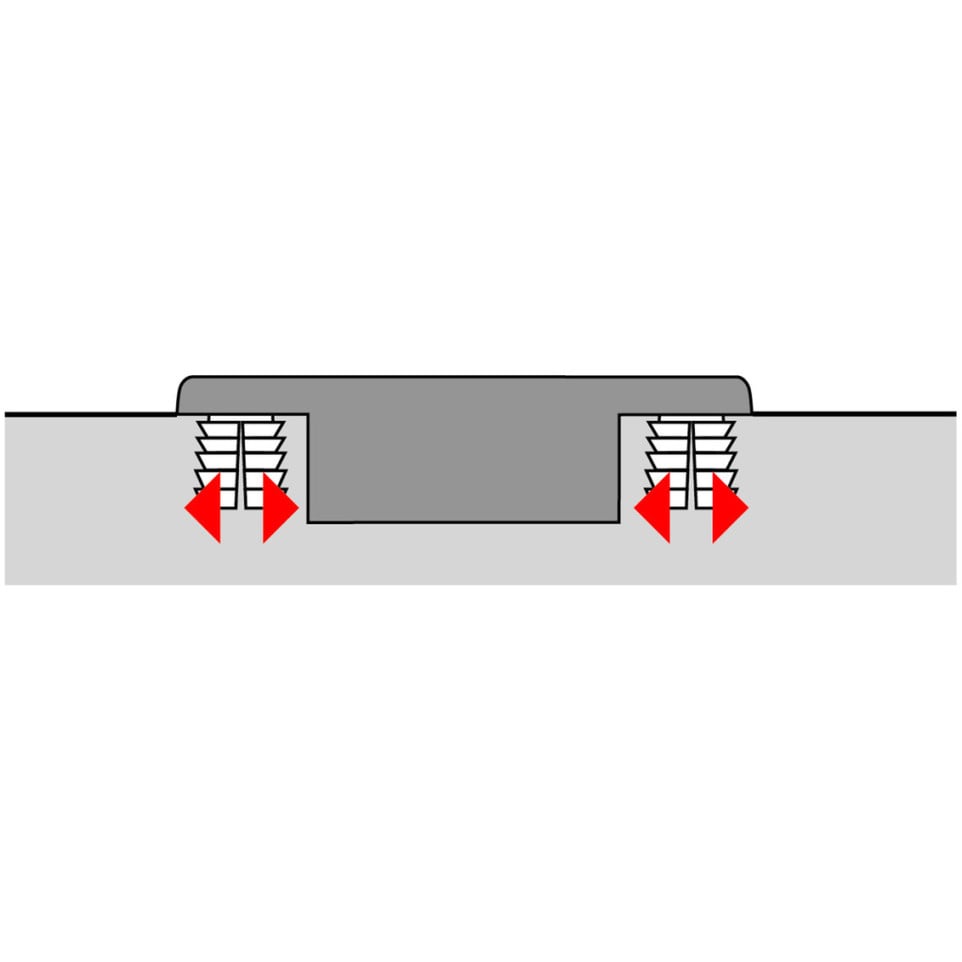

This hinge mounts into a pre-drilled hole on the door using its Ø10x11mm cup. The quick-clip fastening enables rapid assembly without tools. When opening or closing the cabinet door, the hinge’s integrated damper slows movement near closure, while an internal spring automatically pulls the door closed from about a third open position onward for secure latching every time.
