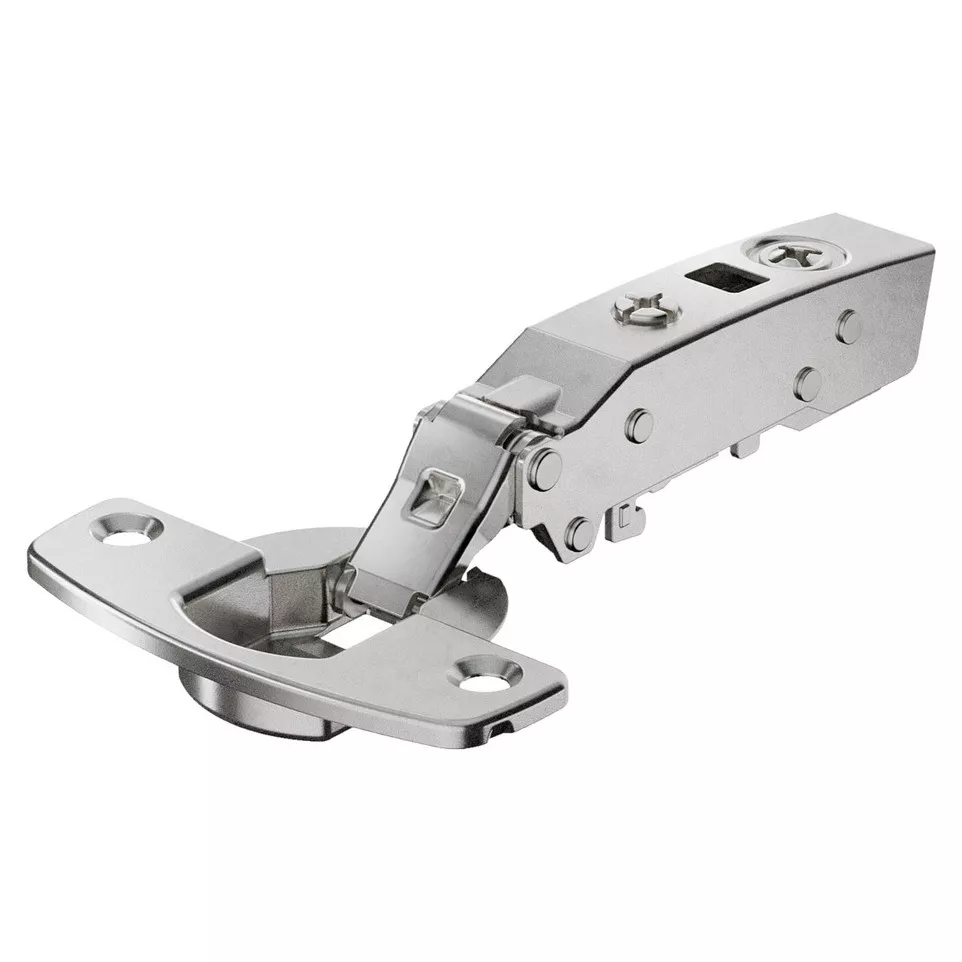

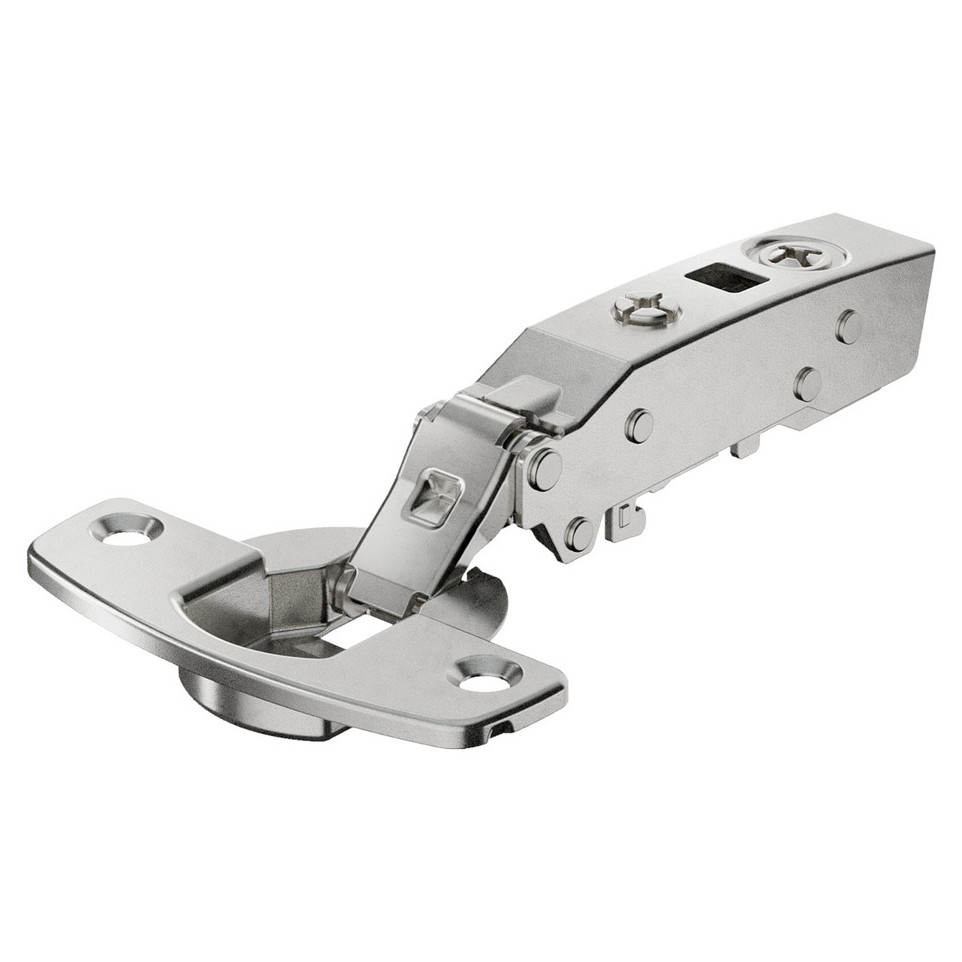

Sensys 8646i 110° Nickel Plated Screw-On Hinge with Damper and Auto-Close for Overlay Doors from 10mm

Product

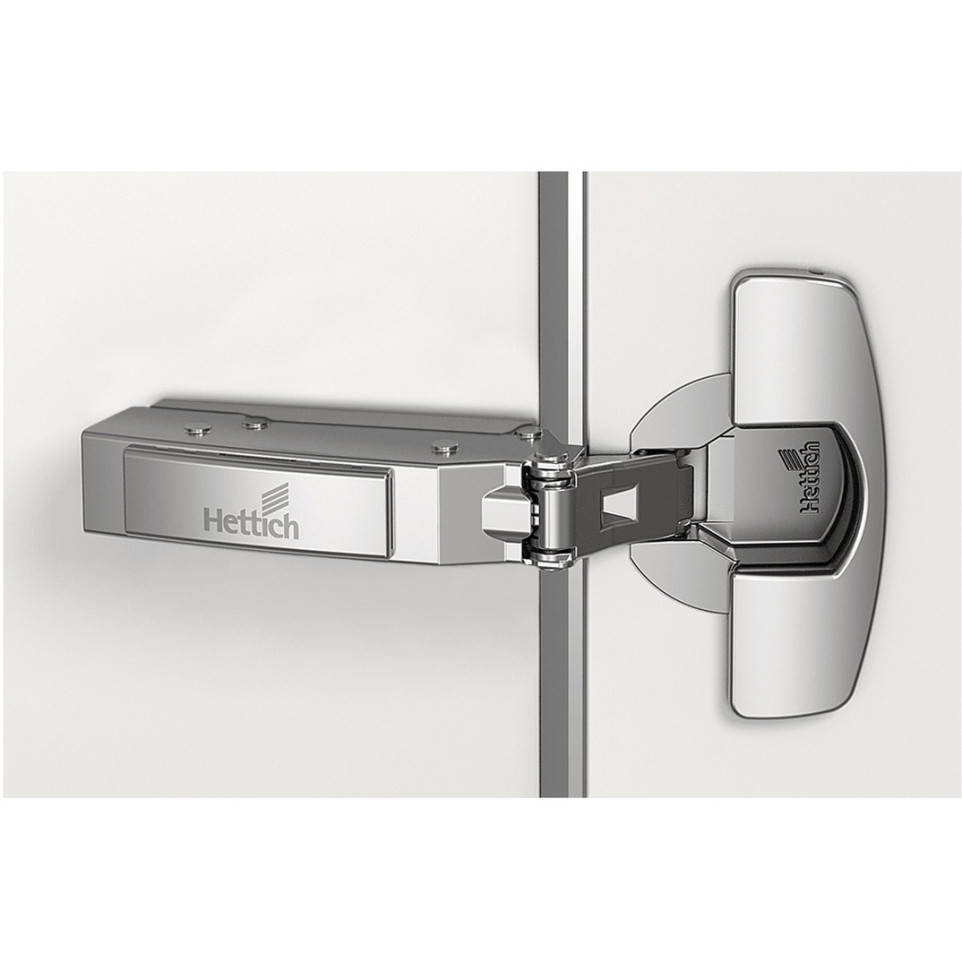

The Hettich Sensys 8646i 110° nickel-plated hinge is designed for overlay doors with thicknesses from 10 to 19 mm. It features integrated soft-close damping and automatic closing, making it ideal for high-quality cabinetry and furniture projects.

Specifications

• Nickel-plated steel construction for durability and corrosion resistance
• Integrated Silent System for soft-closing and self-closing functionality
• 110° opening angle for comfortable access
• Quality level: EN 15570, Level 3
• Suitable for door thicknesses from 10–19 mm

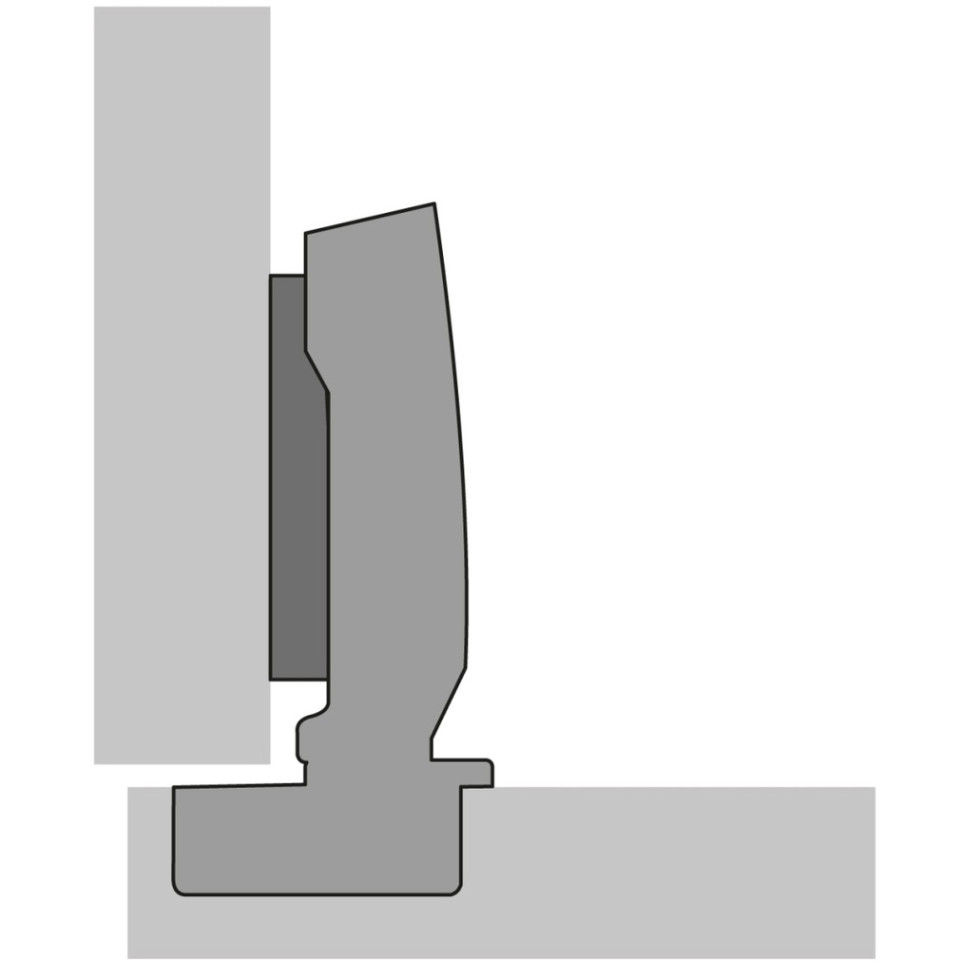

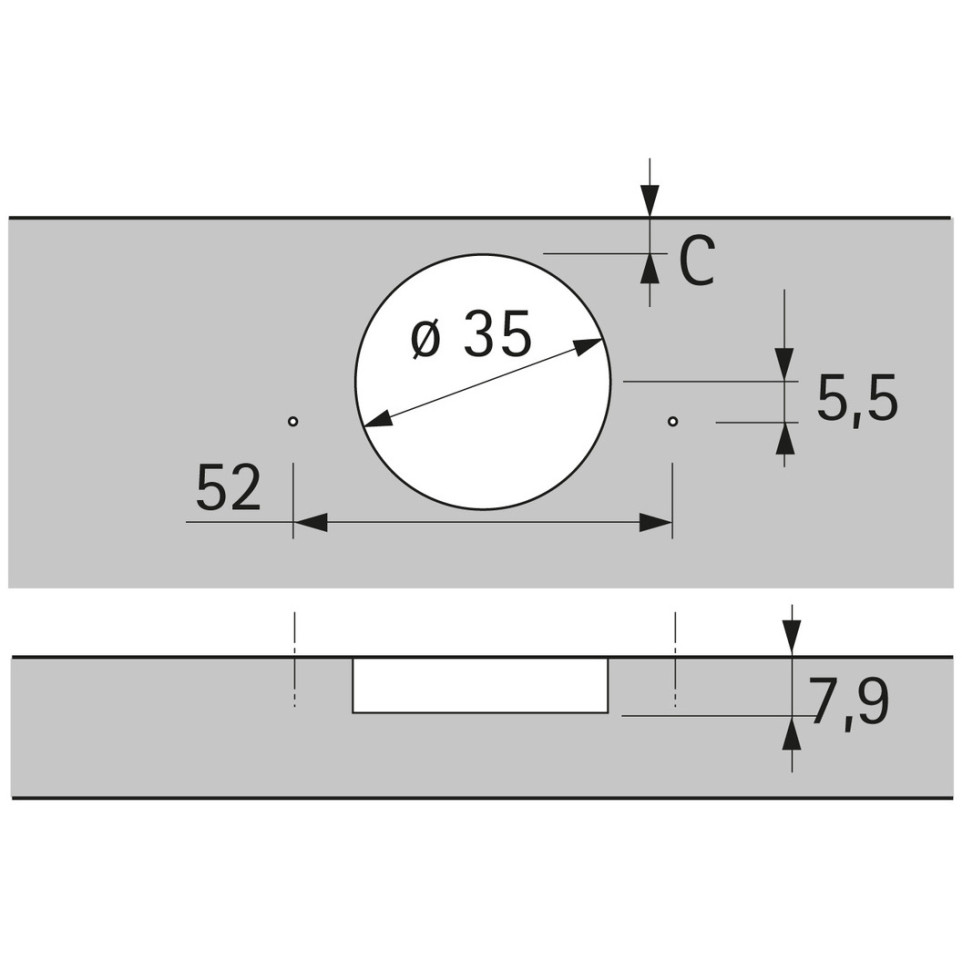

• Overlay hinge type (B 12.5 mm), screw-on installation (TH 52 drilling pattern: 52 x 5.5 mm)
• 35 mm diameter hinge cup, 7.8 mm cup depth
• Integrated overlay adjustment: +2 mm / -2 mm
• Integrated depth adjustment: +3 mm / -2 mm
• Height adjustment possible at the mounting plate

Usage

This hinge is screwed onto thin or standard overlay doors, providing smooth, controlled closing and automatic shut thanks to its built-in damping mechanism. The multiple adjustment features allow precise alignment for professional installation in modern furniture and cabinetry construction.

FAQ

1. What door thicknesses are compatible with the Sensys 8646i hinge?

   • This hinge is suitable for doors with thicknesses ranging from 10 mm to 19 mm.

2. Does the hinge offer soft-closing and self-closing features?

   • Yes, it has integrated damping for soft closing and automatically pulls the door shut.

3. What is the opening angle of this hinge?

   • The Sensys 8646i offers a wide 110° opening angle.

4. How is the hinge installed?

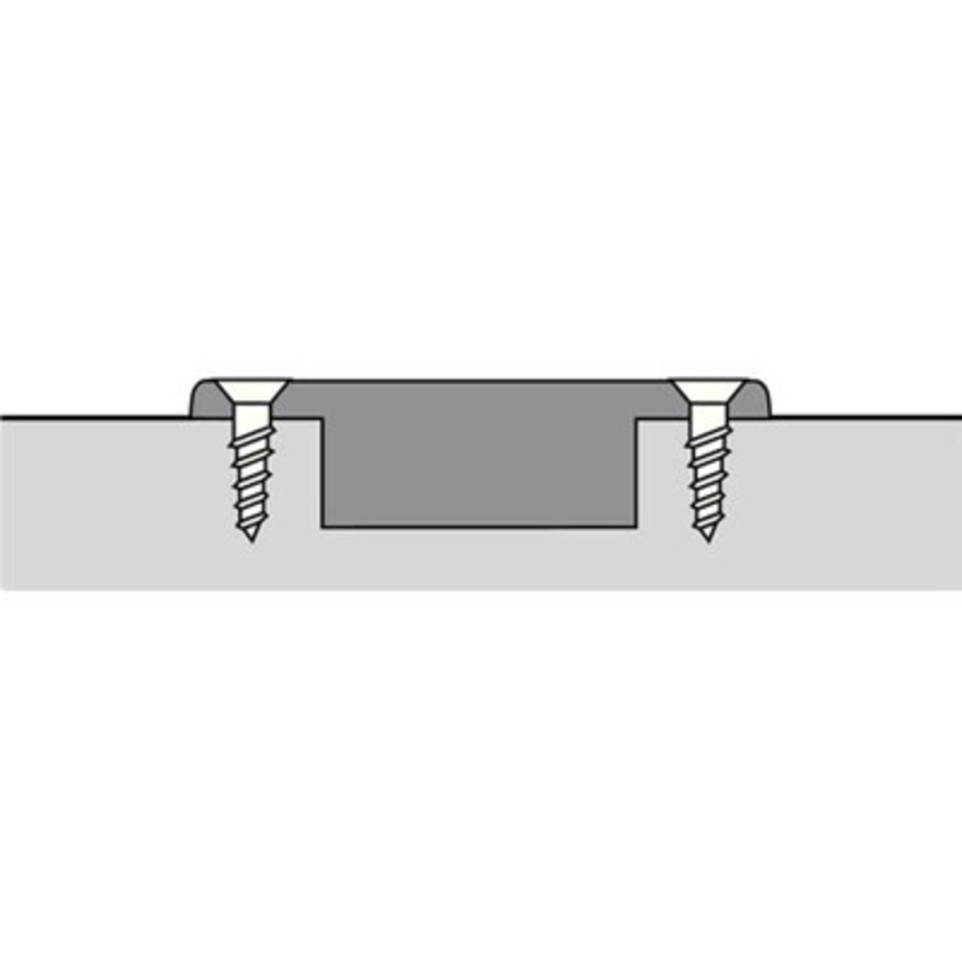

   • It is designed for screw-on installation using the TH 52 drilling pattern (52 x 5.5 mm).

5. Can the overlay, depth, and height be adjusted after installation?

   • Yes, the hinge allows for overlay adjustment (+2 mm / -2 mm), depth adjustment (+3 mm / -2 mm), and height adjustment through the mounting plate.
