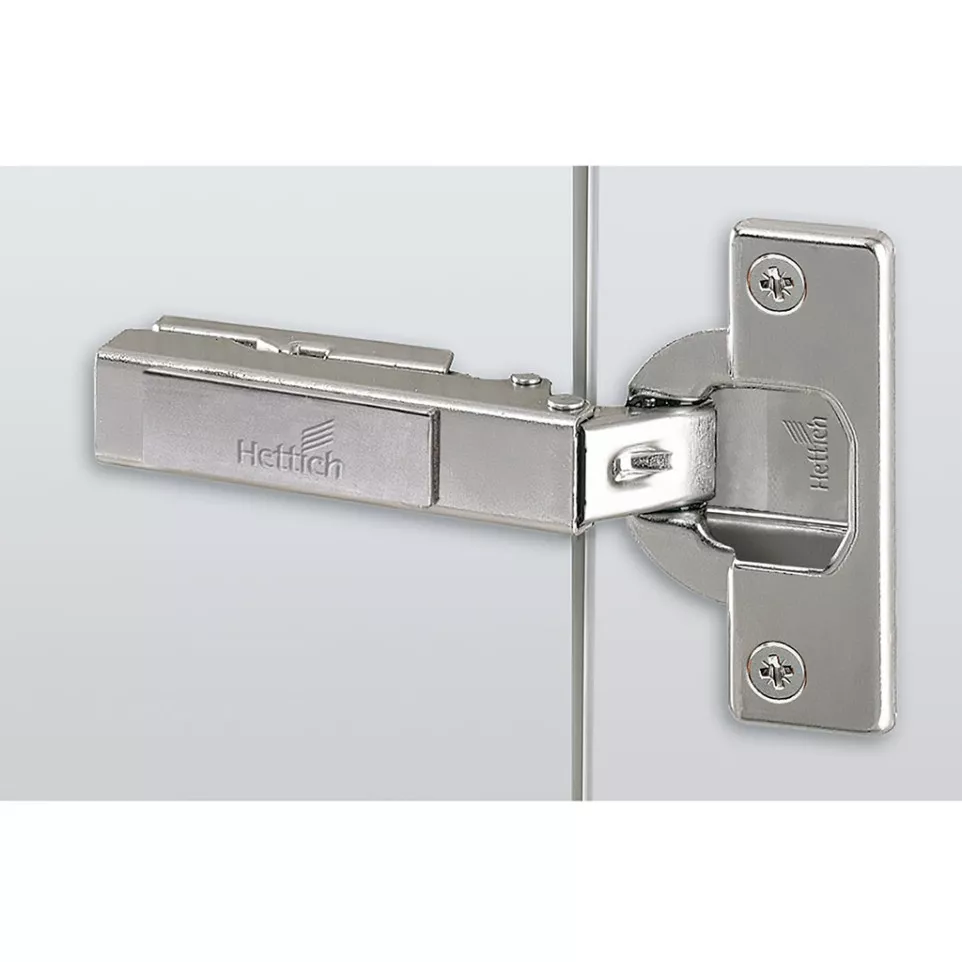

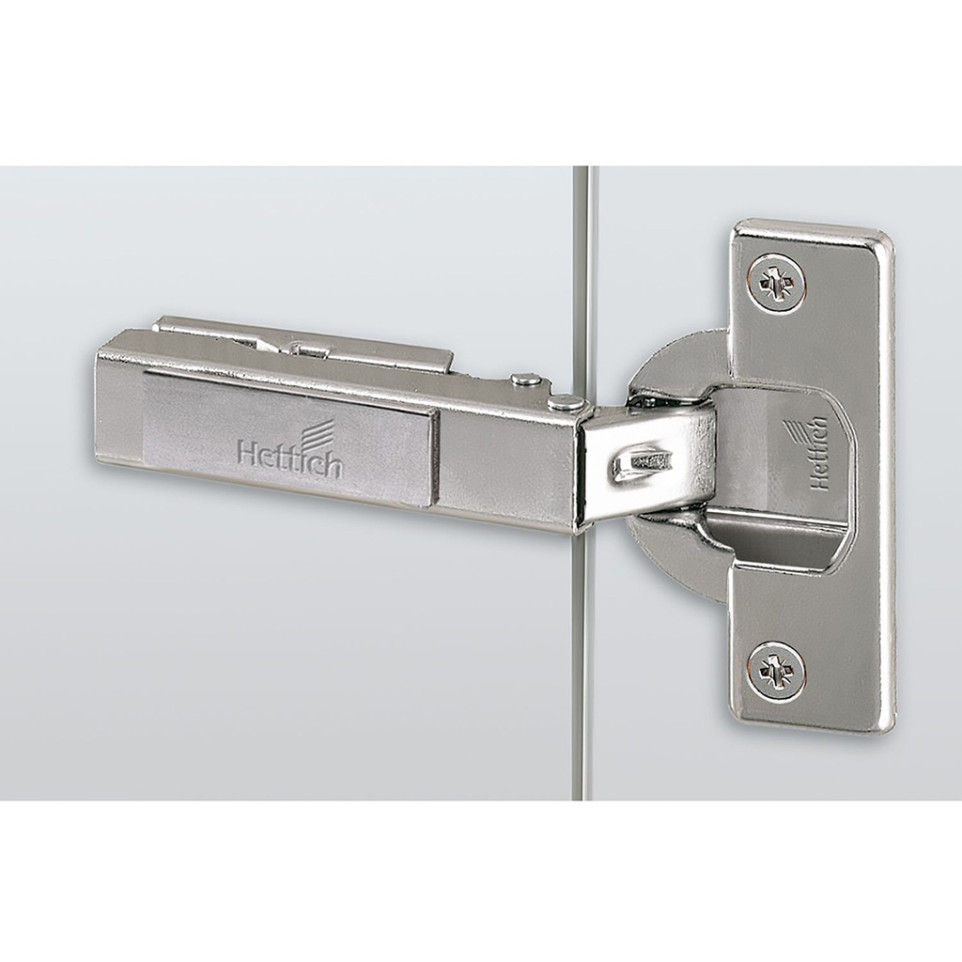

Intermat 9943 110° Nickel-Plated Concealed Hinge (Ø10x11mm) Without Soft Close With Self-Closing for Inset Door

Product

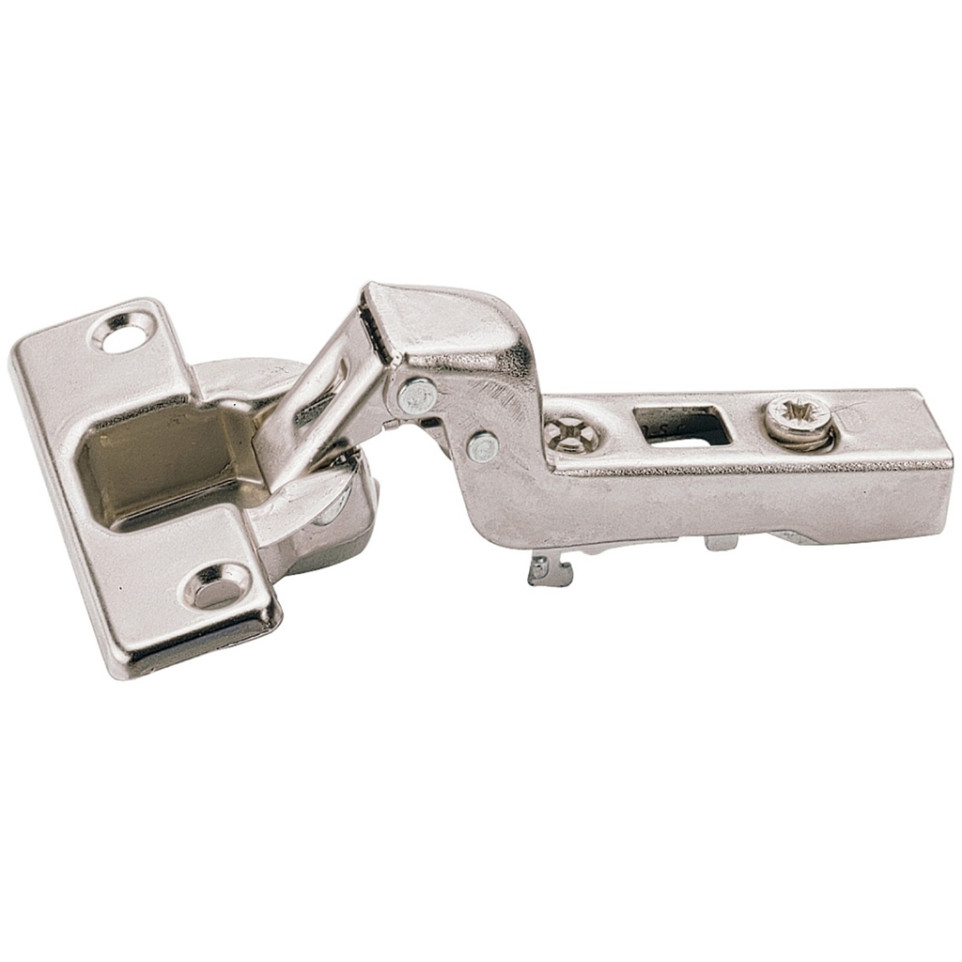

The Charnière Intermat 9943 110° is a nickel-plated stud hinge designed for inset wood doors, offering automatic closing without damping. Suitable for doors 15–25 mm thick, it provides a 110° opening angle for smooth and reliable operation.

Specifications

• Nickel-plated steel construction for enhanced durability
• Certified to EN 15570, Level 3 for quality and performance
• 110° opening angle

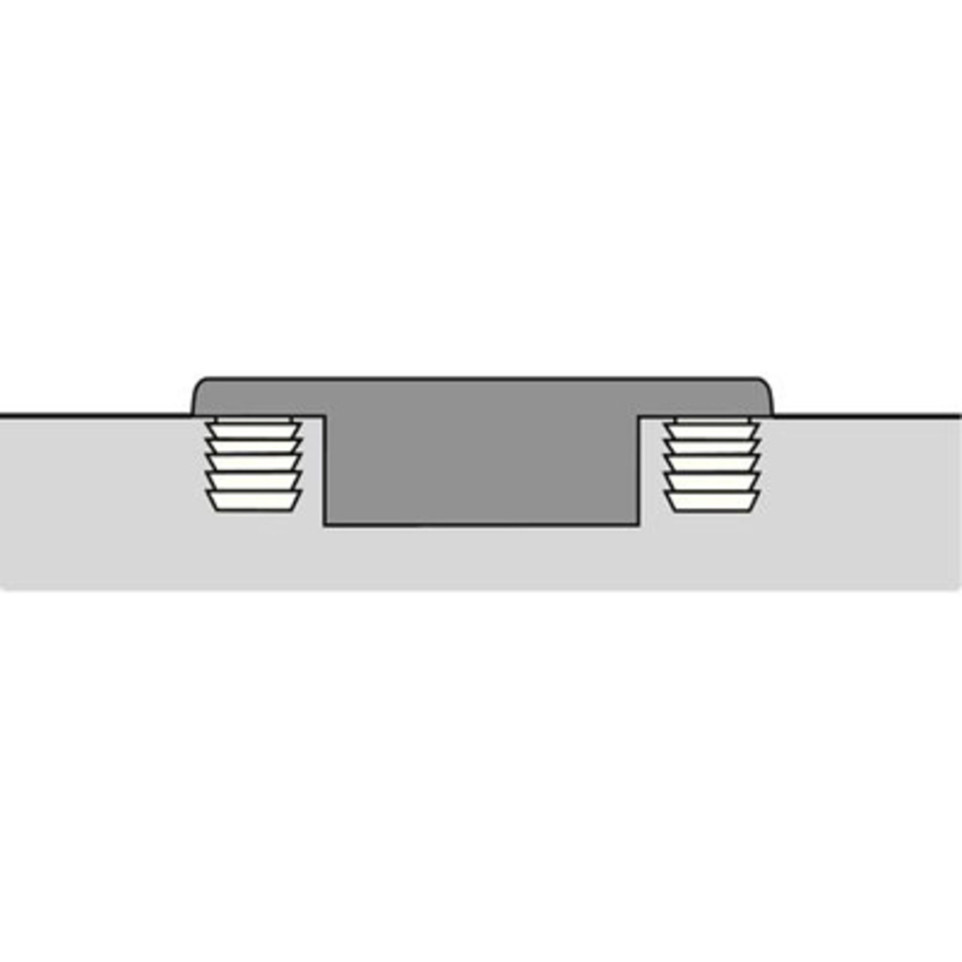

• Press-in mounting system with Ø10 x 11 mm fixing

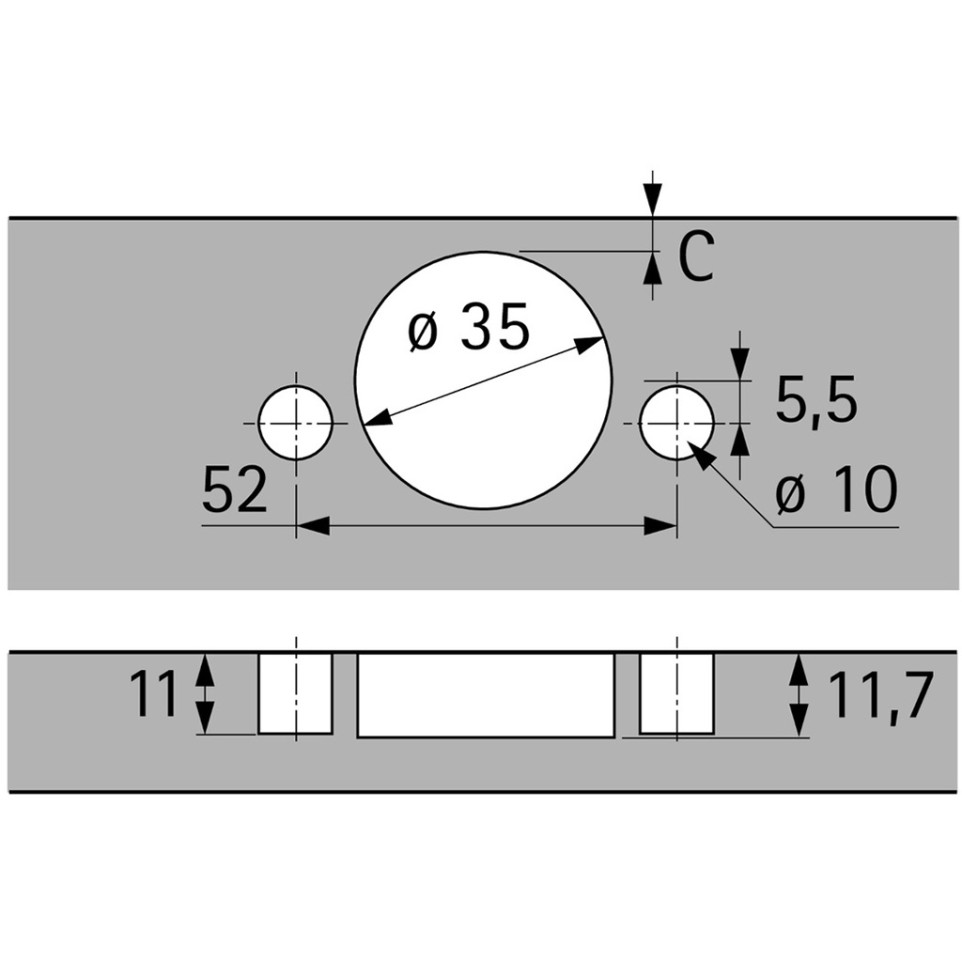

• TH drilling pattern: 52 x 5.5 mm
• Cup depth: 11.6 mm
• Integrated overlay adjustment: +2 mm / -2 mm
• Integrated depth adjustment: +2.5 mm / -1.5 mm
• Height adjustment via mounting plate
• Automatic closing mechanism
• Suitable door thickness: 15–25 mm

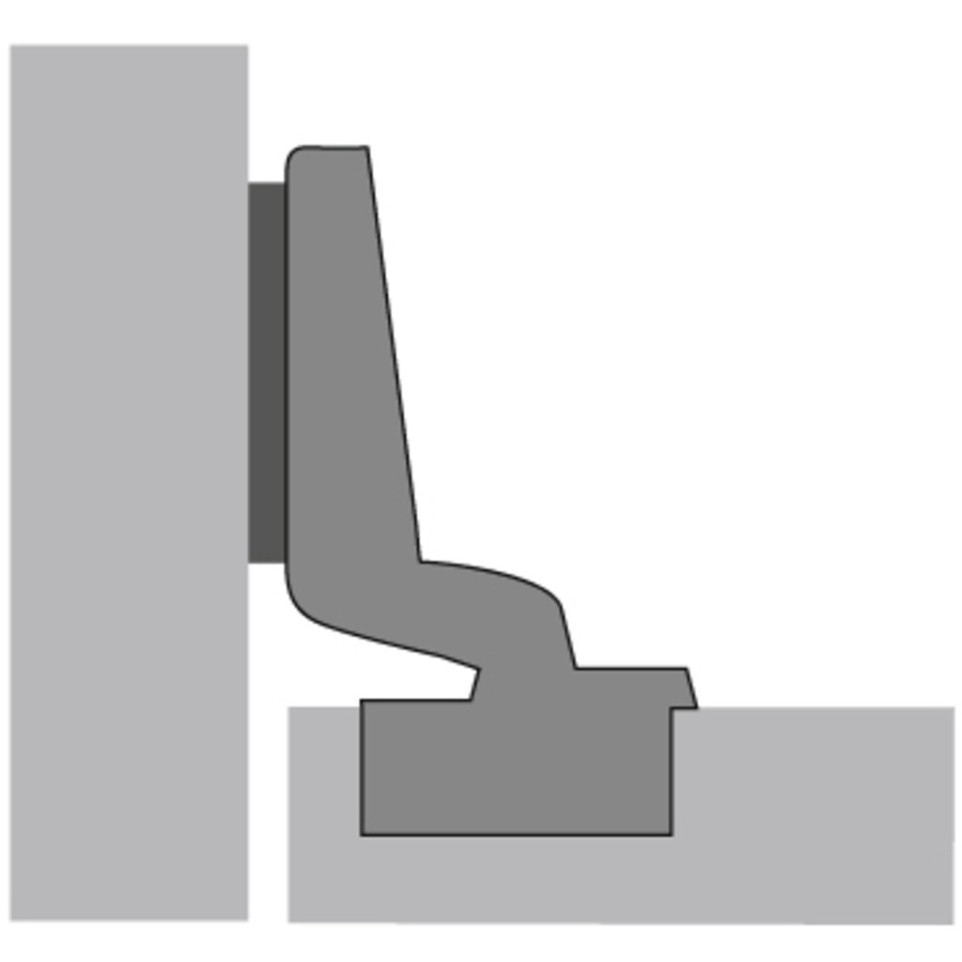

• Inset (recessed) fitting, type B -3.5 mm

Usage

This hinge is pressed into pre-drilled holes in the cabinet door and frame, aligning precisely with the TH drilling pattern. The automatic closing feature secures the door shut once it nears the frame. Fine adjustments for overlay, depth, and height are built in, ensuring a precise fit and operation.

FAQ

1. What door thickness can this hinge accommodate?
   The hinge is suitable for door thicknesses between 15 mm and 25 mm.

2. Does this hinge offer soft-closing technology?
   No, this model closes automatically but does not include damping for soft-closing.

3. Can I adjust the door position after installation?
   Yes, you can adjust overlay (+2 mm / -2 mm), depth (+2.5 mm / -1.5 mm), and height (via mounting plate).

4. What is the mounting method for this hinge?
   It uses a press-in method with a Ø10 x 11 mm mounting hole and a 52 x 5.5 mm drilling pattern.

5. Is this hinge suitable for overlay doors?
   This specific model is designed for inset (recessed) doors.
