Nickel Plated Cruciform Mounting Plate with Screws for Particle Boards (for 2.5mm Drilling) and Height Adjustment

Product

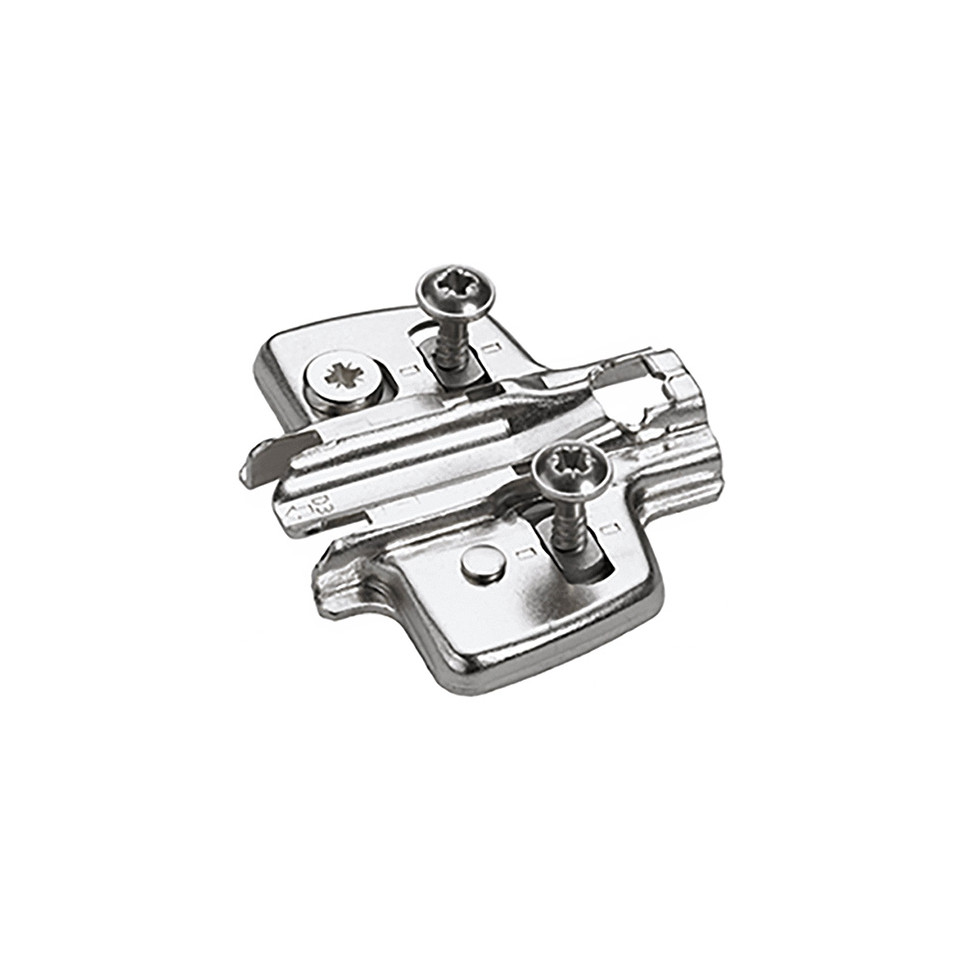

Nickel-plated cruciform mounting plate with direct height adjustment, designed for stud panels with 2.5 mm pilot holes. Compatible with Sensys, Novisys, and Intermat hinge systems, this plate ensures reliable installation and precision alignment in cabinetry assembly.

Specifications

• Nickel-plated steel construction for corrosion resistance and durability
• Direct vertical adjustment range of +2 mm / –2 mm for precise door alignment
• Qualified to EN 15570, level 3 (quality classification)
• Mounts with screws on particleboard panels with 2.5 mm pre-drilled holes

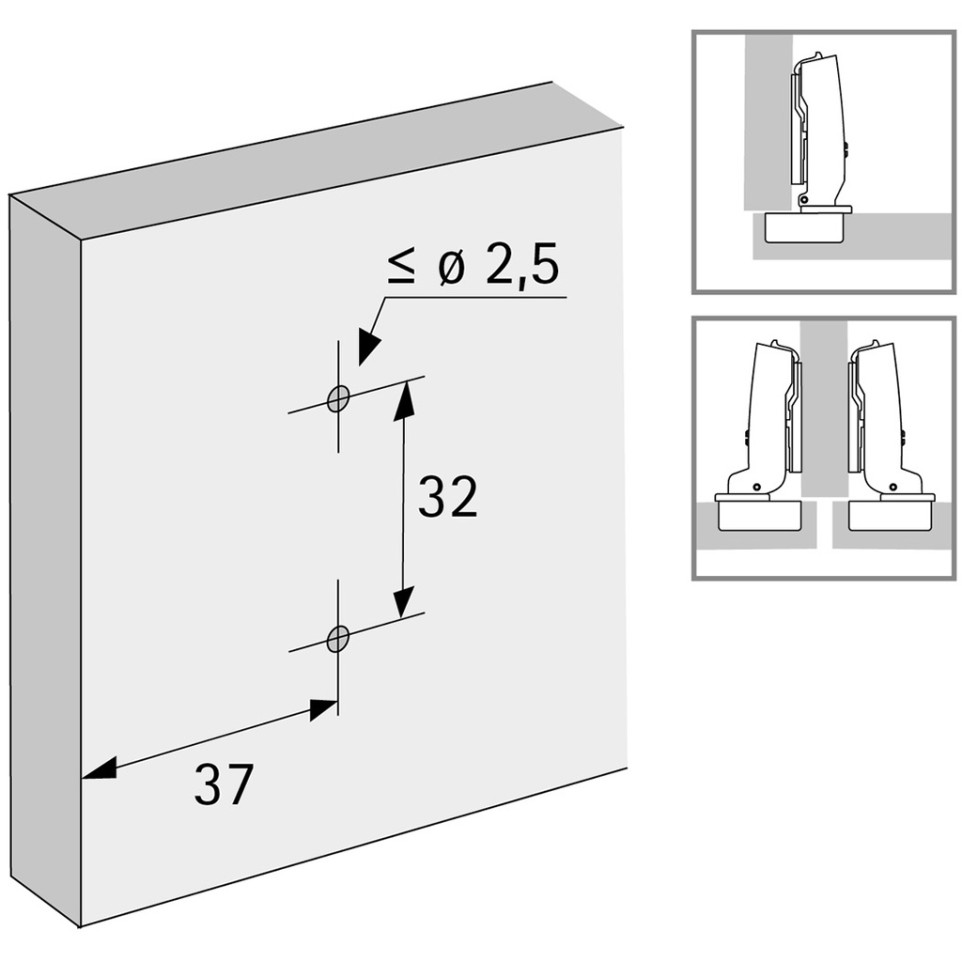

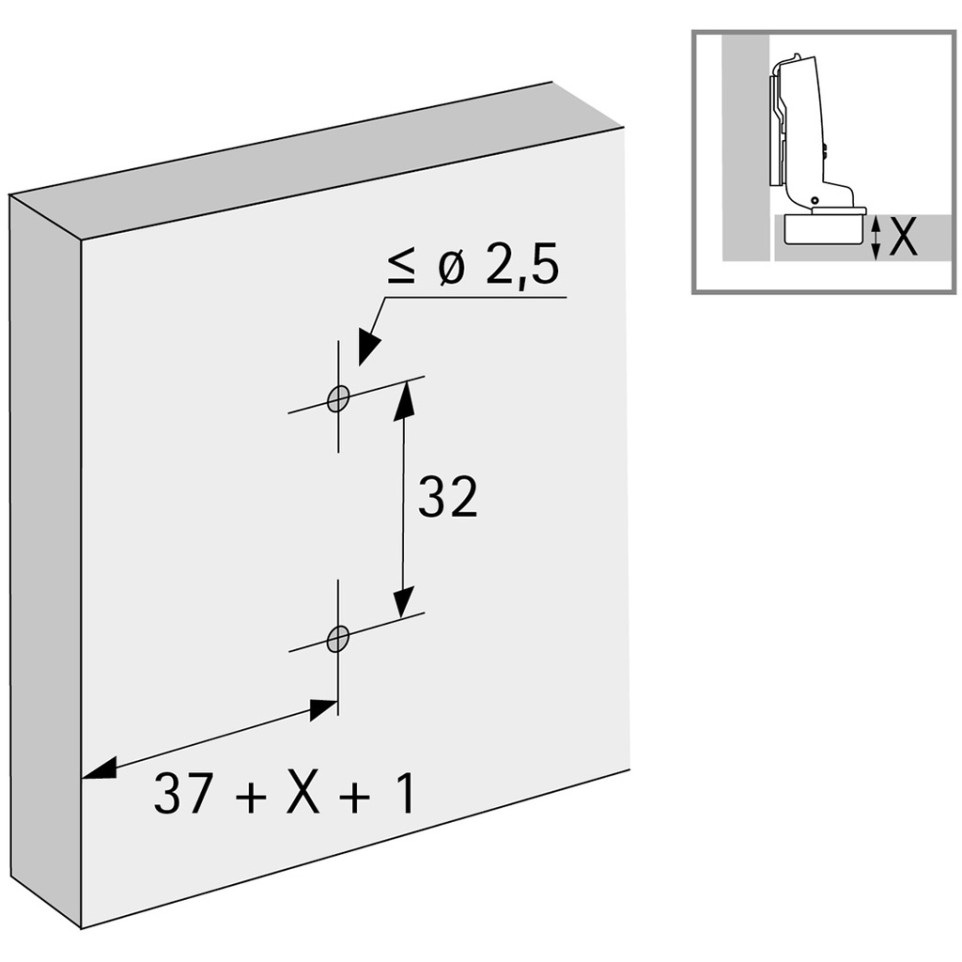

• Screw hole layout: 37 mm x 32 mm grid; mounting distance 5.0 mm

Usage

Install the mounting plate on cabinet panels by aligning to the 37 mm x 32 mm hole grid and securing with screws in 2.5 mm pilot holes. The integrated adjustment allows direct height fine-tuning, ensuring hinges fit perfectly for smooth door operation and alignment.

FAQ

1. What hinge models are compatible with this mounting plate?

   • This mounting plate is designed for Sensys, Novisys, and Intermat concealed hinge systems.

2. How is height adjustment performed?

   • Direct height adjustment is available on the plate itself, with a range of +2 mm to –2 mm, enabling precise door positioning.

3. What panel type and screw size should be used?

   • Use on particleboards with 2.5 mm pilot holes, securing with screws suitable for stud panels.

4. Does the plate meet any industry standards?

   • Yes, it is classified to EN 15570, level 3, indicating robust performance in cabinetry applications.

5. What are the hole spacing dimensions for installation?

   • The mounting plate uses a 37 mm x 32 mm grid for screw placement, with a mounting offset (distance) of 5.0 mm.
