Nickel-plated mounting plate, special screws and Ø5mm sleeves, direct height adjustment, 1.5mm distance / pce

Product

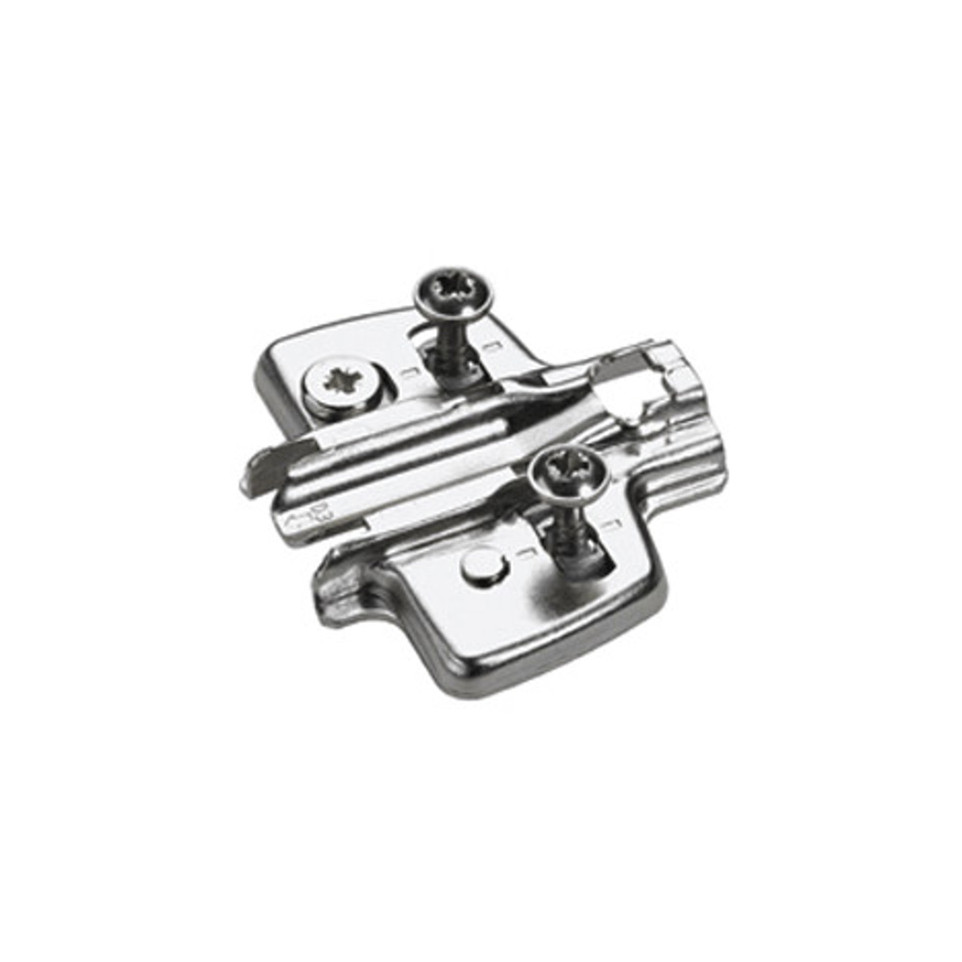

Nickel-plated cruciform mounting plate with direct height adjustment, designed for secure installation with special screws and expansion sleeves (for drilling diameter 5 x 12 mm). Compatible with Sensys, Novisys, and Intermat stud hinge systems.

Specifications

• Nickel-plated steel construction for durability and corrosion resistance
• Direct height adjustment feature for precise alignment
• Rated quality level 3 according to EN 15570 standard

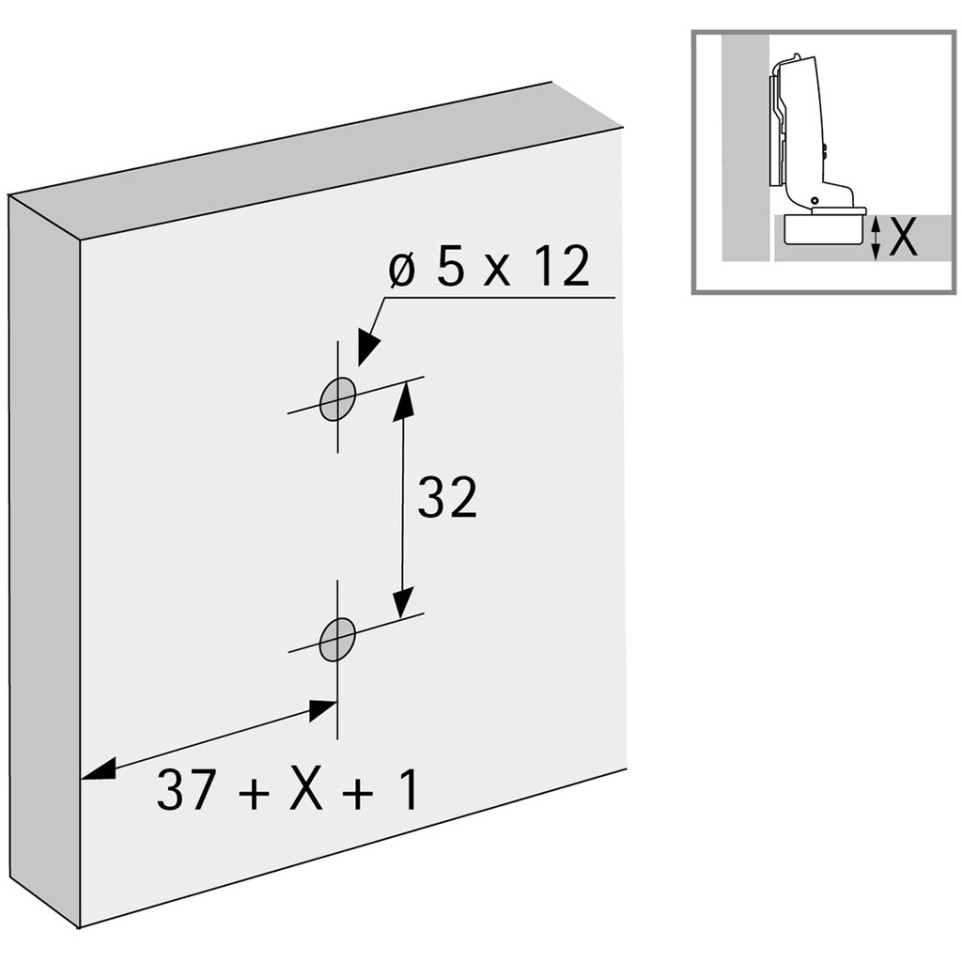

• Compatible with 37 x 32 mm drilling row
• Expansion sleeve mounting for 5 x 12 mm boreholes
• Distance: 1.5 mm; adjustment range: +2 mm / -2 mm

Usage

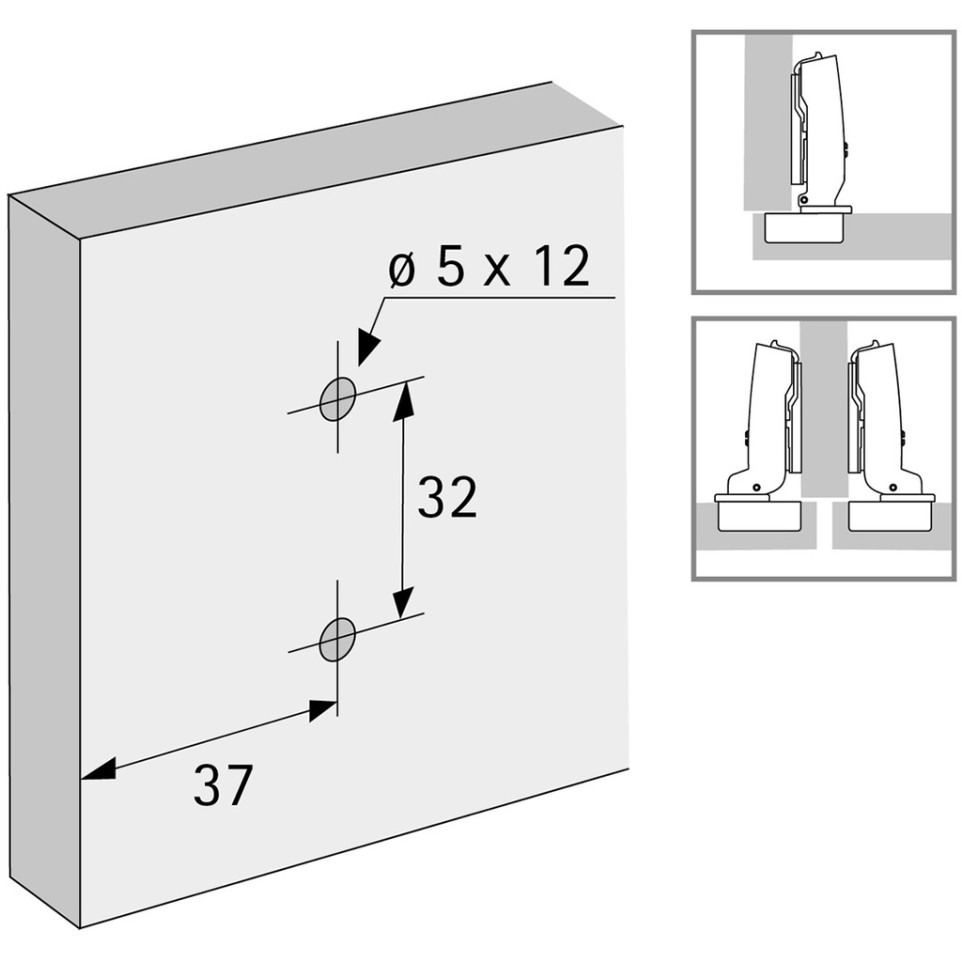

Align the plate with the pre-drilled 37 x 32 mm holes in the furniture body, insert the expansion sleeves into the 5 x 12 mm boreholes, and secure using the supplied special screws. Direct height adjustment allows fine-tuning of hinge position, ensuring optimal door alignment for Sensys, Novisys, and Intermat systems.

FAQ

1. What hinge systems is this mounting plate compatible with?

   • It is designed for use with Sensys, Novisys, and Intermat hinge systems.

2. How is the mounting plate installed?

   • Install using expansion sleeves in drilled holes (5 x 12 mm) and secure with special screws provided.

3. What is the adjustment range of the plate?

   • The height can be adjusted by +2 mm or -2 mm for precise door positioning.

4. What materials are used in this product?

   • The plate is made from nickel-plated steel for enhanced durability.

5. What quality standards does this product meet?

   • It is classified to EN 15570, level 3, for tested quality and performance.
