Product

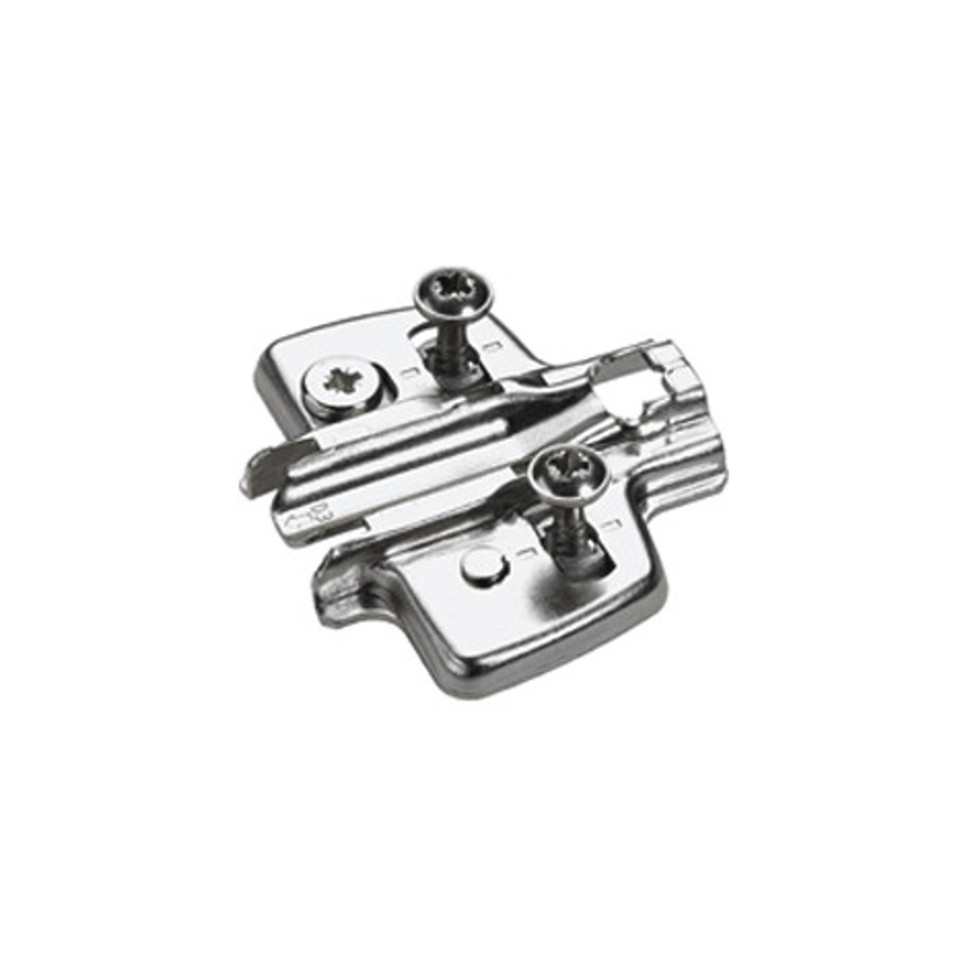

Nickel-plated cruciform mounting plate with direct height adjustment, designed for secure installation of hinges in furniture assembly. Suitable for use with Sensys, Novisys, and Intermat systems for precise positioning.

Specifications

• Nickel-plated steel construction for durability and corrosion resistance
• Direct height adjustment feature with +2 mm / -2 mm range

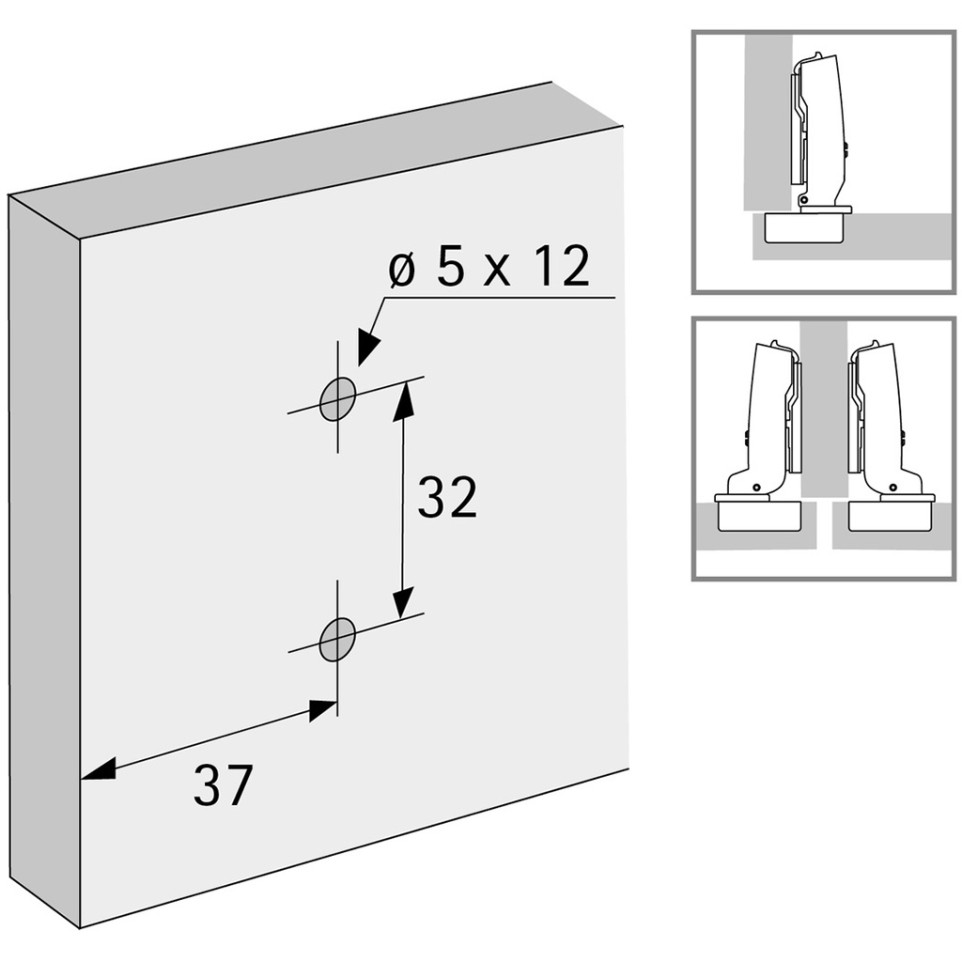

• Compatible with 37 x 32 mm drilling patterns and expansion sleeves for 5 x 12 mm holes
• Classification: EN 15570, level 3
• Mounting distance: 3.0 mm

Usage

This mounting plate is installed using special screws and expansion sleeves, fitting pre-drilled 5 x 12 mm holes. It allows fast and accurate vertical adjustment of the hinge position, ensuring doors align precisely with the cabinet structure. Commonly used for fitting doors with Hettich Sensys, Novisys, and Intermat hinges.

FAQ

1. Which hinge systems are compatible with this mounting plate?
   This mounting plate is compatible with Hettich Sensys, Novisys, and Intermat hinge systems.

2. What is the adjustment range for height?
   The plate offers a direct adjustment range of +2 mm to -2 mm in height.

3. What drilling pattern is required for installation?

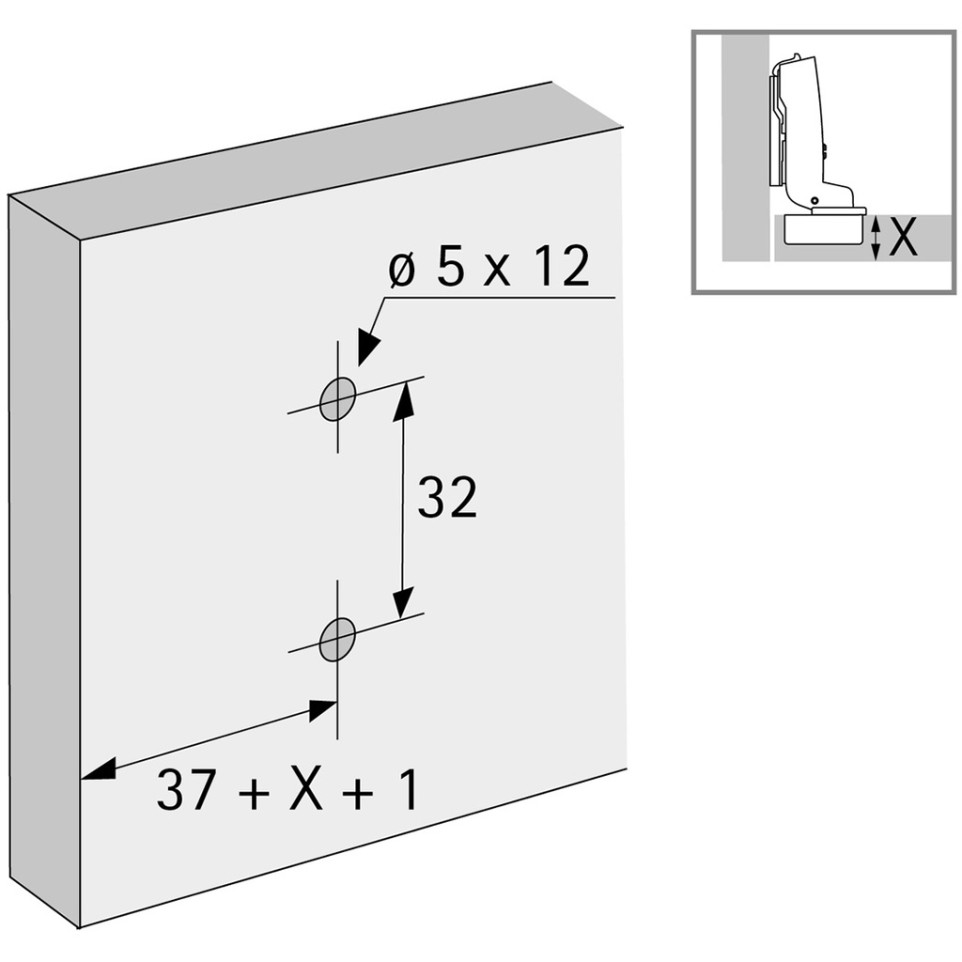

   It is designed for use with a 37 x 32 mm row of holes and requires 5 x 12 mm drilling for the expansion sleeves.

4. What materials is the mounting plate made from?
   The plate is crafted from nickel-plated steel for enhanced strength and corrosion resistance.

5. What quality certification does this plate meet?
   The product is classified according to EN 15570, level 3, ensuring consistent quality and performance.
