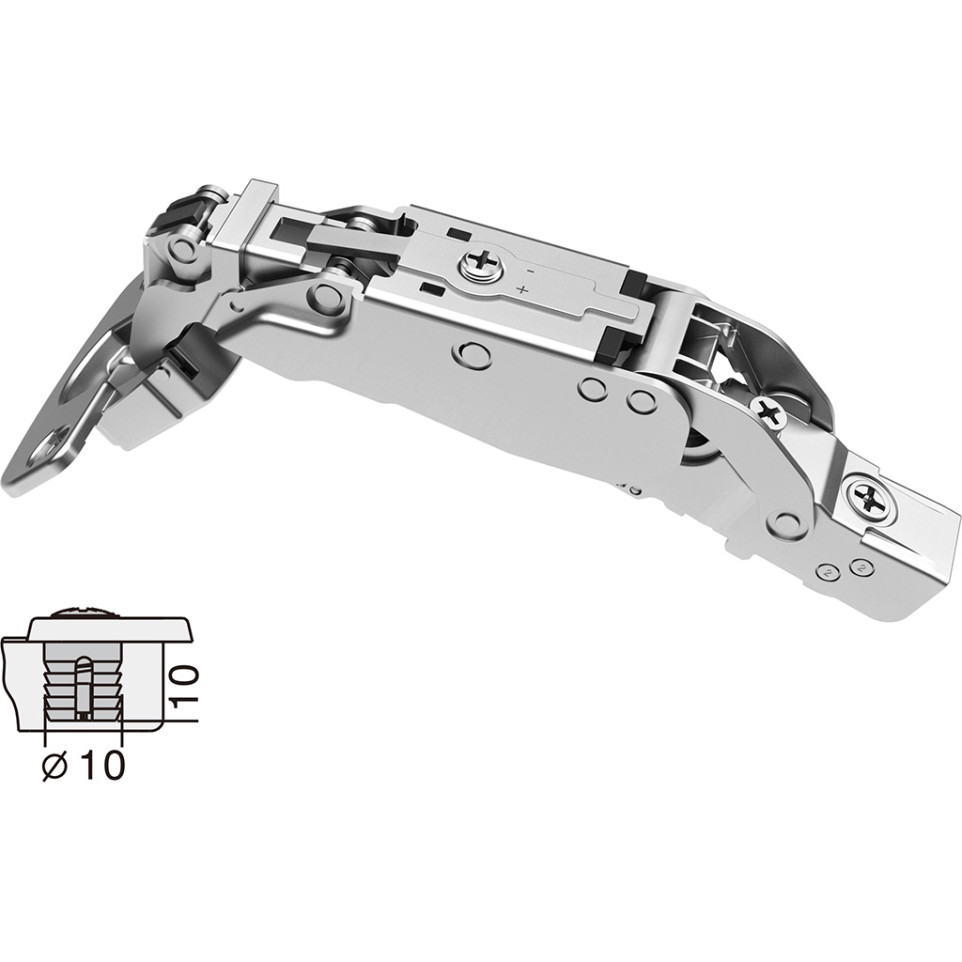

The Pivot-Star 160° nickel-plated hinge with quick 1/4-turn mounting and damping system is designed for overlay cabinet doors requiring smooth, silent, and automatic closure. Ideal for high-use furniture in kitchens, offices, or commercial spaces.
Install the Pivot-Star hinge by drilling a 35 mm hole at the specified pattern, then secure with the quick 1/4-turn mechanism. The integrated damper and automatic closing ensure doors close smoothly and silently, minimizing wear and increasing user comfort.
What is the maximum opening angle of the hinge?
The hinge opens to 160°, enabling wide door access without obstruction.
Is the damping feature adjustable?
Yes, the integrated damper allows adjustment of the soft-close speed to accommodate different door sizes and user preferences.
What door thickness is compatible with this hinge?
It is suitable for doors between 18 and 28 mm thick.
How is the hinge mounted on the cabinet?

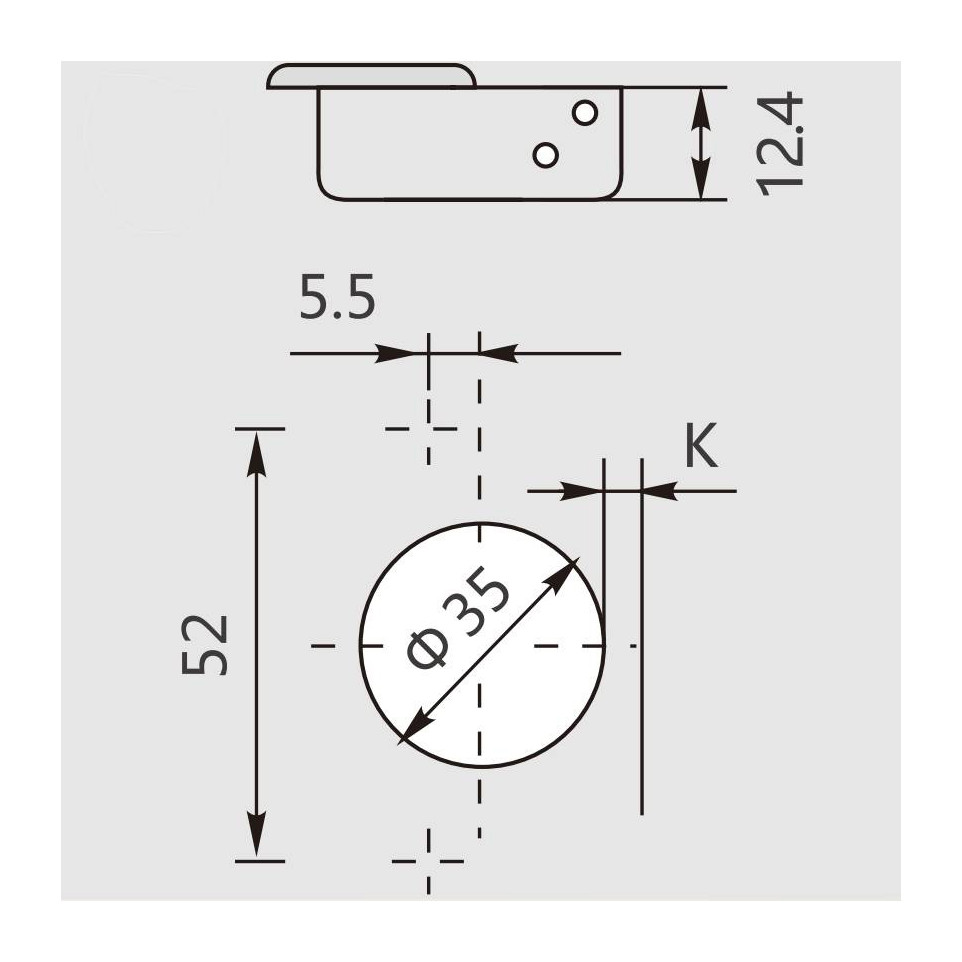

The hinge features a rapid 1/4-turn clip-on system with a 35 mm diameter cup and a drilling pattern of 52 x 5.5 mm for straightforward installation.
Does this hinge have automatic closing?
Yes, it features an automatic self-closing mechanism that securely holds doors closed once moved past a certain angle.
